Поз.
Артикул
Описание

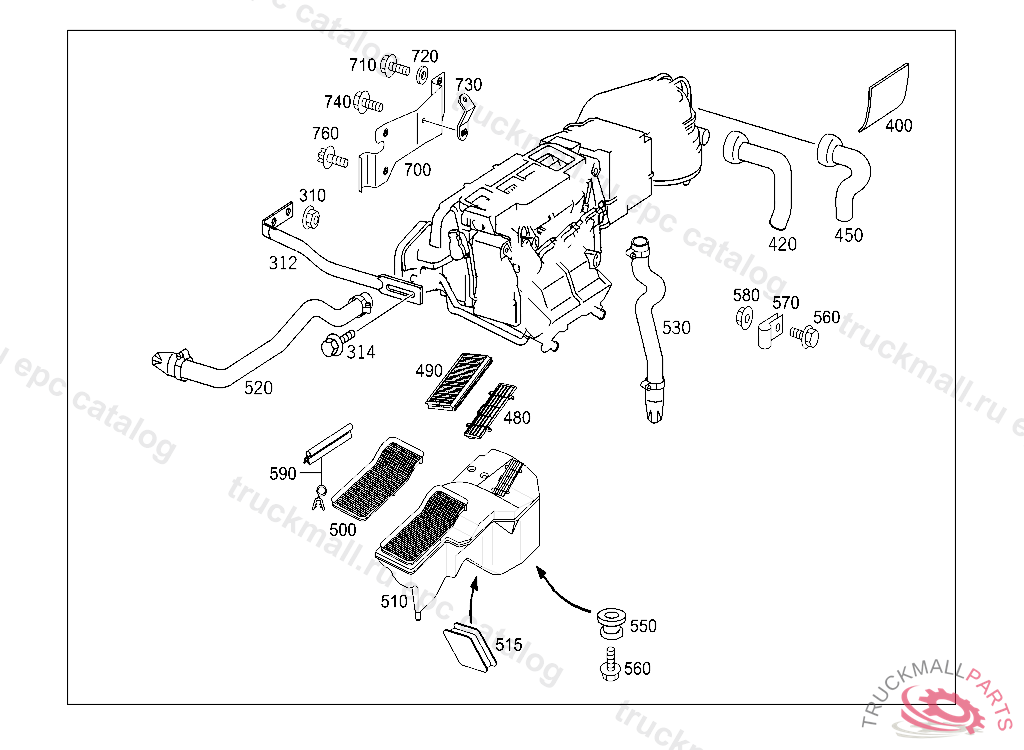

310
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
312
STRUT STAY TO FIRE WALL
312
STAY STAY TO FIRE WALL
312
STAY STAY TO FIRE WALL, X 16166520050428 X 20407720121031
312
STAY
314
SCREW
314
SCREW CONSOLE TO DOOR
400
STRIP LEFT REAR ROOF RAIL, ORDER BY THE METER
420
DRAINAGE PIPE CONDENSED WATER DRAIN,RIGHT
450
DRAINAGE PIPE CONDENSED WATER DRAIN,LEFT
480
COVER AIR INTAKE
490
ACT. CARBON FILTER POLLEN FILTER
500
SEAL AIR INTAKE
510
AIR DUCT ENGINE AIR INTAKE
515
SEAL AIR INTAKE,BOTTOM
520
DRAINAGE PIPE LEFT AIR INTAKE
530
DRAINAGE PIPE RIGHT AIR INTAKE
550
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
560
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
560
SCREW LICENSE PLATE TO BRACKET
560
SCREW PUMP TO BRACKET
570
CLAMP LINE MOUNTING
570
CLAMP , Replaced By: A3829950701
580
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
590
RUBBER SEAL , ORDER BY THE METER
700
INSULATION AIR INTAKE, X 20407720121031
710
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
720
PAD TO SHIELD
730
ANGLE SCREENING PLATE
740
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
760
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
