Mercedes N308765016002 - Болт

G 320 463.250 FROM CHASSIS 144226

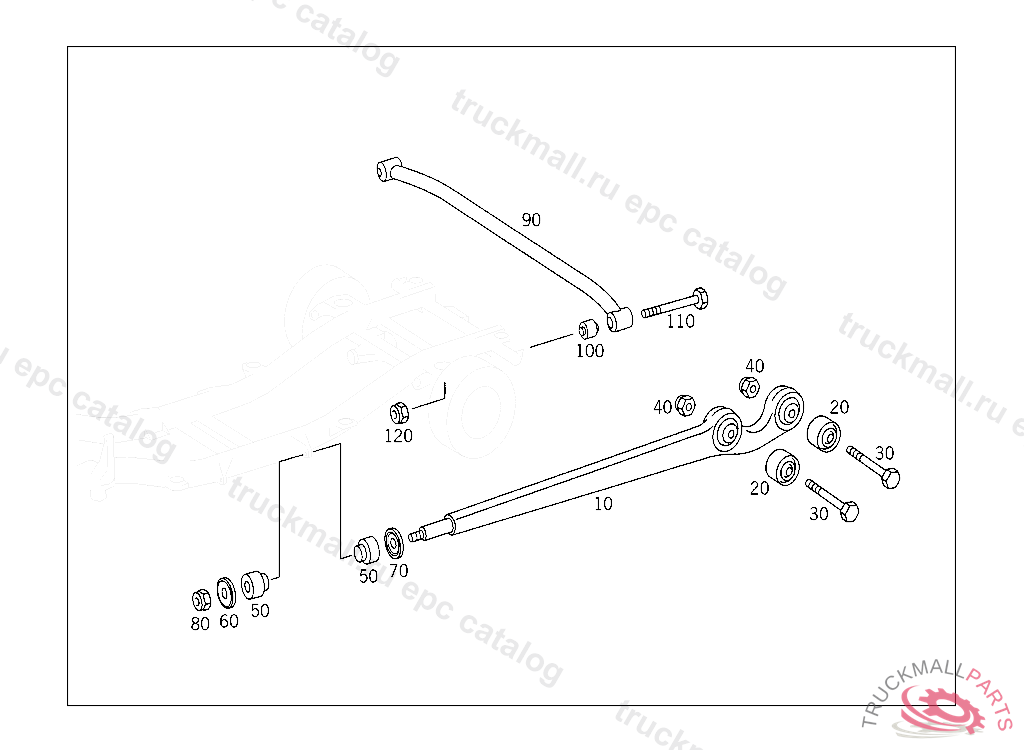

32 SPRINGS, SUSPENSION AND HYDRAULIC SYSTEM - 105 SPRINGS AND SUSPENSION,REAR

Поз.
Артикул
Описание
10
A4613500006
CONTROL ARM LONGITUDINAL CONTROL ARM
20
A4603525014
BEARING
30
N308765016002
HEXAGON HEAD BOLT. SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
40
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
50
A4603520465
RUBBER MOUNTING THRUST ROD TO FRAME
60
A4603520476
WASHER LONGITUDINAL CONTROL ARM TO FRAME
70
A4603520276
WASHER THRUST ROD TO FRAME
80
N913002016002
NUT BEARING BRACKET TO SIDE MEMBER
90
A4613500306
CONTROL ARM
100
A4603520565
RUBBER MOUNTING , 034856 901180
110
N000000007094
HEXAGON HEAD BOLT TRANSVERSE CONTROL ARM TO REAR AXLE
120
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
