Поз.
Артикул
Описание

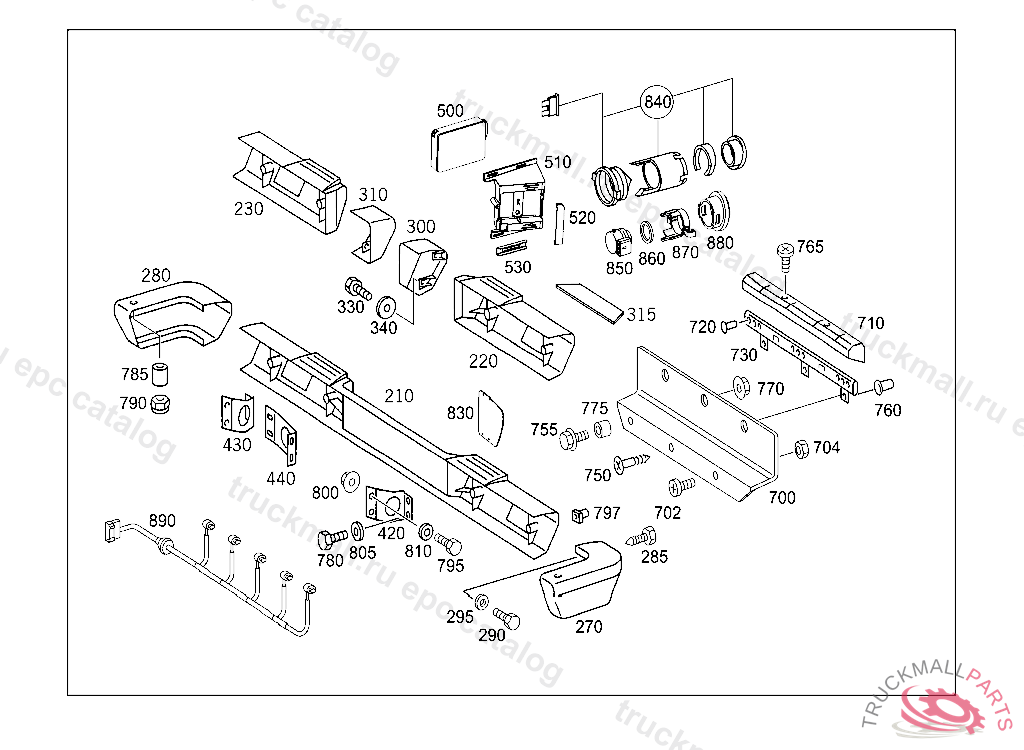

210
REAR BUMPER CENTRAL PART, X 16968420061222 TO BE PAINTED PRIOR TO INSTALLATION
210
REAR BUMPER CENTRAL PART, TO BE PAINTED PRIOR TO INSTALLATION 7167QFT463A0505 DEEP GREY
220
REAR BUMPER LEFT, TO BE PAINTED PRIOR TO INSTALLATION 7167QFT463A0505 DEEP GREY
230
REAR BUMPER RIGHT, 7167QFT463A0505 DEEP GREY
270
CAP REAR LEFT, X 16968420061222 TO BE PAINTED PRIOR TO INSTALLATION
270
CAP IN CASE OF REAR FENDER WIDENIG,LEFT, TO BE PAINTED PRIOR TO INSTALLATION
280
CAP IN CASE OF FENDER WIDENING,REAR RIGHT
280
CAP RIGHT REAR, X 16968420061222 TO BE PAINTED PRIOR TO INSTALLATION
285
TAPPING SCREW CAP TO BUMPER 4,8X19
290
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
295
WASHER PUMP TO CONSOLE
300
CAP INTERIOR,REAR,LEFT
310
CAP INSIDE REAR RIGHT
315
TRUSS STEP ON REAR BUMPER, TO BE ADAPTED DURING ASSEMBLY
420
BRACKET OUTSIDE LEFT, Replaced By: A4638854314
420
BRACKET OUTSIDE RIGHT
430
BRACKET INSIDE RIGHT, X 20949020130404
430
BRACKET INSIDE LEFT, X 17721520080530
440
BRACKET INSIDE LEFT, X 17721520080530
700
BRACKET LICENSE PLATE MOULDING
702
SCREW FRONT LICENSE PLATE TO REAR PANEL DOOR M5X16, J 54020920000518
704
NUT IN CASE OF SUBSEQUENT INSTALLATION
710
COVERING ABOVE LICENSE PLATE LIGHTING
720
PLUG LICENSE PLATE LIGHTING BRACKET
730
BRACKET LICENSE PLATE MOULDING
760
RIVET WEATHERSTRIP
775
SPACER TUBE CLAMP TO BRACKET AND TO PIPE, TO BE ADAPTED DURING ASSEMBLY
780
SCREW APPARATUS PLATE M 6X45
780
HEXALOBULAR BOLT SUCTION LINE TO BRACKET M6X45,V 225942 FOR DIESEL ENGINE ONLY (MS5)
785
SPACER TUBE
790
NUT OIL TANK TO BRACKET
795
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
795
SCREW CLAMP TO EXHAUST PIPE
797
LOCK INTERIOR LAMP TO REAR PILLAR
800
NUT BATTERY CABLE
805
WASHER COMPRESSED AIR LINE TO BRACKET
805
WASHER COMPRESSED AIR LINE TO BRACKET
805
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
810
WASHER RADIATOR TO RUBBER MOUNTING
810
WASHER P.T.O. TO TRANSMISSION
840
LU BACKUP ASSIST FASTENING TO BUMPER, X 16968420070101
850
SENSOR PARKTRONIC SYSTEM (PTS)
850
SENSOR PARKTRONIC SYSTEM, X 16968520070101
860
SPACER RING PARKTRONIC SYSTEM, X 16968420070101
860
BORDER RING
870
TAKE-UP DEVICE PARKTRONIC SYSTEM, X 20407820121031
880
ESCUTCHEON REAR BUMPER,LEFT AND RIGHT
890
WIRING HARNESS PARKTRONIC SYSTEM, REAR, X 16995420061222
