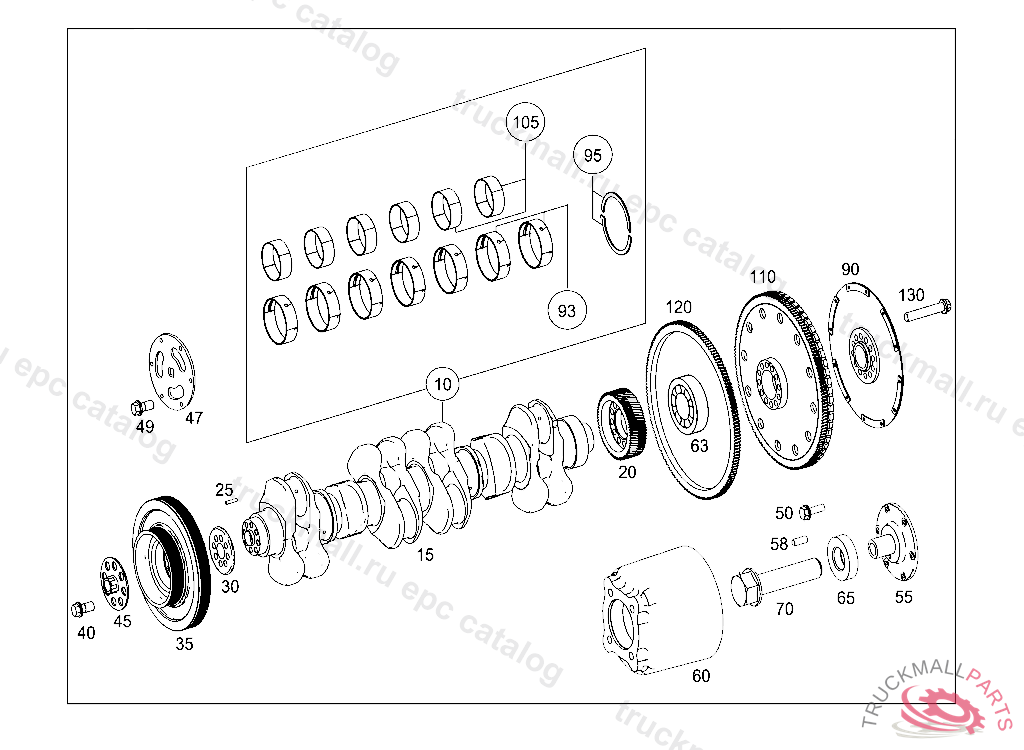

Поз.
Артикул
Описание
10
TS CRANKSHAFT WITH CRANKSHAFT BEARING SHELLS AND CONNECTING ROD BEARING SHELLS
15
CRANKSHAFT LESS BEARING SHELLS, REMAN PART - WHEN YOU ORDER THIS PART PLEASE ADD THE PREFIX"R" IN FRONT OF THE PART NO.
20
CRANKSHAFT GEAR
25
DOWEL PIN
30
COVER PLATE
35
ROTARY VIBRATION DAMPER
35
ROTARY VIBRATION DAMPER
40
SCREW SPLASH RING AND HUB OR DAMPER TO CRANKSHAFT, ONLY REPLACEABLE BY THE SET
40
HEXAGON HEAD BOLT SPLASH RING AND HUB OR DAMPER TO CRANKSHAFT
45
DRIVING DISK
47
FOLLOWER
49
SCREW STOP TO BATTERY CASE
50
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
55
DRIVING FLANGE , UP TO ENGINE 476.981 666288
55
DRIVING FLANGE
58
CYLINDER PIN
60
DRIVING FLANGE
65
THRUST WASHER
70
SCREW TORSION BAR TO AIR-SPRING-BELLOWS SUPPORT M24X2X100
90
FOLLOWER
93
TS MAIN BEARING MAIN BEARING PARTS KIT,STANDARD
95
TS FITTED BEARING LAPPED BEARING PARTS KIT,STANDARD
95
TS FITTED BEARING LAPPED BEARING PARTS KIT,STANDARD
105
TS CONNECTING ROD BEARING PARTS KIT,STANDARD
110
FLYWHEEL
110
FLYWHEEL
110
FLYWHEEL
120
RING GEAR , TAPPED HOLES TO BE MADE ONLY AFTER PART HAS BEEN FITTED
130
SCREW FLYWHEEL AND DRIVE PLATE AT CRANKSHAFT TO A 472 030 02 05
130
TWELVE-POINT HEAD BOLT FLYWHEEL TO CRANKSHAFT
