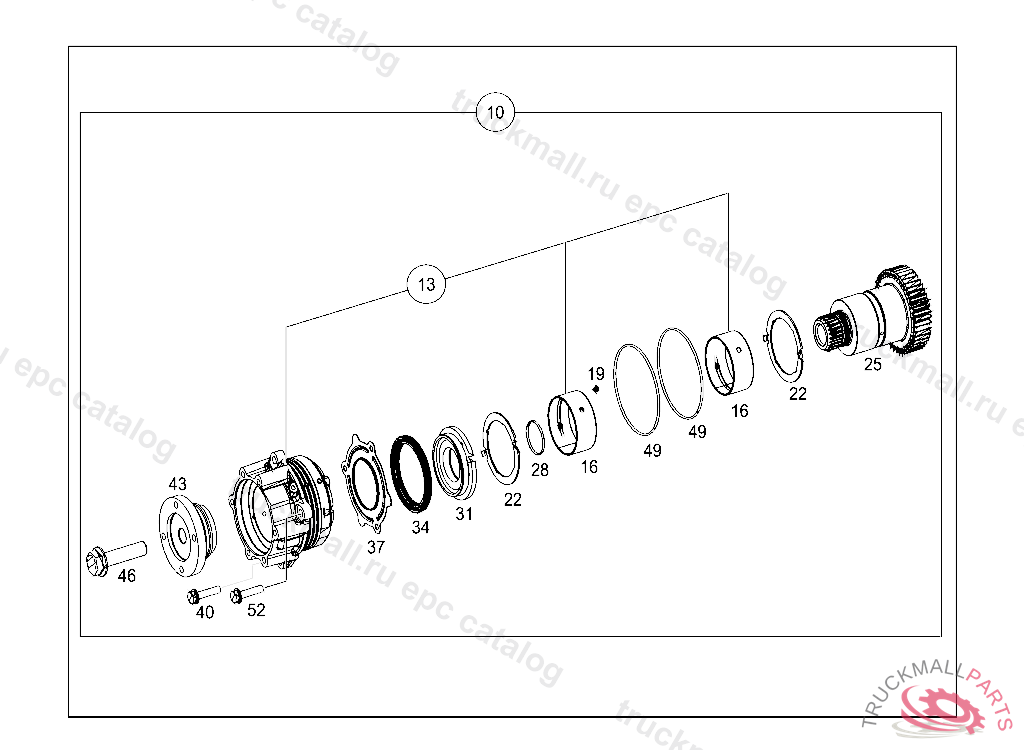

OM 471 LA FREIGHTLINER - 471.911 - 23 SPECIAL INSTALLATIONS
Поз.
Артикул
Описание
10
POWER TAKE-OFF , Replaced By: A4712302323
10
POWER TAKE-OFF
13
FLANGED BLOCK HOUSING
16
BUSHING
19
PLUG EXHAUST SIDE
22
THRUST WASHER
25
DRIVE SHAFT
28
SEAL RING
31
THRUST BEARING RING
34
RADIAL SHAFT SEALING RING
37
CLOSING COVER
40
HEXALOBULAR BOLT AIR CLEANER TO BRACKET
43
DRIVE FLANGE
46
BOLT W FLANGE
49
O-RING
52
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
999
CABLE TIE. LOOM TIE , Replaced By: A0019978490
999
PROTECTIVE SLEEVE , NOT USED
999
VIBRATION DAMPER
