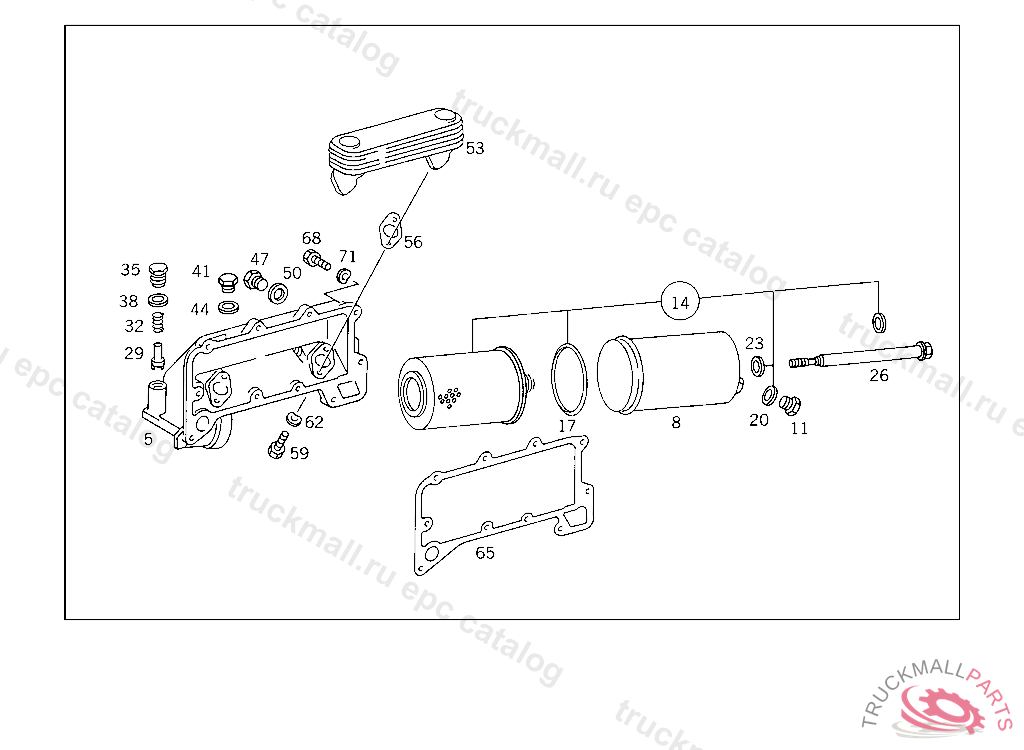

Поз.
Артикул
Описание
5
COVER OIL FILTER,OIL COOLER
8
FILTER BOWL OIL FILTER BOWL
11
SCREW PLUG SHIFTING SHAFT DETENT
11
SCREW PLUG , Replaced By: A4429970030
14
FILTER ELEMENT RANGE OF DELIVERY
14
FILTER ELEMENT OIL FILTER ELEMENT
17
SEAL RING FILTER BOWL TO FILTER HEAD
20
SEAL RING VALVE TO VALVE,K 025179
23
SEAL RING FROM FUEL TANK TO FUEL TANK
26
SCREW
29
VALVE
32
SPRING BY-PASS VALVE
35
SCREW PLUG
38
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
41
SCREW PLUG
44
SEAL RING PREHEATER TO OIL PAN
47
SCREW PLUG , Replaced By: A1119970330
47
SCREW PLUG, FILLING OIL DRAIN
50
SEALING RING. SEAL RING ENGINE BREATHING
53
OIL COOLER
56
GASKET , Replaced By: N917003026003
59
SCREW , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
59
SCREW PLUG SOCKET TO FRAME
62
SPRING WASHER CABLE TO ALTERNATOR
65
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
65
GASKET , Replaced By: A4421880280
68
SCREW CROSS MEMBER TO SIDE MEMBERS
68
SCREW , Replaced By: N304014010023
71
SPRING WASHERTO 000 268 46 01
