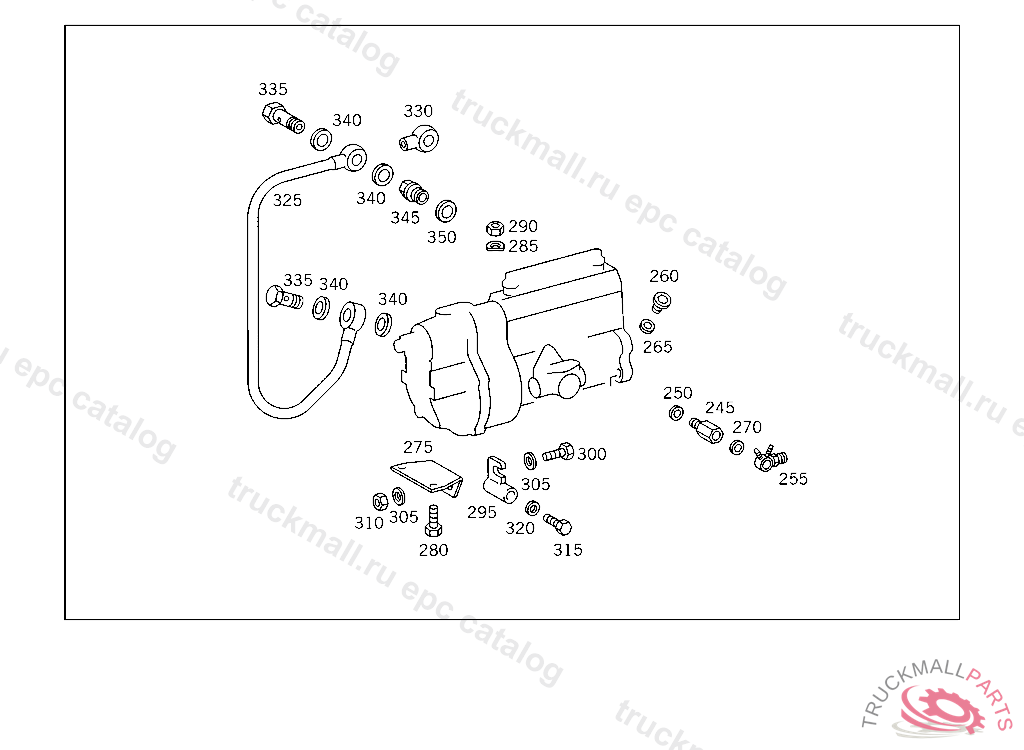

Поз.
Артикул
Описание
245
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
250
SEAL RING INJECTION PUMP
255
BANJO UNION LEAK FUEL LINE CONNECTION
255
INTERMEDIATE PIECE LINE MOUNTING
260
SCREW PLUG OIL PASSAGE PLUG
265
SEAL RING VALVE TO VALVE,K 025179
270
SEAL RING INJECTION PUMP
275
BRACKET
280
SCREW RETAINING ANGLE TO INJECTION PUMP M 10X90
280
SCREW BRACKET TO REAR CROSS MEMBER
285
SPRING WASHERTO 000 268 46 01
290
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
295
BRACKET INJECTION PUMP
295
BRACKET AT INJECTION PUMP
300
SCREW BEARING BRACKET TO SIDE MEMBER
305
WASHER SUPPORT TO FRAME,D 127794
310
NUT SPRING BOLT
315
SCREW , Replaced By: A0029903804
320
WASHER SUPPORT TO FRAME,D 127794
325
LINE (CONNECTING PIPE) 10X2 MM
330
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
335
HOLLOW SCREW OIL DELIVERY LINE TO MANUAL PUMP A8
340
SEAL RING
345
CONNECTING PIPE CONNECTING PIPE TO INTAKE PIPE
350
SEAL RINGTO 376 131 74 01
999
REPAIR KIT INJECTION PUMP GOVERNOR
999
SEAL RING
999
ELEMENT
999
FUEL PUMP
999
PUMP ELEMENT
999
WOODRUFF KEY FLANGE TO SHIFTING TUBE
