300 SE JAPAN
126.024 FROM 09/85
82 ELECTRICAL SYSTEM
001 ADDITIONAL PARTS USED FOR BURGLARY ALARM SYSTEM AND AIRBAG (FOR TYPES 129,140,20

Mercedes A0009904892 - Крепёж

300 SE JAPAN 126.024 FROM 09/85

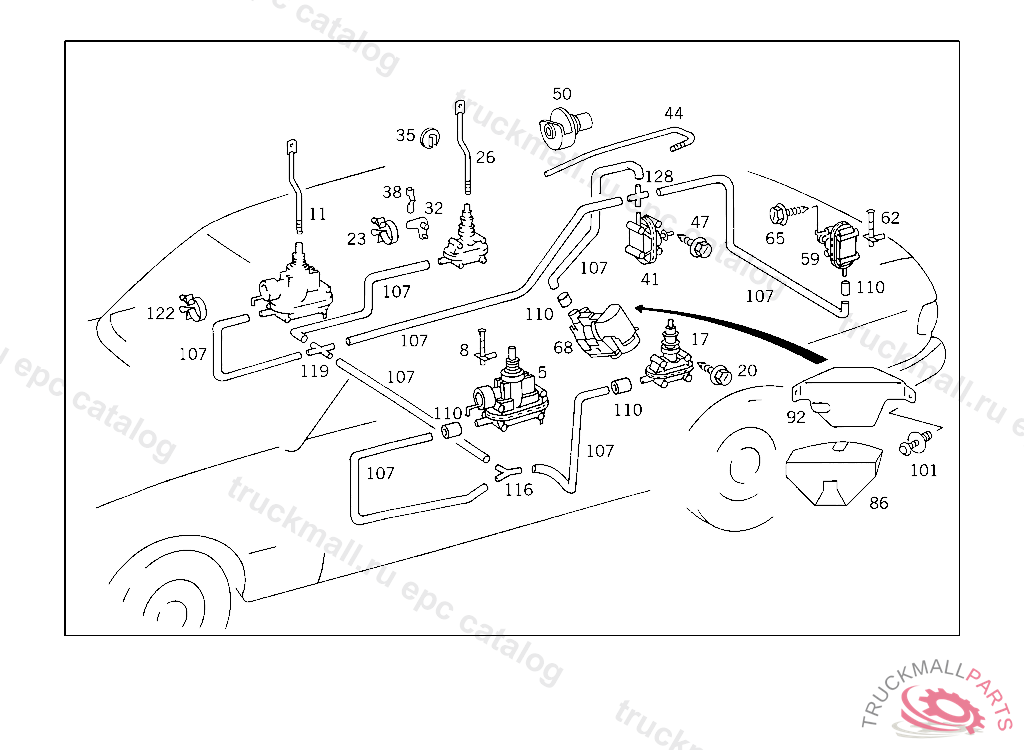

82 ELECTRICAL SYSTEM - 001 ADDITIONAL PARTS USED FOR BURGLARY ALARM SYSTEM AND AIRBAG (FOR TYPES 129,140,20

Поз.
Артикул
Описание
5
A1248001575
ELEMENT FRONT DOOR,F 158288
5
A1248002175
ELEMENT FRONT DOOR,F 158288
5
A0008009475
ELEMENT ,F 158287, Replaced By: A1248002175, +002A1298050444, +002A0079976182
5
A0008008575
ELEMENT ,F 158287, Replaced By: A1248001575, +002A1298050444, +002A0079976182
5
A0008007875
ELEMENT ,F 158287, Replaced By: A1248001875, +002A1298050444, +002A0079976182
5
A1248001875
ELEMENT FRONT DOOR,F 158288
8
A2018001074
LOCK FRONT DOOR VACUUM ELEMENT TO 000 800 85 75
11
A1268050474
ROD FRONT DOOR VACUUM ELEMENT
17
A1248002075
ELEMENT REAR DOOR
17
A1248001775
ELEMENT REAR DOOR
17
A1248002375
ELEMENT REAR DOOR
17
A0008009275
ELEMENT , Replaced By: A1248001775, +002A1298009515, +002A0079976182
17
A0008007975
ELEMENT , Replaced By: A1248002375, +002A1298009515, +002A0079976182
17
A0008007375
ELEMENT , Replaced By: A1248002075, +002A1298059515, +002A0079976182
17
A0008007175
ELEMENT ,F 158287, Replaced By: A1248001775, +002A1298009515, +002A0079976182
20
A0019900336
SCREW ELEMENT ON FRONT AND REAR DOORS
23
A1239882078
CLIP
26
A1268050574
ROD REAR DOOR VACUUM ELEMENT
35
A0009956444
CLAMP , 123.053 024920 153 000548 243 011305
41
A0008008475
ELEMENT FILLER NECK FLAP,A 521201
41
A0018000575
ELEMENT FILLER NECK FLAP,A 355098
41
A0008009075
ELEMENT FILLER NECK FLAP,A 355098
41
A0008008075
ELEMENT FILLER NECK FLAP,A 521201
41
A0008008275
ELEMENT FILLER NECK FLAP,A 521201
44
A1268051574
ROD , Replaced By: A1268050074
44
A1268050074
ROD FILLER NECK FLAP ELEMENT,A 355097
47
A0019900336
SCREW ELEMENT ON FRONT AND REAR DOORS
50
A1248000079
GUIDE , Replaced By: A1248000179
50
A1248000179
GUIDE FILLER NECK RECESS,F 158287
59
A1248001975
ELEMENT REAR PANEL DOOR
59
A0008009375
ELEMENT , Replaced By: A1248001975, +001A1298050444, +001A0079976182
59
A0008008675
ELEMENT , Replaced By: A1248002275, +001A1298050444, +001A0079976182
59
A0008007775
ELEMENT , Replaced By: A1248001675, +001A1298050444, +001A0079976182
59
A1248001675
ELEMENT REAR PANEL DOOR
59
A1248002275
ELEMENT REAR PANEL DOOR
62
A2018001074
LOCK FRONT DOOR VACUUM ELEMENT TO 000 800 85 75
65
A0019900336
SCREW ELEMENT ON FRONT AND REAR DOORS
68
A1248000948
PUMP , Replaced By: A1248002148
68
A1248002248
PUMP , Replaced By: A1248002848
68
A1248002148
PUMP CENTRAL LOCKING MECHANISM, NOT WITH FRONT ORTHOPAEDIC BACKREST
68
A1248001448
PUMP , Replaced By: A1248002148
68
A1248001348
PUMP , Replaced By: A1248002148
68
A1248001148
PUMP , Replaced By: A1248002148
68
A1248000748
PUMP , Replaced By: A1248001448
68
A1248000648
PUMP , Replaced By: A1248001348
68
A1248000348
PUMP , Replaced By: A1248001148
68
A1248000148
PUMP WITH CENTRAL LOCKING MECHANISM CONTROL UNIT, BELOW REAR SEAT,RIGHT,A 245 571
68
A0008001448
PUMP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 875394, Replaced By: A1248000648
68
A0008001148
PUMP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 875394, Replaced By: A1248000748
68
A0008000948
PUMP , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS A 875394, Replaced By: A1248000348
68
A0008000648
PUMP , Replaced By: A1248000148
68
A0008000548
PUMP , Replaced By: A1248000148
68
A1248002848
PUMP INFRARED REMOTE CONTROL & ORTHOPAEDIC FRONT BACKREST
86
A1268050490
CAP BOTTOM AND TOP
92
A1268050914
BRACKET PROTECTIVE CAP
101
A0009904892
RIVET
101
A0009904292
RIVET , Replaced By: A0009904892
107
A0059975982
HOSE ORDER BY THE METER
110
A0079976182
HOSE *** 30 MM
116
A2018050122
DISTRIBUTOR HEATING AND FUEL CONSUMPTION INDICATOR
119
A2018050222
DISTRIBUTOR MAIN FLOOR,RIGHT
122
A1269882078
CLIP
