Главная
›
Mercedes
›
ENGINE
›
OM 447 LA
›
476.979
›

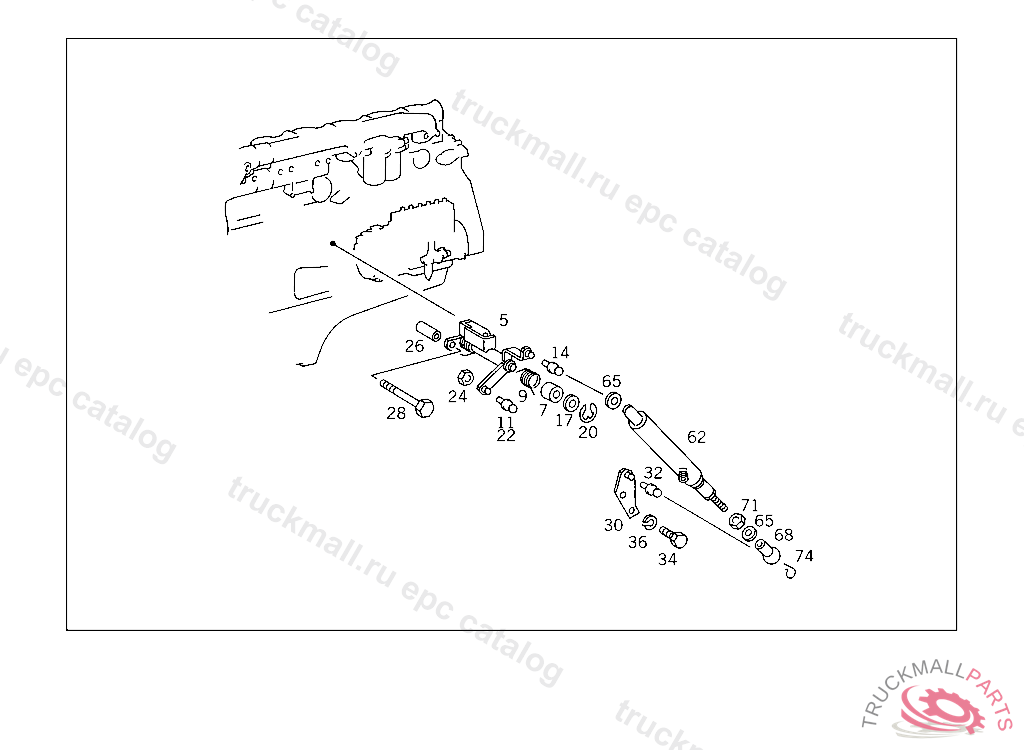

07 INJECTION PUMP
›
135 MANUAL CONTROL IL. 1
Mercedes A4229910022 - ШАРОВОЙ ПОДПЯТНИК
OM 447 LA 476.979
07 INJECTION PUMP - 135 MANUAL CONTROL IL. 1
Поз.
Артикул
Описание
5
A4760700040
BRACKET CONTROL
9
A4039931110
SPRING
11
A4759910015
BALL PIVOT
14
N071803010209
BALL PIVOT , Replaced By: A3129910120
17
N000125013012
WASHER SUPPORT TO FRAME,D 127794
20
N006799009003
LOCK PLATE
26
A4759910040
SPACER TUBE
28
N000931010399
SCREW STRAP TO BRACKET
30
A4750700221
LEVER AT INJECTION PUMP
32
A4759910015
BALL PIVOT
34
N000933006148
SCREW BRACKET TO CONSOLE
36
N000127006206
LOCK WASHER CLAMP TO BRACKET
62
A0000721512
CYLINDER INJECTION PUMP CONTROL
62
A0000721812
CYLINDER , Replaced By: A0000721512
65
A3073010060
SEAL RING MODULATION PRESSURE CONTROL
68
A4229910022
BALL SOCKET
68
A4769917022
BALL SOCKET
71
N900071008200
NUT , Replaced By: N900071008100
74
N071805010402
SECURING CLIP. CIRCLIP ACCELERATOR CONTROL
