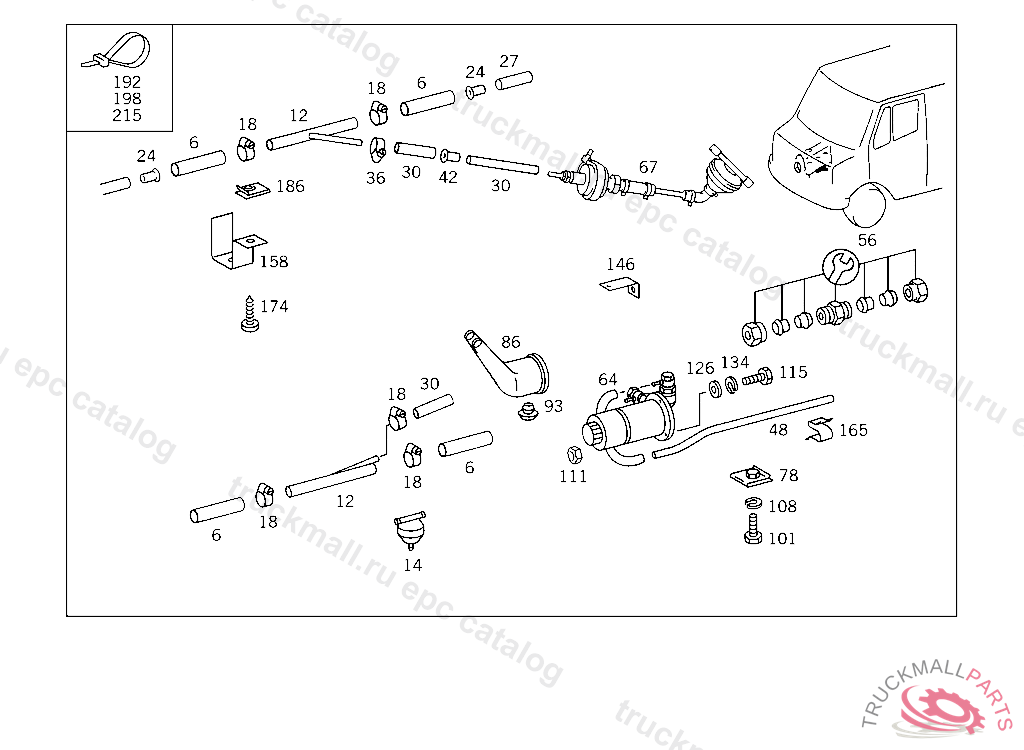

Поз.
Артикул
Описание
6
HOSE HAND BRAKE VALVE BLEEDING 100 MM, ORDER BY THE METER
6
HOSE FUEL LINE TO TANK 13.5 X 7.5 MM, ORDER BY THE METER
6
HOSE DE-AERATION B8X12,5 218304 ORDER BY THE METER
12
T-FITTING FUEL RETURN LINE
12
DISTRIBUTOR DISTRIBUTOR CONNECTION,P 159647
14
CONNECTOR DISTRIBUTOR CONNECTION
18
CLAMP LINE CONNECTION
18
LOOM TIE VENT VALVE TO FUEL TANK
24
SLEEVE LINE CONNECTION
27
HOSE FUEL RETURN LINE
30
HOSE , ORDER BY THE METER
30
HOSE , Replaced By: A1074763126
30
HOSE , Replaced By: A1074763726
36
CLAMP , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0059972790
42
SLEEVE LEAK LINE
48
HOSE FROM WARNING INDICATOR TO AIR CLEANER, ORDER BY THE METER
56
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
64
PUMP
67
AUXILIARY PUMP
67
AUXILIARY PUMP
78
SUPPORT FRONT SUPPORT
86
BOOT
93
PLUG TO PLUG THE BORES
101
SCREW PUMP TO BRACKET
101
SCREW , Replaced By: N304017006016
108
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
111
NUT PUMP TO BRACKET
111
NUT , Replaced By: N913004006001
115
SCREW , Replaced By: N304017008021
115
SCREW PIPE CLAMP
126
WASHER BRACKET TO LEFT SIDE MEMBER
126
WASHER , Replaced By: N009021008213
134
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
146
BRACKET FUEL LINE TO CROSS MEMBER
146
BRACKET , Replaced By: A4064760036
158
BRACKET BRACKET TO CROSS MEMBER
165
CLIP WIRE CABLE TO AIR CLEANER
174
SHEET METAL SCREW RELAY TO APPARATUS SUPPORT,K 182153K 239549
174
SHEET METAL SCREW BRACKET TO CAB FLOOR
186
CLAMPING NUT BRACKET TO FRAME
192
LOOM TIE
192
LOOM TIE , Replaced By: A1149970590
198
LOOM TIE
215
LOOM TIE LINE MOUNTING
999
BRACKET FUEL LINE TO FRAME
999
BRACKET FUEL-OIL PUMP
