Mercedes N000125006421 - КРЕПЕЖ

0M 602 602.938

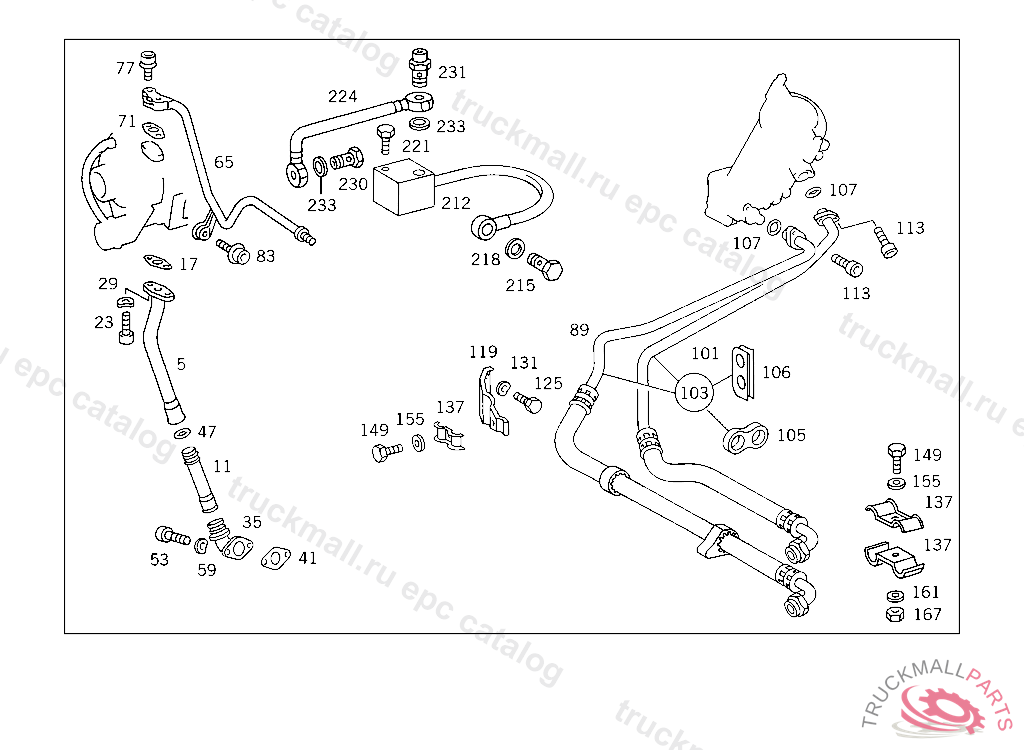

15 ELECTRICAL EQUIPMENT - 105 ATTACHMENT PARTS,HEATER PLUGS,AND SPEED SENDER UNIT IL. 2

Поз.
Артикул
Описание
89
A6021801030
OIL LINE FEED
101
A6021801430
OIL LINE RETURN
107
A0129975648
SEAL RING OIL LINE TO OIL FILTER
113
N000912006064
SCREW
119
A6031870740
BRACKET OIL LINE TO CRANKCASE
125
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
125
N000933006103
SCREW , Replaced By: N304017006018
131
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
137
A6031870044
CLAMPING PIECE OIL LINE TO BRACKET, 962133 N 000001 P 000001
149
N000933006121
SCREW , Replaced By: N304017006020
149
N304017006020
SCREW LICENSE PLATE TO BRACKET
155
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
161
N000433006405
WASHER BRACKET TO HEAT SHIELD
167
N000934006007
NUT BALL PIVOT TO LEVER
