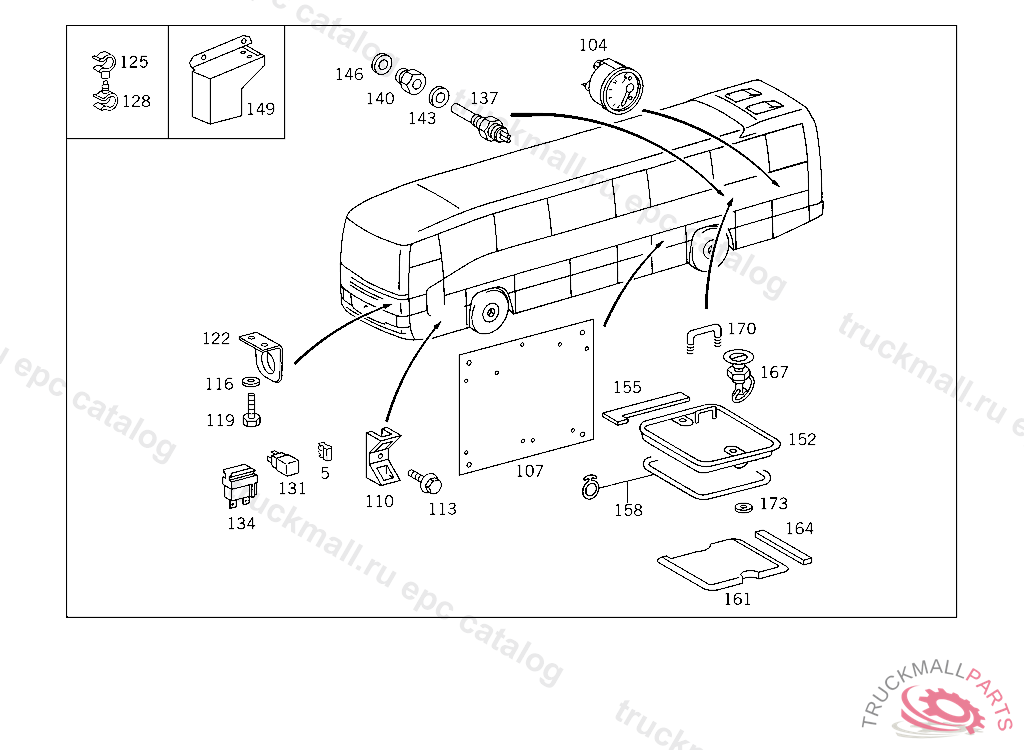

Поз.
Артикул
Описание
5
FUSE
5
FUSE ELECTRICAL COMPARTMENT 20 A
5
FUSE
5
FUSE LINK IN CASE OF SUBSEQUENT INSTALLATION
5
FUSE
5
FUSE GUARD CIRCUIT "F 2-4,9-14,16-19,23,28,30,32"
5
FUSE MODULE 7.5 A
5
FUSE
5
FUSE , Replaced By: N072581000302
5
FUSE , Replaced By: N072581000303
5
FUSE IN CASE OF SUBSEQUENT INSTALLATION, Replaced By: N000000004202
104
OIL PRESSURE GAUGE ENGINE COMPARTMENT
107
PLATE APPARATUS PLATE
110
BRACKET , NOT USED
113
COMBINATION BOLT RELAY
116
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
119
SCREW ELECTRIC CABLE TO BRACKET M 6X60
122
BRACKET ELECTRIC CABLE
125
CLAMP HOSE TO HOSE 20 MM
128
CLAMP
131
RELAYA33, Replaced By: A0009822123
131
RELAY , Replaced By: A0035459605
134
DIODE ,K 182153
137
SENDER UNIT TRANSMISSION OIL TEMPERATURE
140
FITTING SENDER UNIT
143
SEAL RINGTO 006 997 00 72
146
SEAL RING
149
BRACKET RPM SENSOR
152
FLAP
155
EDGING
158
SEALING STRIP , ORDER BY THE METER
158
SEAL , Replaced By: A0019894398
161
INSULATION
164
INSULATION
167
FASTENER
170
HANDLE
173
WASHER BRACKET TO BATTERY CASE
999
CONTROL UNIT TRAILING AXLE
999
ELECTRIC CABLE , WHEN ORDERING CABLE HARNESSES STATE THE FOLLOWING: VEHICLE, IDENT. NO., INSTALLATION LOCATION/FUNCTION,AND/OR THE HARNESS NUMB ER ON THE HARNESS OR THE PART NUMBER
