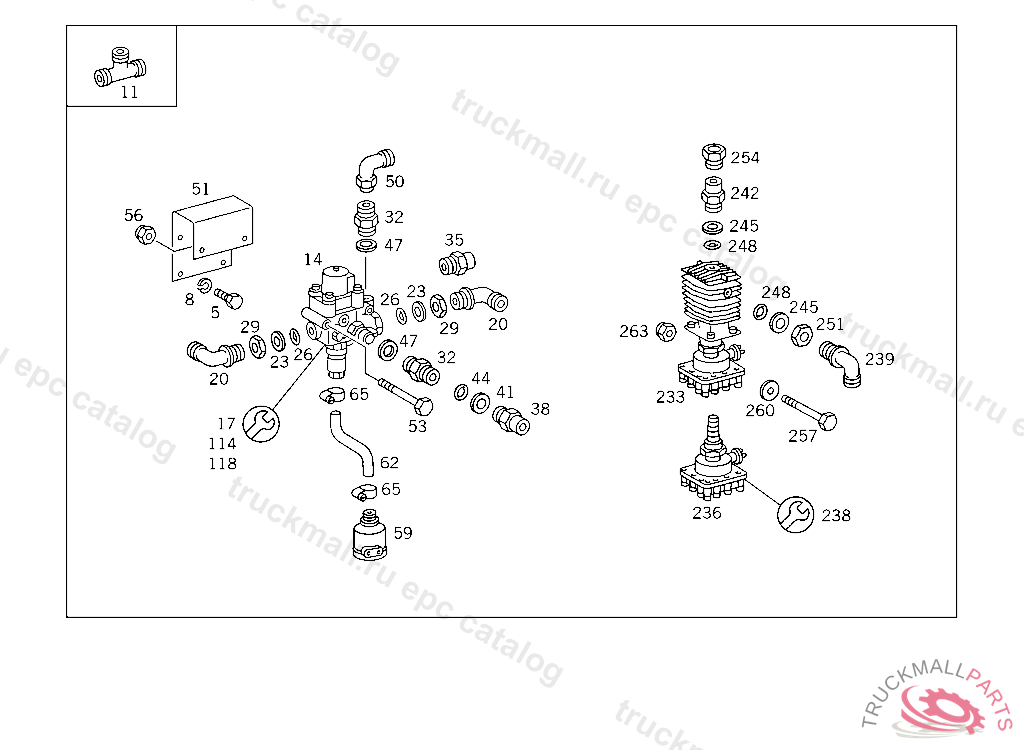

Поз.
Артикул
Описание
5
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
8
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
11
T-FITTING AIR DEHYDRATOR,CONNECTION: "2,21"
11
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
14
PRESSURE REGULATORKNORR
14
PRESSURE REGULATORBOSCH
14
PRESSURE REGULATORBENDIX,048428
14
PRESSURE REGULATOR , Replaced By: A0034314806
14
VALVE PRESSURE REGULATOR WABCO
17
REPAIR KITTO 002 431 38 06,002 431 67 06
17
REPAIR KIT PRESSURE REGULATOR BOSCH,241
17
REPAIR KITTO 003 431 48 06
17
REPAIR KIT PRESSURE REGULATOR WABCO
17
REPAIR KIT PRESSURE REGULATOR KNORR
20
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
23
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
26
SEAL RING LINE CONNECTION
29
NUT CHECK VALVE TO AIR RESERVOIR
32
FITTING 3/2-WAY VALVE,CONNECTION: "30"
32
FITTING LINE CONNECTION
32
FITTING LINE CONNECTION, Replaced By: N000000006446
32
TS DOUBLE FITTING SOLENOID VALVE
35
FITTING CHECK VALVE
35
FITTING LINE CONNECTION
38
FITTING LINE CONNECTION
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
44
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
47
SEAL RING LINE CONNECTION
47
SEAL RING
50
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
50
FITTING FROM PUMP TO CYLINDER
51
BRACKET PRESSURE REGULATOR
53
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
53
SCREW , Replaced By: N304017008053
53
SCREW REAR AXLE REGULATING SOLENOID VALVE
56
NUT , Replaced By: N913004008001
59
MUFFLER TRAILER CONTROL VALVE
59
MUFFLER
59
MUFFLER , Replaced By: A0004302370
59
MUFFLER , Replaced By: A0004302470
59
MUFFLER VALVE BLEEDING
59
MUFFLER BRAKE POWER REGULATOR,CONNECTION: "30"
62
HOSE50 MM
65
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
CLAMP , Replaced By: N000000000667
114
REPAIR KIT AIR DEHYDRATOR WABCO
118
REPAIR KIT PRESSURE REGULATOR
233
RESERVOIR WATER SEPARATOR
233
SEPARATOR. RESERVOIR WATER SEPARATOR
236
VALVE (DRAIN VALVE) HALDEX
238
REPAIR KIT (DRAIN VALVE)
239
T-FITTING CYCLONE PRE-FILTER BOWL,CONNECTION: "1", PLUG CONNECTION
242
FITTING CHECK VALVE
242
FITTING LINE CONNECTION
245
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
248
SEAL RING LINE CONNECTION
251
NUT CHECK VALVE TO AIR RESERVOIR
254
SCREW. UNION SCREW LINE CONNECTION
257
SCREW , Replaced By: N304017008067
257
SCREW BRACKET TO RIGHT SIDE MEMBER,5 434014
260
WASHER , Replaced By: N009021008213
260
WASHER BRACKET TO LEFT SIDE MEMBER
263
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
263
NUT , Replaced By: N913004008001
999
AIR CLEANERBENDIX,TO 001 431 24 15
999
AIR DEHYDRATOR , Replaced By: A0014310815, +001A0004292139
999
REPAIR KITBENDIX
