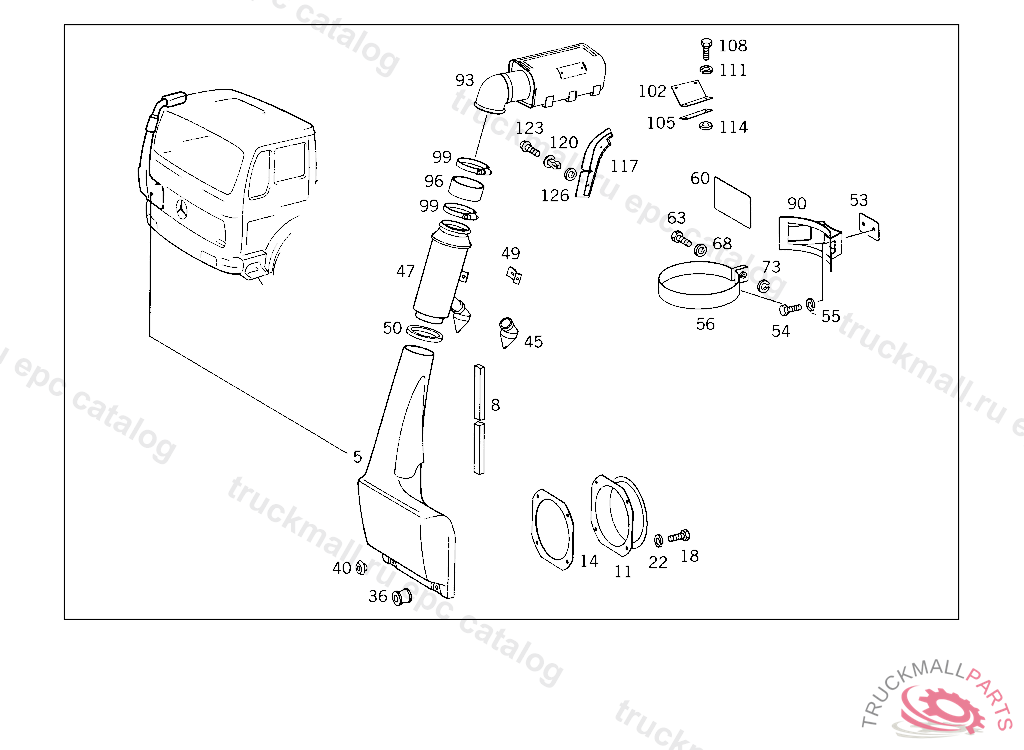

Поз.
Артикул
Описание
5
AIR INTAKE PIPE ,4 597758, Replaced By: A3818301053, +001A6419970190, +001N900271132004
5
AIR INTAKE PIPE FRONT RIGHT,4 597759
8
SHIM , Replaced By: A0009872835
8
SEALING RUBBER,. RUBBER SECTION
11
PIPE
14
GASKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 897760, Replaced By: A3818310028
14
INTERMEDIATE PIECE
18
SCREW , Replaced By: N304017006018
18
SCREW COVER PLATE TO COVER PLATE M 6 X 12
22
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
36
RUBBER MOUNTING AIR DUCT TO CAB
40
PLUG AIR DUCT TO CAB
45
VALVE CYCLONE
47
AIR CLEANER
49
BRACKET AIR CLEANER TO CAB,4 338444
49
BRACKET AIR CLEANER TO CAB
50
GASKET CYCLONE AIR TRAP TO AIR DUCT
53
SHIM BRACKET TO CAB
54
SCREW COVER PLATE TO BRACKET
55
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
STRAP AIR INTAKE
60
SHIM AIR INTAKE
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
63
SCREW COVER PLATE TO BRACKET
68
WASHER , Replaced By: N009021006208
68
WASHER COMPRESSED AIR LINE TO BRACKET
68
WASHER COMPRESSED AIR LINE TO BRACKET
73
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
73
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
90
BRACKET BOTTOM
93
AIR CLEANER
96
HOSE AIR CLEANER
99
CLAMP , Replaced By: N000000000678
99
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
99
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
102
BRACKET AIR CLEANER TO CAB
102
BRACKET AIR CLEANER TO CAB
105
SEAL RING AIR CLEANER TO CAB
108
SCREW COVER PLATE TO BRACKET
111
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
114
WASHER , Replaced By: N009021006208
114
WASHER COMPRESSED AIR LINE TO BRACKET
117
ANTINOISE CAPSULE CYCLONE
120
TREENAIL COVERING TO CYCLONE AIR TRAP
123
SHEET METAL SCREW ELECTRIC CABLE THRU CAB FLOOR
123
TAPPING SCREW BRACKET TO CAB FLOOR
126
WASHER , Replaced By: N009021004207
126
WASHER COVERING TO CYCLONE AIR TRAP
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
NUT
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N009021008213
999
SCREW CLAMP TO BRACKET AND TO PIPE
999
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
999
NUT
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET AIR CLEANER TO CAB,4 338444
999
BRACKET AIR DUCT TO CAB
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE FRONT RIGHT, NO LONGER AVAILABLE
999
AIR INTAKE PIPE FRONT LEFT
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE COWL,RIGHT
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944902, +001A4030941041
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944702, +001A4030941041
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944802, +001A4030940941
999
DUST COLLECTOR BOWL ,4 338443, Replaced By: A0100944602, +001A4030940941
