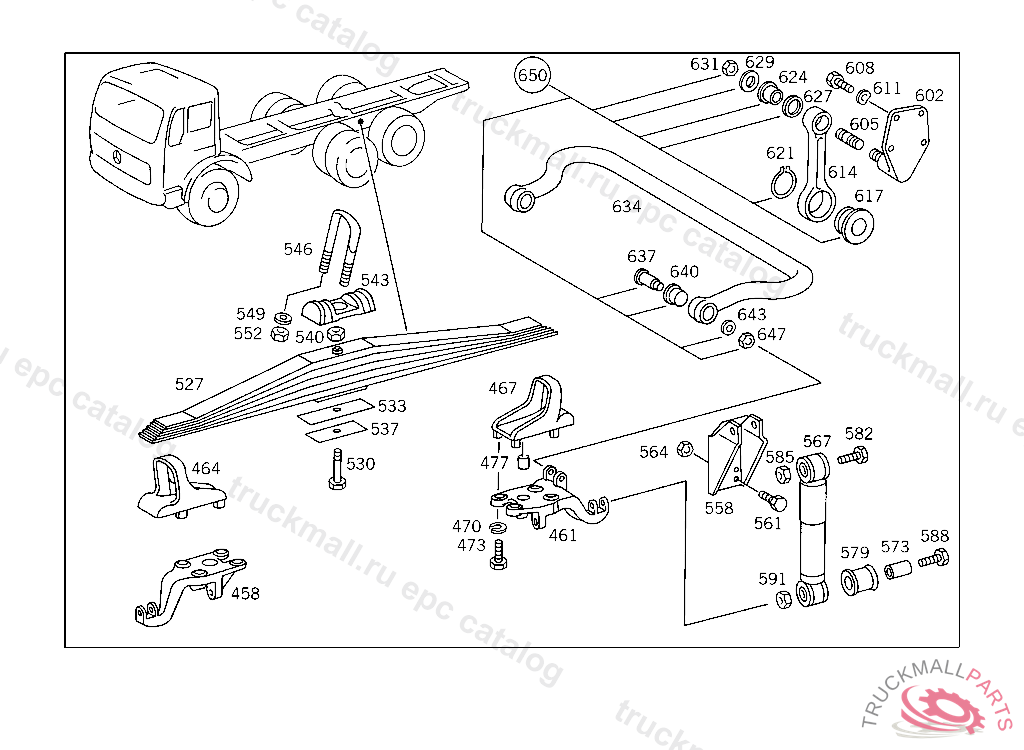

Поз.
Артикул
Описание
458
BEARING BRACKET REAR AXLES I AND II, TO BE ADAPTED DURING ASSEMBLY
461
BEARING BRACKET LEFT BOTTOM CONTROL ARM TO REAR AXLE "II"
461
BEARING BRACKET RIGHT BOTTOM CONTROL ARM TO REAR AXLE "II"
464
SPRING SEAT , Replaced By: A6583250019
464
SPRING SEAT
464
SPRING SEAT
464
SPRING SEAT
467
SPRING SEAT , Replaced By: A6583250119
467
SPRING SEAT REAR AXLE I,RIGHT
467
SPRING SEAT REAR AXLE I,RIGHT
467
SPRING SEAT REAR AXLE I,RIGHT
470
LOCK WASHER DISC WHEELS TO FRONT AND REAR AXLES
473
SCREW , Replaced By: A6599900001, +001A6599970126
473
SCREW BEARING TO STEERED AXLE
473
SCREW STEEL VERSION
473
SCREW CAST VERSION
477
PIN BEARING BRACKET
527
REAR SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "5",5 507219
530
SPRING BOLT ,K 164559
533
SHIM ,4 496613
537
SHIM , Replaced By: A3933210184
537
SHIM ,4 496613
540
NUT , Replaced By: N910113016001
540
NUT CONSOLE TO SUPPORT
543
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
543
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
546
U-BOLT REAR SPRING TO SPRING SADDLE 300 MM,4 472129
549
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
552
NUT U-BOLT
558
BRACKET SHOCK ABSORBER,TOP
561
SCREW , Replaced By: N308676012026
561
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
564
NUT SUPPORT TO SIDE MEMBER
567
SHOCK ABSORBER REAR AXLES I AND II
567
SHOCK ABSORBER , Replaced By: A0033265000
567
SHOCK ABSORBER REAR AXLES I AND II
573
SPACER TUBE , Replaced By: A0003232550
573
BUSHING , Replaced By: A0003233150
573
SPACER RINGTO 002 323 86 00,003 323 03 00,
573
SPACER RINGTO 002 323 86 00,003 323 03 00,
573
BUSHINGTO 003 323 31 00
579
RUBBER BUFFER , Replaced By: A0003232885
579
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
579
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
579
RUBBER BUFFER , Replaced By: A0003233144
579
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
579
RUBBER MOUNTINGTO 003 326 46 00
582
SCREW RUBBER MOUNTING TO SUPPORTING ARM M16X80,5 566418
585
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
585
NUT COMBINATION CYLINDER TO BEARING BRACKET
588
SCREW SHOCK ABSORBER TO TOP BRACKET
591
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
591
NUT COMBINATION CYLINDER TO BEARING BRACKET
602
CONSOLE ,5 9107605 910761, Replaced By: A3933261263, +001N000961016081
602
BEARING BRACKET TORSION BAR,REAR,5 910761
605
STUD BOLT
608
SCREW BRACKET TO SUPPORT
608
SCREW BRACKET TO SUPPORT
608
SCREW CONSOLE TO FRAME
608
SCREW CONSOLE TO FRAME
611
SPRING WASHER BRACKET TO TIMING CASE
614
SHACKLE STABILIZER,5 904660
617
RUBBER MOUNTING AT TORSION BAR
621
LOCK RING SHACKLE TO TORSION BAR,5 904660
624
BUSHING SHACKLE TO BEARING BRACKET,5 904660
627
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
629
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
631
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
631
NUT COMBINATION CYLINDER TO BEARING BRACKET
634
TORSION BAR
637
PIN TORSION BAR TO BEARING BRACKET
640
BUSHING TORSION BAR TO BEARING BRACKET,5 184731
643
WASHER BRACKET TO SPARE WHEEL CARRIER
647
NUT , Replaced By: N910113018004
647
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
650
REPAIR KIT , Replaced By: A6233200041
650
REPAIR KIT TORSION BAR TO BEARING BRACKET
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW BRACKET TO TRANSMISSION
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW SHACKLE TO CONSOLE
999
SCREW , Replaced By: N308676014020
999
SCREW , Replaced By: N308676012038
999
SCREW , Replaced By: N308676012012
999
BRACKET TORSION BAR
999
BRACKET , Replaced By: A6213230340
999
SHACKLE PIN , Replaced By: A3955860332
999
SHACKLE PIN , Replaced By: A3955860232
