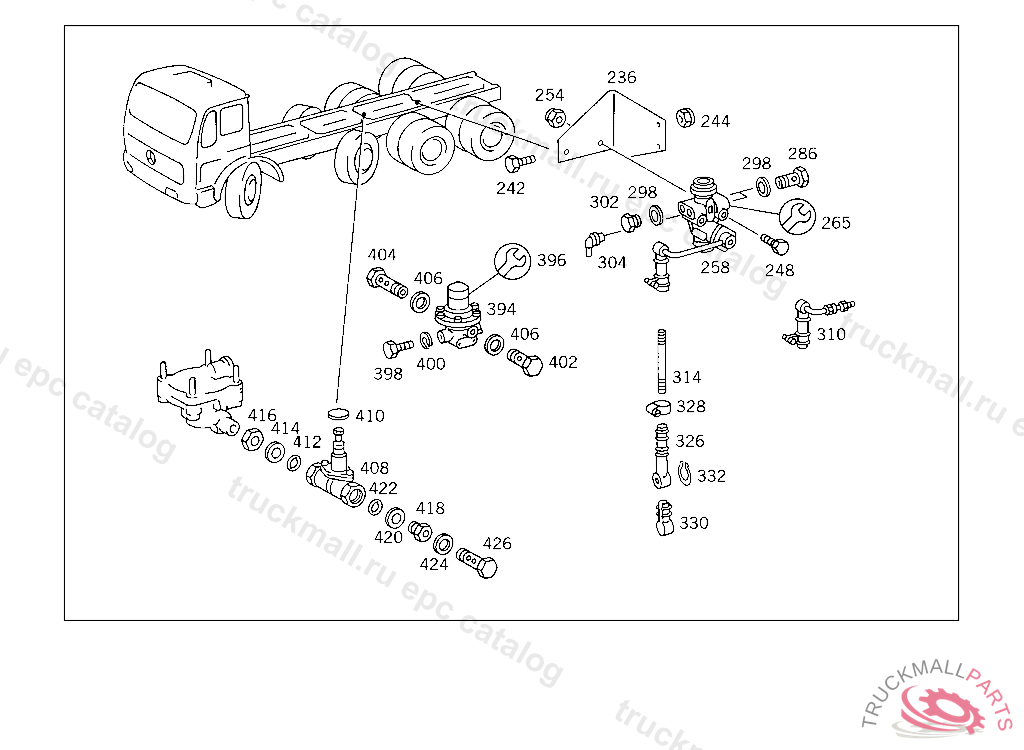

Поз.
Артикул
Описание
236
BRACKET AIR SPRING VALVE
242
SCREW BRACKET TO EXHAUST PIPE BRACKET
242
SCREW , Replaced By: N304017008024
244
NUT STRAP TO BRACKET
248
SCREW VALVE TO BRACKET
248
SCREW , Replaced By: N304014008002
254
NUT , Replaced By: N913004008001
254
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
258
VALVE STEERED AXLE SELF-LEVELLING DEVICE WABCO 433 401 003 0
265
REPAIR KIT AIR SPRING VALVE
286
HOLLOW SCREW LINE CONNECTION
298
SEAL RING LINE CONNECTION
302
SCREW PLUGROCKINGER,TYP 59 U150
302
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
304
PIPE SOCKET AIR SPRING VALVE,CONNECTION: "30"
310
ROD PNEUMATIC SUSPENSION CONTROL
314
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
326
CONNECTOR PULL ROD TO LEVER
326
CONNECTOR , Replaced By: A0004310735
328
CLAMP , Replaced By: N000000000665
328
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
330
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
332
LOCK RING PULL ROD TO LINK
394
VALVE (PRESSURE RELIEF VALVE)
396
REPAIR KIT REDUCTION VALVE
398
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
398
SCREW , Replaced By: N304017010028
400
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
402
HOLLOW SCREW HEATING CONNECTION
404
HOLLOW SCREW LINE CONNECTION
406
SEAL RING LINE CONNECTION
408
VALVE (OVERFLOW VALVE)
410
DIAPHRAGM
412
O-RING CHECK VALVE TO AIR RESERVOIR
414
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
414
THRUST RING CHECK VALVE TO AIR RESERVOIR
416
NUT CHECK VALVE TO AIR RESERVOIR
418
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
420
THRUST RING CHECK VALVE TO AIR RESERVOIR
420
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
422
O-RING CHECK VALVE TO AIR RESERVOIR
424
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
426
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
NUT , Replaced By: N910113018004
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK RING SHACKLE TO TORSION BAR,5 904660
999
SPACER WASHER AS REQUIRED 4.00 MM
999
SPACER WASHER AS REQUIRED 1.00 MM
999
REPAIR KIT TORSION BAR TO REAR AXLE
999
PIN TORSION BAR TO BEARING BRACKET
999
REPAIR KIT 3/2-WAY VALVE WABCO
