Поз.
Артикул
Описание

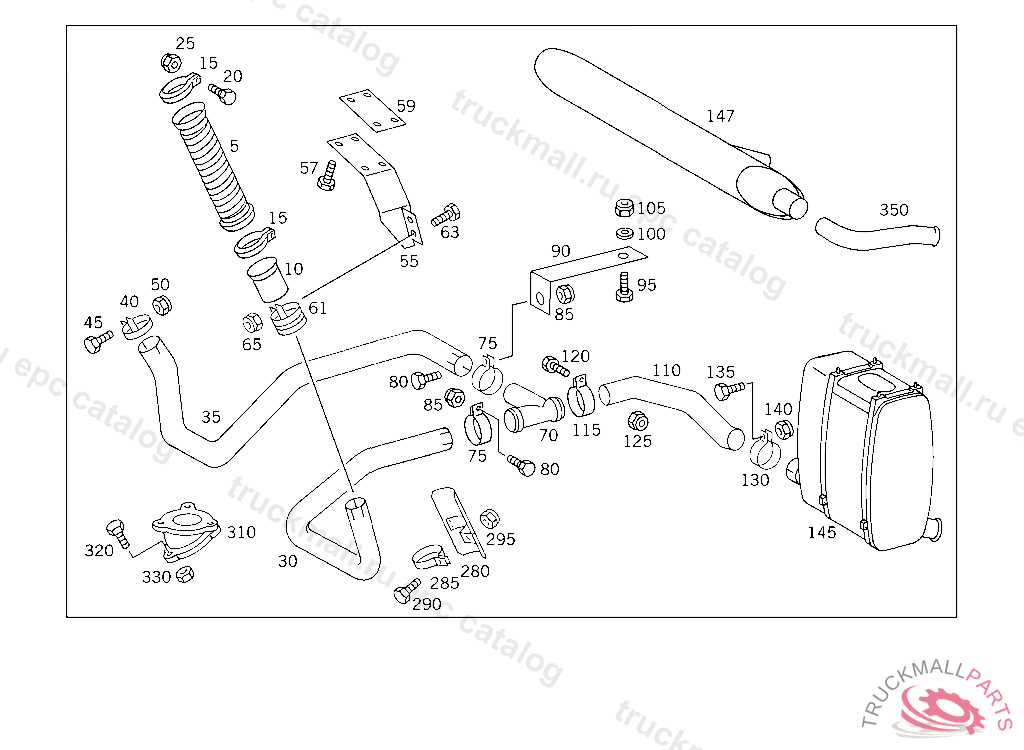

5
FLEXIBLE METAL TUBE FRONT LEFT
10
COLLAR (SLIDING COLLAR)
15
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
20
SCREW , Replaced By: N304017008018
20
SCREW SUPPORT TO FENDER
25
NUT , Replaced By: N913004008001
25
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
25
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
30
EXHAUST PIPE LEFT
30
EXHAUST PIPE SLIDING PIECE TO EXHAUST PIPE
30
EXHAUST PIPE LEFT
35
EXHAUST PIPE RIGHT
35
EXHAUST PIPE FRONT
35
EXHAUST PIPE , Replaced By: A6554904920
35
EXHAUST PIPE RIGHT
40
CLAMP SLIDING PIECE TO EXHAUST PIPE
45
SCREW , Replaced By: N304017010002
45
SCREW BRACKET TO SIDE MEMBER
50
NUT STRAP TO BRACKET
50
NUT , Replaced By: N910113010000
55
BRACKET FRONT EXHAUST PIPE,LEFT
55
BRACKET FRONT EXHAUST PIPE,RIGHT
57
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
59
SHIM CROSS MEMBER TO FRONT SPRING REAR BRACKET
61
CLAMP EXHAUST PIPE TO BRACKET
63
SCREW EXHAUST PIPE TO BRACKET
65
NUT , Replaced By: N913023010002
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
70
FITTING FROM EXHAUST PIPES TO EXHAUST MUFFLER
75
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
80
SCREW , Replaced By: N304017010002
80
SCREW BRACKET TO SIDE MEMBER
80
SCREW REAR EXHAUST PIPE TO MUFFLER
85
NUT , Replaced By: N910113010000
85
NUT STRAP TO BRACKET
90
BRACKET , Replaced By: A3814923841
90
BRACKET EXHAUST PIPE TO MUFFLER
90
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
90
BRACKET EXHAUST MUFFLER TO CROSS MEMBER
95
SCREW , Replaced By: N304017008018
95
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
95
SCREW SUPPORT TO FENDER
100
WASHER , Replaced By: N000125008443
100
WASHER EXHAUST MUFFLER TO STRAP
105
NUT , Replaced By: N913004008001
105
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
105
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
105
NUT , Replaced By: N913023010002
105
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
FRONT EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
110
FRONT EXHAUST PIPE FROM CONNECTION FITTING TO EXHAUST MUFFLER
115
CLAMP EXHAUST PIPE TO BRACKET
120
SCREW , Replaced By: N304017010002
120
SCREW BRACKET TO SIDE MEMBER
125
NUT STRAP TO BRACKET
125
NUT , Replaced By: N910113010000
130
CLAMP END PIECE TO EXHAUST PIPE
130
CLAMP , Replaced By: N071555124501
135
SCREW , Replaced By: N304017010002
135
SCREW BRACKET TO SIDE MEMBER
140
NUT , Replaced By: N910113010000
140
NUT STRAP TO BRACKET
145
EXHAUST MUFFLER
145
EXHAUST MUFFLER
145
EXHAUST MUFFLER , TO BE ADAPTED DURING ASSEMBLY
147
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
280
PROTECTIVE PLATE REAR EXHAUST PIPE, NOT USED
285
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
285
CLAMP , Replaced By: N071555100501
290
SCREW REAR EXHAUST PIPE TO MUFFLER
295
NUT STRAP TO BRACKET
295
NUT , Replaced By: N910113010000
310
FLANGE EXHAUST GAS TURBOCHARGER,LEFT
320
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD
330
NUT END PIECE TO EXHAUST PIPE
350
END PIECE TAIL PIPE,K 082900
350
END PIECE , Replaced By: A6534920114
999
NUT SPRING-LOADED PUSH ROD
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
SCREW REINFORCEMENT WITH FENDER BRACKET TO FENDER
999
COVERING EXHAUST MUFFLER, NOT USED
999
FENDER , TO BE ADAPTED DURING ASSEMBLY
999
FENDER , Replaced By: A6525220701, +004A6205205241, +004A3935220029, +032N000603006062, +032N009021006208, +032N304032006004
999
CONNECTOR FROM EXHAUST MUFFLER TO DUMPER TROUGH, LEFT
999
CONNECTOR FROM EXHAUST MUFFLER TO DUMPER TROUGH, LEFT
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
BRACKET INTERMEDIATE PIECE TO EXHAUST MUFFLER
999
BRACKET FENDER
999
REINFORCEMENT FENDER
999
SPLASH GUARD FENDER
999
RAIL FENDER TO BODY
999
WASHER CROSS MEMBER TO SUPPORT
999
SCREW BRACKET TO SIDE MEMBER,5 597425
999
SCREW BRACKET TO SIDE MEMBER M 14X55,5 543914
999
SCREW BRACKET TO BEARING BRACKET,K 274033
