Поз.
Артикул
Описание

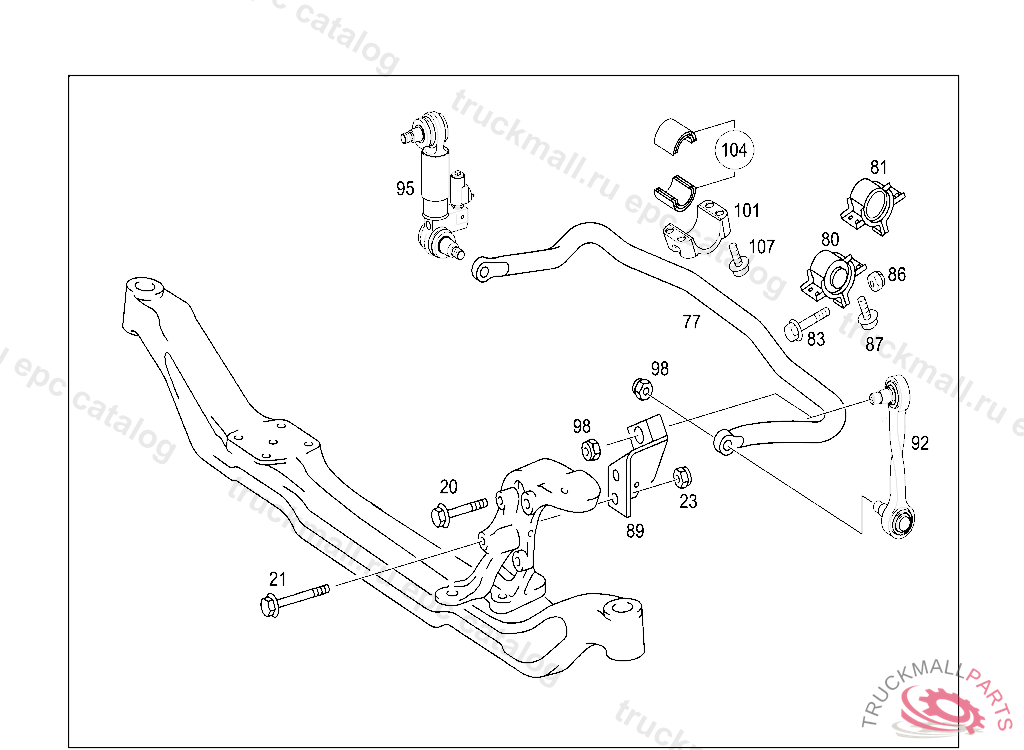

20
HEXAGON HEAD BOLT BEARING BRACKET ON BEARING BRACKET M18X1.5X150, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
20
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M18X1.5X150
21
HEXAGON HEAD BOLT SUPPORT TO SIDE MEMBER M18X1.5X200
21
SCREW SHOCK ABSORBER BRACKET TO BEARING BRACKET M18 X 1.5 X 200 MM
23
NUT RUBBER MOUNTING TO BRACKET
23
HEXAGON NUT BEARING BRACKET TO FRONT AXLE M18X1.5
77
TORSION BAR FRONT AXLE
80
BEARING
81
BEARING
83
HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X40
83
SCREW. HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X40
86
NUT SUPPORT TO FRAME
86
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
87
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
89
BRACKET LEFT
89
BRACKET , Replaced By: A6283200543
89
BRACKET , Replaced By: A6283200643
89
BRACKET RIGHT
92
ROD , Replaced By: A6283201089
92
ROD , Replaced By: A6283201189
92
ROD FRONT AXLE,RIGHT
92
ROD FRONT AXLE,LEFT
98
NUT STEERING WHEEL TO STEERING COLUMN
