Mercedes A6289700174 - ZB AUFNAHME (R

O 530 NUE3 EURO 2 628.001

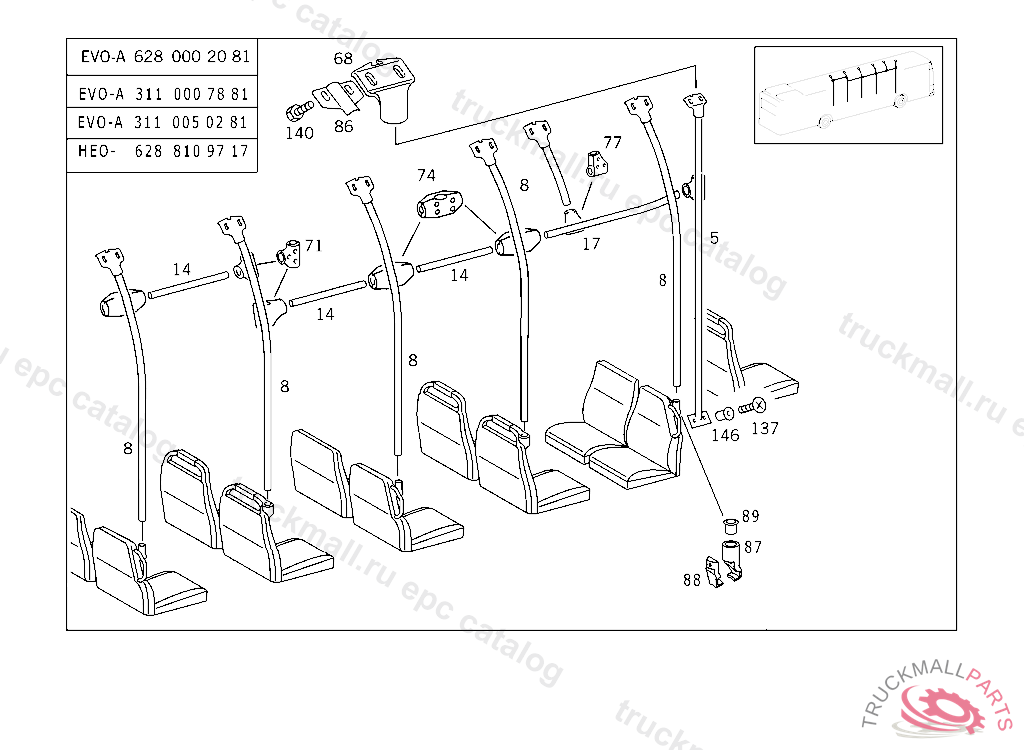

81 APPOINTMENTS - 425 GRIP RAILS,COMMUNICATOR SYSTEM BUTTON, FRONT LEFT IL. 1

Поз.
Артикул
Описание
8
A6288101646
GRIP RAIL BENT 2264 MM, TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
14
A3578155155
GRIP RAIL STRAIGHT 2949 MM, TO BE ADAPTED DURING ASSEMBLY STATE COLOR NUMBER WHEN ORDERING
68
A6288150114
BRACKET AT VERTICAL GRIP RAIL,TOP
71
A6288150214
BRACKET
74
A6288150314
BRACKET GRIP RAIL MOUNTING, STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
77
A6288150414
BRACKET , .......I.......INO.7E87I.......I II
86
A6288150714
BRACKET
87
A6289700074
REST LEFT
87
A6289700174
REST RIGHT
88
A6289730148
CLIP GRIP RAIL TO ENTRANCE GRIP RAIL
88
A6289730048
CLIP LEFT
89
A6289400013
GUIDE
137
N007991008016
SCREW FROM TERMINAL BOX TO CHARGING AIR PIPE
137
N007991008018
SCREW , Replaced By: N000000003143
140
N304017008007
SCREWM 8X20
140
N914112008033
SCREW PROTECTION PLATE TO BRACKET
146
N913010008201
RIVETED NUT BRACKET TO FLOOR
