Mercedes A6284208134 - Трубопровод сжатого

O 530 NUE3 EURO 2 628.001

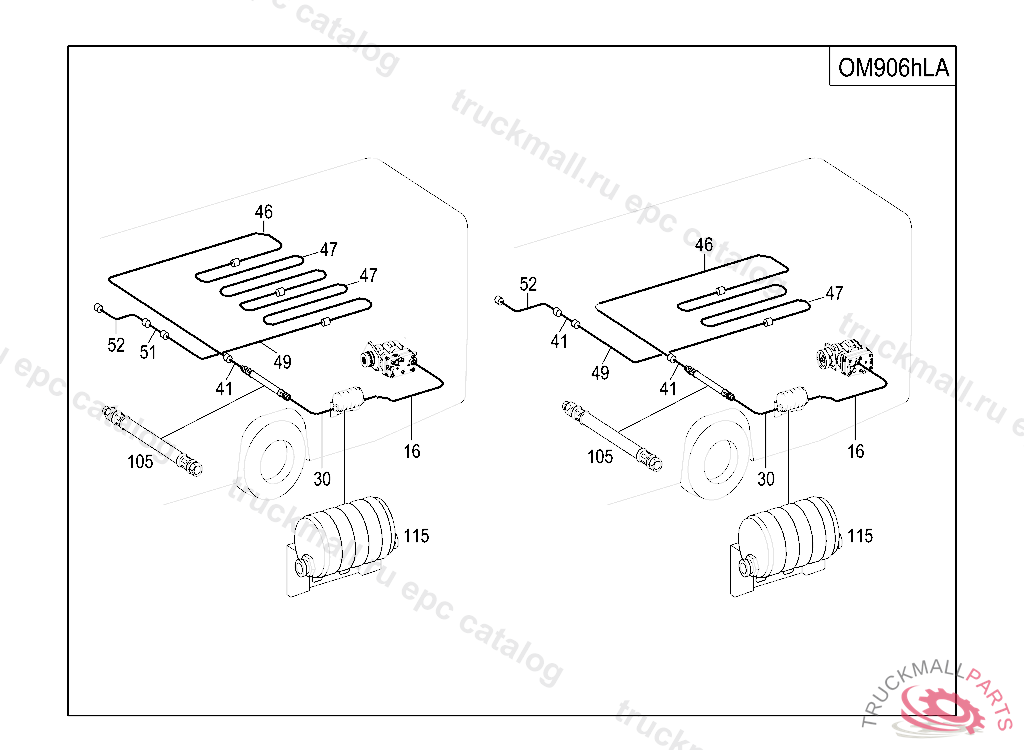

42 BRAKES - 057 18-MM COMPRESSED AIR LINES IL. 3

Поз.
Артикул
Описание
16
A6284208334
LINE AIR COMPRESSOR
16
A6284208934
LINE AIR COMPRESSOR
30
A6284209034
LINE MOLDED HOSE TO MUFFLER
30
A6284202232
LINE MOLDED HOSE TO MUFFLER, FROM IDENT NO.099978, EXCEPT FOR 099368,099369
30
A6284201032
LINE MOLDED HOSE TO MUFFLER
30
A6284205830
LINE MOLDED HOSE TO MUFFLER, UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
30
A6284209429
LINE MOLDED HOSE TO MUFFLER, UP TO IDENT NO.099977, INOLTRE MONTATO IN 099368,099369
41
A6284207934
LINE
46
A6284208034
LINE
47
A6284203134
LINE
49
A6284208134
LINE
51
A6284202333
LINE
105
A0014292135
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
105
A0014292635
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
115
A6284300670
MUFFLER FROM AIR COMPRESSOR TO PRESSURE REGULATOR
