Mercedes A6286320419 - STEG

O 530 NUE3 EURO 2 628.001

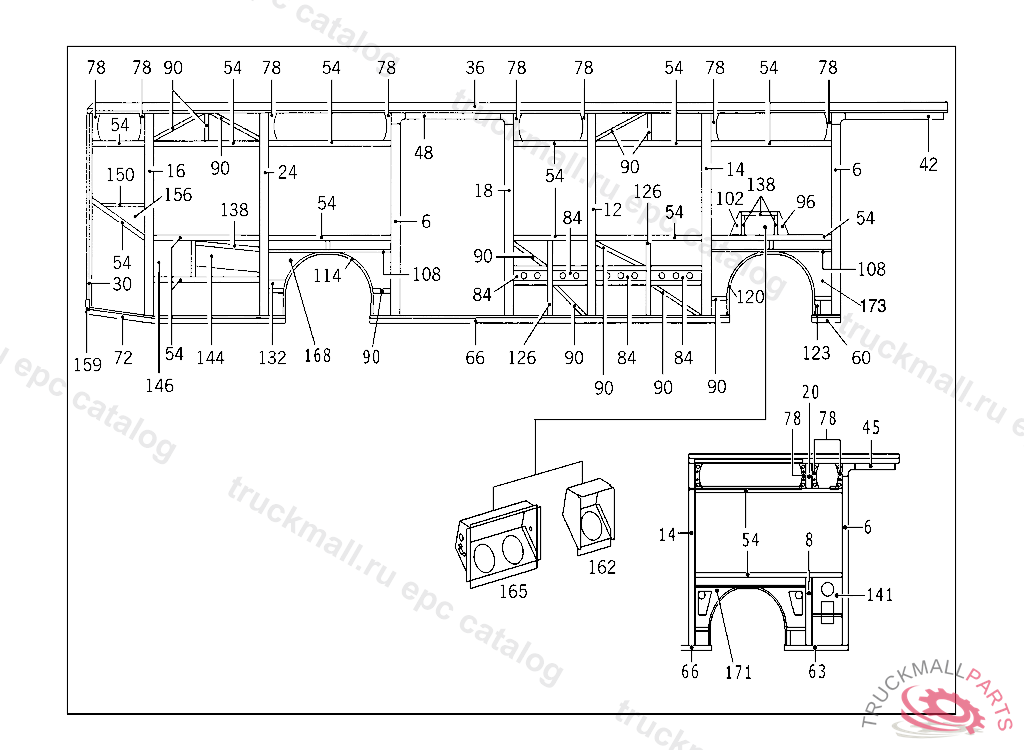

63 SIDE PANELS - 220 RIGHT SKELETON,2 DOORS

Поз.
Артикул
Описание
6
A6286300110
PILLARNO. 1 + 5
6
A6286300310
PILLAR
6
A6286302710
PILLAR
8
A6286313210
PILLAR PART
12
A6286310910
PILLAR PART
14
A6286301210
PILLARNO. 2
14
A6286302510
PILLARNO. 2
16
A6286312510
PILLAR PARTNO. 5
18
A6286300210
PILLARNO. 2 + 3
20
A6286313110
PILLAR PART
24
A6286301510
PILLARNO. 4
24
A6286311310
PILLAR PART
30
A6286310710
PILLAR PART REAR END
36
A6286304739
ROOF RACK
36
A6286301740
SUPPORT , Replaced By: A6286304739
42
A6286300117
FRAME FRONT DOOR
45
A6286300317
FRAME FRONT DOOR
48
A6286300017
FRAME DOOR,TOP
54
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
54
A6286320440
SUPPORT
54
A6286326040
SUPPORT
60
A6286300740
SUPPORT BOTTOM
63
A6286302240
SUPPORT BOTTOM
66
A6286300940
SUPPORT
66
A6286300840
SUPPORT BOTTOM
72
A6286300640
SUPPORT
78
A6286341316
REINFORCEMENT TOP
78
A6286340416
REINFORCEMENT
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
84
A6286323040
SUPPORT
90
A6286330105
STRUT
90
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
96
A6286320012
ANGLE TANK FLAP
102
A6286320112
ANGLE TANK FLAP
108
A6286321840
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
114
A6286320030
WHEEL BOW
114
A6286300030
WHEEL BOW
120
A6286320230
WHEEL BOW
120
A6286320130
WHEEL BOW FRONT WHEEL BOW
123
A6286310410
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
123
A6286325140
SUPPORT , Replaced By: A6286310410
126
A6286310110
PILLAR PART
132
A6286340316
REINFORCEMENT
138
A6286327440
SUPPORT. RECTANGULAR TUBE50X40X2X1480MM, TO BE ADAPTED DURING ASSEMBLY
138
A6286325440
SUPPORT50 X 40 X 2 X 839 MM, TO BE ADAPTED DURING ASSEMBLY
144
A6286320319
WEB
146
A6286320419
WEB
150
A6286340212
ANGLE
150
A6286340312
ANGLE
156
A6286360006
PANELLING
159
A6286340111
PLATE
162
A6286027608
COVERING
162
A6286370140
COVERING FUEL FILLER COMPARTMENT
168
A6286300227
PANELLING
173
A6286300827
PANELLING
