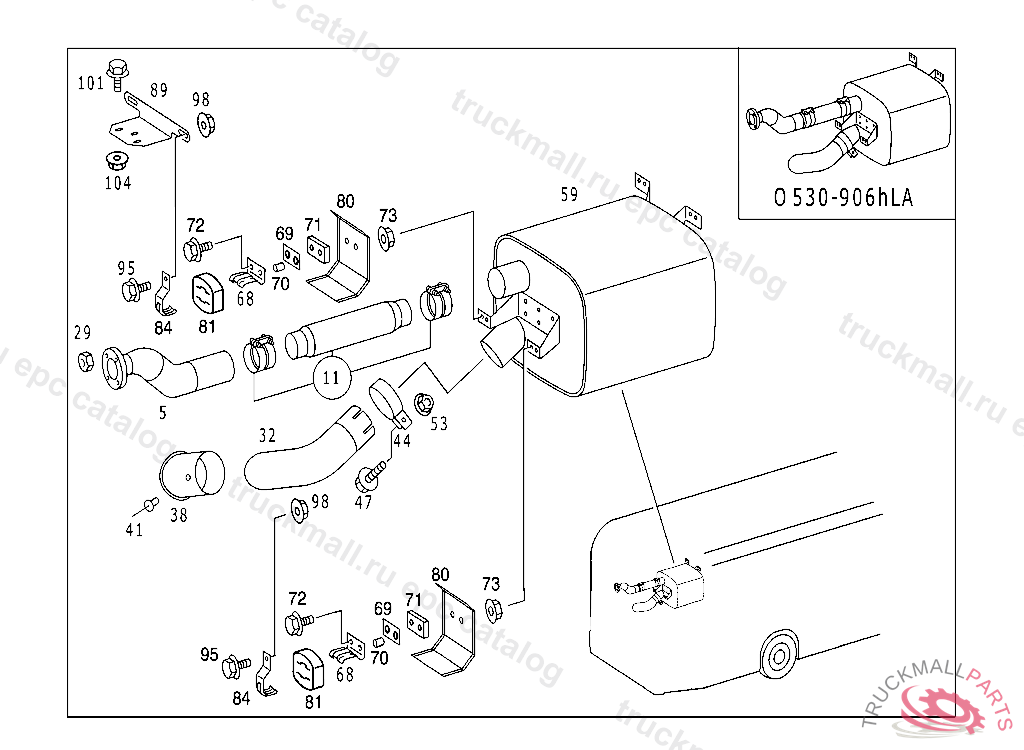

Поз.
Артикул
Описание
5
EXHAUST PIPE EXHAUST GAS TURBOCHARGER CONNECTION
5
CONNECTOR EXHAUST GAS TURBOCHARGER CONNECTION
11
FLEXIBLE METAL TUBE FRONT
11
WRAPPED TUBING CONNECTION OF EXHAUST PIPES WITH EACH OTHER, FOR COMPONENT PARTS SEE SPARE PARTS LIST
29
NUT CONNECTING PIPE TO EXHAUST BRAKE
32
REAR EXHAUST PIPE AT MUFFLER
32
REAR EXHAUST PIPE AT MUFFLER
38
END PIECE , Replaced By: A3574921314
41
BLIND RIVET. RIVET NAME PLATE TO BRACKET
41
RIVET GEARING TO BACKREST FRAME 3 MM
44
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
47
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
53
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
59
EXHAUST MUFFLER
68
CONSOLE EXHAUST MUFFLER
69
PLATE CONSOLE TO EXHAUST MUFFLER
70
SPACER TUBE REAR EXHAUST PIPE TO BRACKET AT SHOCK ABSORBER CROSS MEMBER
71
INSULATION CONSOLE TO EXHAUST MUFFLER
71
INSULATION CONSOLE TO EXHAUST MUFFLER
72
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
73
NUT HORN TO BRACKET M8
80
PROTECTIVE PLATE REAR EXHAUST MUFFLER
81
DAMPING PAD EXHAUST MUFFLER SUSPENSION
83
CONSOLE EXHAUST MUFFLER TO SUBSTRUCTURE
84
BRACKET REAR EXHAUST PIPE TO SIDE MEMBER
89
CONSOLE ON ENGINE SUPPORT
95
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
98
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
101
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
104
NUT HORN TO BRACKET M8
