Mercedes A0019986250 - VERSCHLUSSSTOPFEN

O530 - CITARO 12M, 1 TUER 628.080

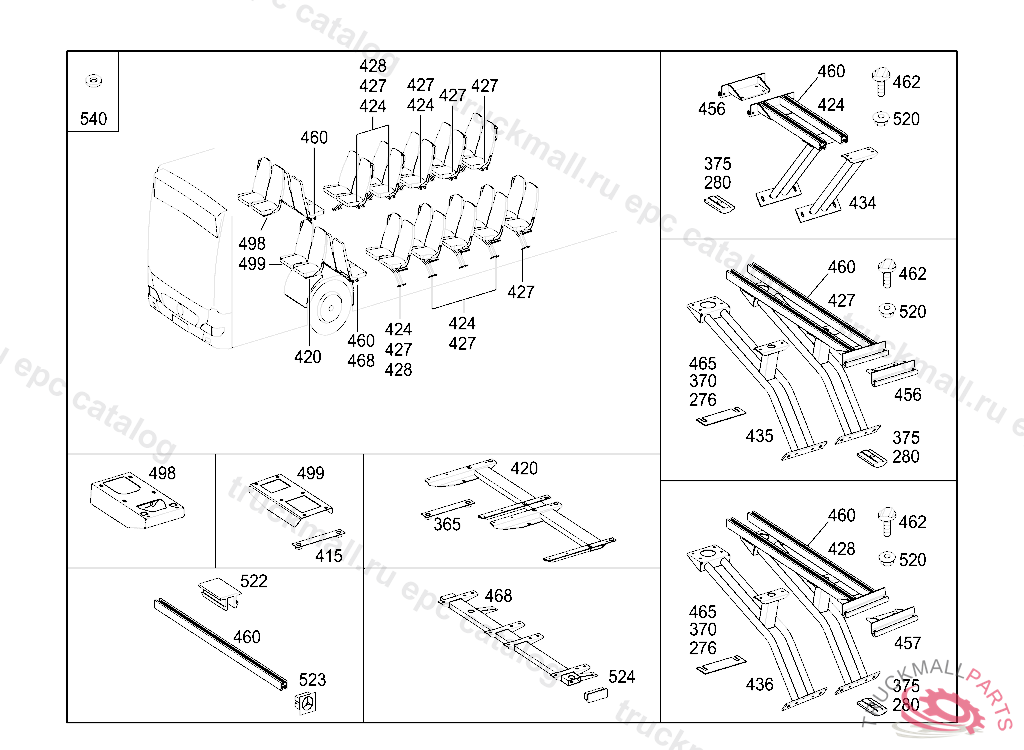

95 SEATS - 010 SINGLE OCCUPANCY SEAT IL. 18

Поз.
Артикул
Описание
280
A6289510111
PLATE
375
A6289590170
SLIDE
415
A6289500111
PLATEM8150/170 MM
415
A6289500011
PLATE
415
A6289500411
PLATEM850/70 MM
424
A6289400020
SEAT FRAMEWORK SINGLE SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
427
A6289500620
SEAT FRAMEWORK SEAT FRAME, DUAL SEAT, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
428
A6289500820
SEAT FRAMEWORK ELONGATED VERSION, RIGHT, TURNED 4 DEGREES, .......I.......INO.7E87I.......I II
434
A6289400017
SEAT BASE
435
A6289500617
SEAT BASE SEAT FRAME, DUAL SEAT
436
A6289500617
SEAT BASE SEAT FRAME, DUAL SEAT
436
A6289500717
SEAT BASE RIGHT 4°, .......I.......INO.7365I.......I.......I....... I .......I.......INO.7E87I.......I II
456
A6289500024
SUPPORT
457
A6289500224
SUPPORTTO A6289500820, .......I.......INO.7E87I.......I II
460
A6289510336
RAIL DOUBLE SEAT 850 MM
460
A6289410036
RAIL SINGLE SEAT 420 MM
460
A6289511936
RAIL400MM
462
A0009510271
SCREWM8X22
465
A6289511111
PLATE TOLERANCE COMPENSATION
520
N913023008003
NUT HORN TO BRACKET M8
522
A6289870014
RUBBER STRIP
523
A6289410018
EDGE GUARD SECTION
524
A0019986250
PLUG
540
N000125008445
WASHER PUMP TO CONSOLE
540
N000000003333
WASHER BRACKET TO FUEL TANK SUPPORT
999
A6289850154
SPACER STRIP
