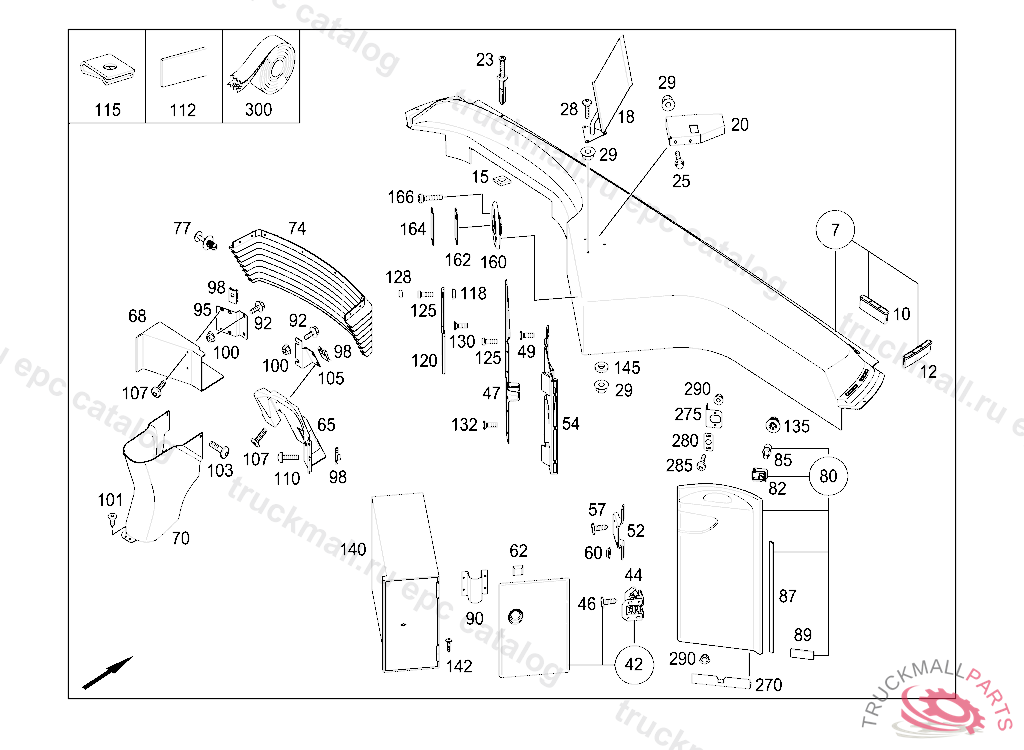

Поз.
Артикул
Описание
23
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
42
PANELLING ,....... I NR.7E86 I ....... I ....... I ....... II
47
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
54
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
62
RUBBER BUFFER TO GLASS PANE,BOTTOM
74
PANELLING BELLOWS
77
RIVET RESERVOIR TO FIRE WALL
80
HOUSING ,....... I NR.7E86 I ....... I ....... I ....... II
80
STORAGE SPACE FIRE EXTINGUISHER,....... I NR.7E86 I ....... I ....... I ....... II
82
LOCK NUT. SPRING NUT STEP TO ENTRANCE
85
CLEVIS PIN W HEAD
87
TOTAL FOAMED MATERIAL USE SELF-ADHESIVE ON ONE SIDE 6X15MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
98
NUT RETAINER
112
TOTAL FOAMED MATERIAL USE10X0,8MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
115
SPRING-THREAD NUT PROTECTIVE PLATE
135
PLUG CONNECTION
160
COVERING ,....... I ....... I NR.7E87 I ....... I ....... II
162
PLATE
164
ADHESIVE TAPE
166
TAPPING SCREW3,5X13
270
BRACKET FIRE EXTINGUISHER
275
BRACKET FIRE EXTINGUISHER
280
CONNECTING SHEET
285
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
290
NUT-AND-WASHER ASSEMBLY. NUTM4
