Mercedes A6283210007 -

O530 - CITARO 12M, 1 TUER 628.080

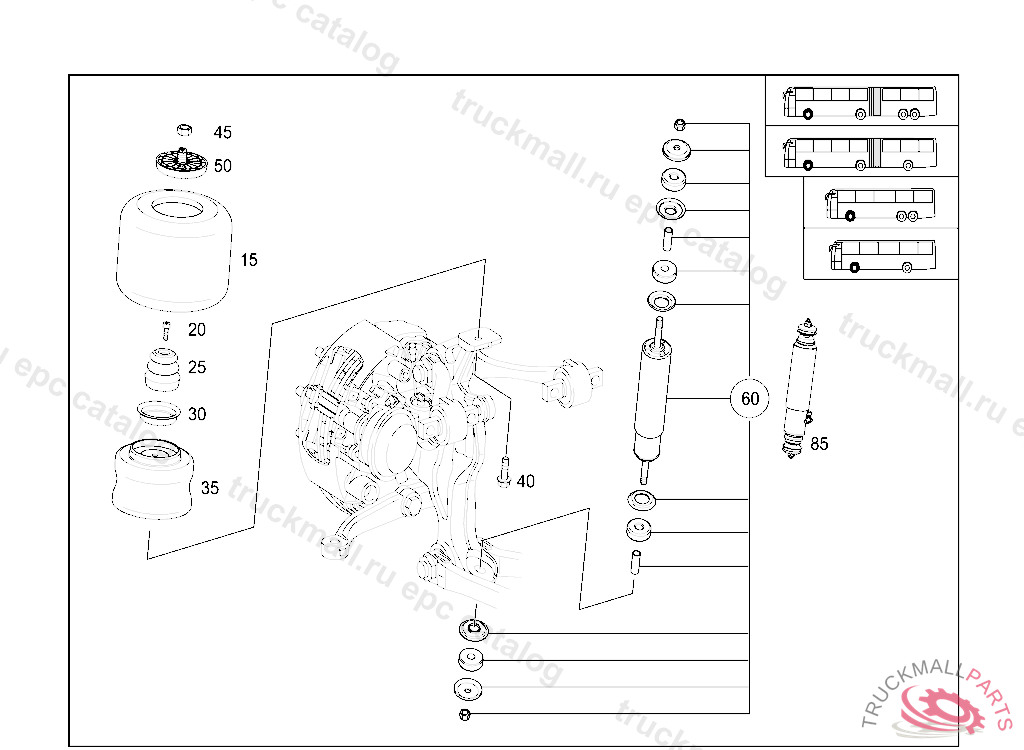

32 SPRINGS AND SUSPENSION - 545 PNEUMATIC SUSPENSION & STABILIZATION ON FRONT AXLE IL. 1

Поз.
Артикул
Описание
15
A6283230092
BELLOWS. BOOT
15
A6323200025
PNEUMATIC SPRING COMPLETE
20
A0003210071
SCREW
25
A6283210007
AXLE STOPHOEHE 80
25
A6283210006
HELPER SPRINGHOEHE 80, Replaced By: A6283210007
30
A6283220087
CENTERING DISCHOEHE 23
35
A6283200018
AIR BELLOW PISTON123 MM
40
N000000005542
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M16 X 1.5 X 50
40
N910105016012
SCREW FIFTH WHEEL COUPLING TO MOUNTING PLATE M 16X1.5X50
45
A0029909550
NUTM24X1.5-14H
50
A6283200435
PLATED 132.5
60
A6283230400
SHOCK ABSORBER , ONLY REPLACEABLE BY PAIRS
60
A6283230800
SHOCK ABSORBER COMPLETE, ONLY REPLACEABLE BY PAIRS
85
A6283231100
SHOCK ABSORBER COMPLETE ELEK. EINSTELLBAR, ONLY REPLACEABLE BY PAIRS
85
A6283230500
SHOCK ABSORBER COMPLETE ELEK. EINSTELLBAR, ONLY REPLACEABLE BY PAIRS, Replaced By: A6283230700
85
A6283230700
SHOCK ABSORBER COMPLETE ELEK. EINSTELLBAR, ONLY REPLACEABLE BY PAIRS, Replaced By: A6283231100
999
A6283220334
BEARING BRACKET
999
A6283220434
BEARING BRACKET
