Mercedes A0038303608 - ВЕНТИЛЯТОР

O530 - CITARO 12M, 1 TUER 628.080

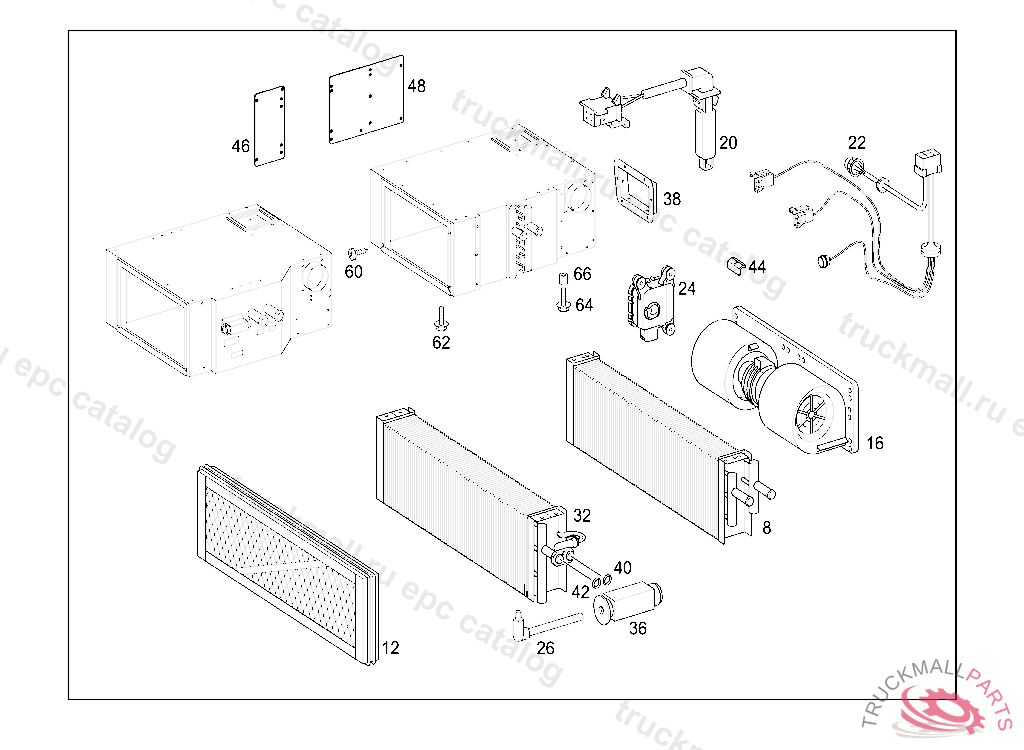

83 HEATING AND VENTILATION - 067 HEATER/AIR CONDITIONING DRIVER'S PLACE OF WORK

Поз.
Артикул
Описание
8
A0018302020
HEATER
8
A0008308770
CONDENSER , Replaced By: A0018302020
12
A0018351547
FILTER WITH FILTER ELEMENT
16
A0038303608
BLOWER FOR FIRST TIME REPLACEMENT,ALSO ORDERADAPTER CABLE A0008206987
20
A0078200810
TEMPERATURE SENSOR
20
A0018300772
TEMPERATURE SENSORL200MM, Replaced By: A0078200810
24
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
24
A0068207842
SERVO-D.C. W.GEARBOX
26
A0018301972
TEMPERATURE SENSOR ICE SENSOR
32
A0018309858
EVAPORATOR
36
A0028306084
VALVE
40
A0239971548
SEAL RING
42
A0239971648
SEAL RING
60
N000000002108
HEXALOBULAR BOLTM5X16
62
N910105008004
SCREW BRACKET MOUNTING M6 X 20
64
N910105008016
SCREW SHIFT LEVER TO BRACKET M8X30
66
A1239910140
SPACER TUBE GUIDE BRACKET TO CENTRAL PILLAR,REAR, OR TO ROOF RAIL
