Mercedes A0004290527 - КОЛЬЦО ПРОСТАВОЧНОЕ

O 530 N3 LANG EURO 2 628.100

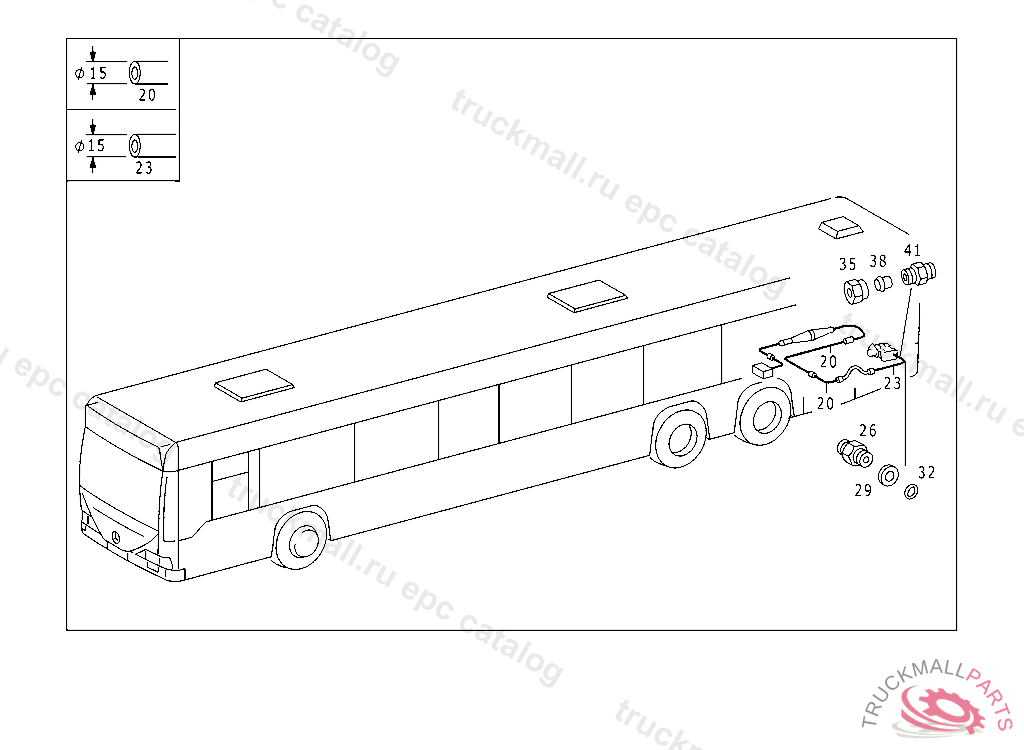

42 BRAKES - 050 16-MM/15-MM COMPRESSED AIR LINES IL. 2

Поз.
Артикул
Описание
20
A0004291401
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
23
A0005516256
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
26
A0019972372
FITTING SHUTTLE VALVE,CONNECTION: "20"
26
A0059974172
FITTING AT AIR COMPRESSOR
29
A0004290527
THRUST RING SUCTION LINE TO OIL PUMP
32
A0039973848
SEAL RING LINE CONNECTION
35
N915018015100
UNION NUT AIR COMPRESSOR LINE CONNECTION
35
N000000006240
NUT LINE CONNECTIONS AL 15
35
N915017015100
UNION NUT LINE CONNECTION
38
N003861015004
GLAND LINE CONNECTION
41
N003902015001
CONNECTION FITTING HIGH PRESSURE LINE TO STEERING
