Mercedes A6284750046 - PROTECTION PLATE

O 530 N3 LANG EURO 2 628.100

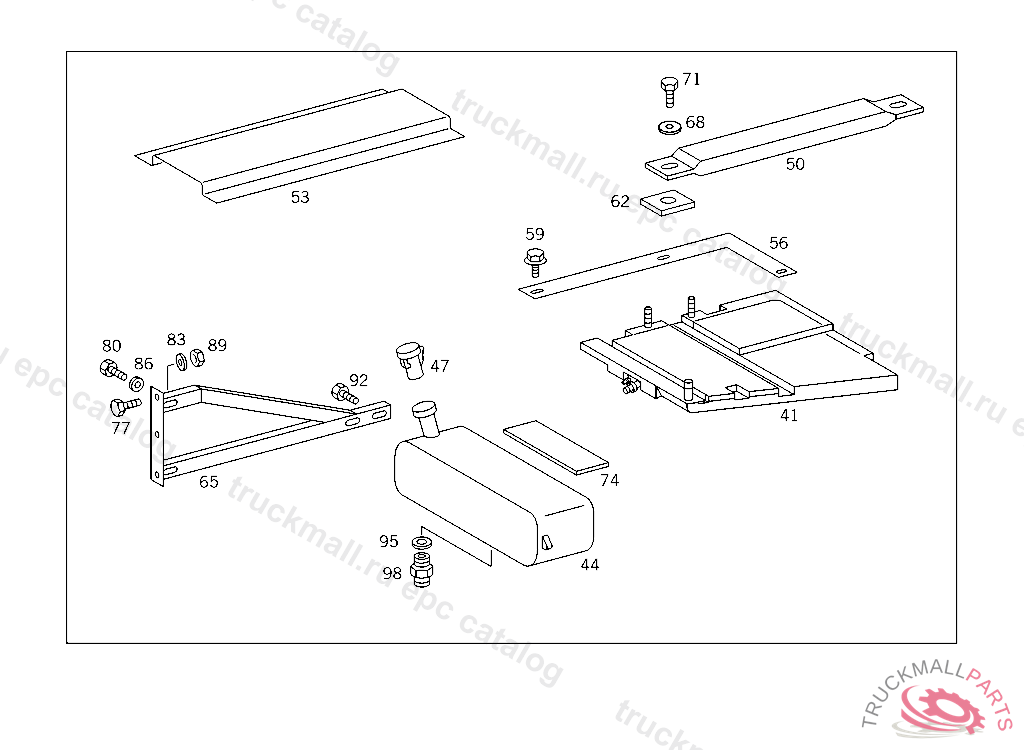

47 FUEL SYSTEM - 240 FUEL-OIL LINES AND TANK IL. 2

Поз.
Артикул
Описание
41
A6284705001
FUEL TANK , FROM IDENT NO. 099900, EXCEPT FOR099909 ALSO INSTALLED ON 099721,099722,099723,099724,099725.
41
A6284701901
FUEL TANK , UP TO IDENT NO. 099899, INOLTRE MONTATO IN 099909 EXCEPT FOR 099721,099722,099723,099724,099725.
50
A6284750301
SUPPORT
53
A6284750046
PROTECTIVE PLATE
56
A6284750146
PROTECTIVE PLATE
59
N910105005000
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
62
A6284750029
THRUST PLATE
68
N009021010102
WASHER A. WASHER BRACKET TO LEFT SIDE MEMBER
71
N304017010046
SCREW BRACKET TO FRAME
999
A0004710143
FILTER ELEMENT
999
A0004712180
GASKET14X22
999
A0004712280
GASKET22X18X1,5
999
A0004712380
SEAL F FILLER NECK. GASKET
999
A0269971848
SEAL RING
