Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

ML 320 163.154 FROM 09/2000

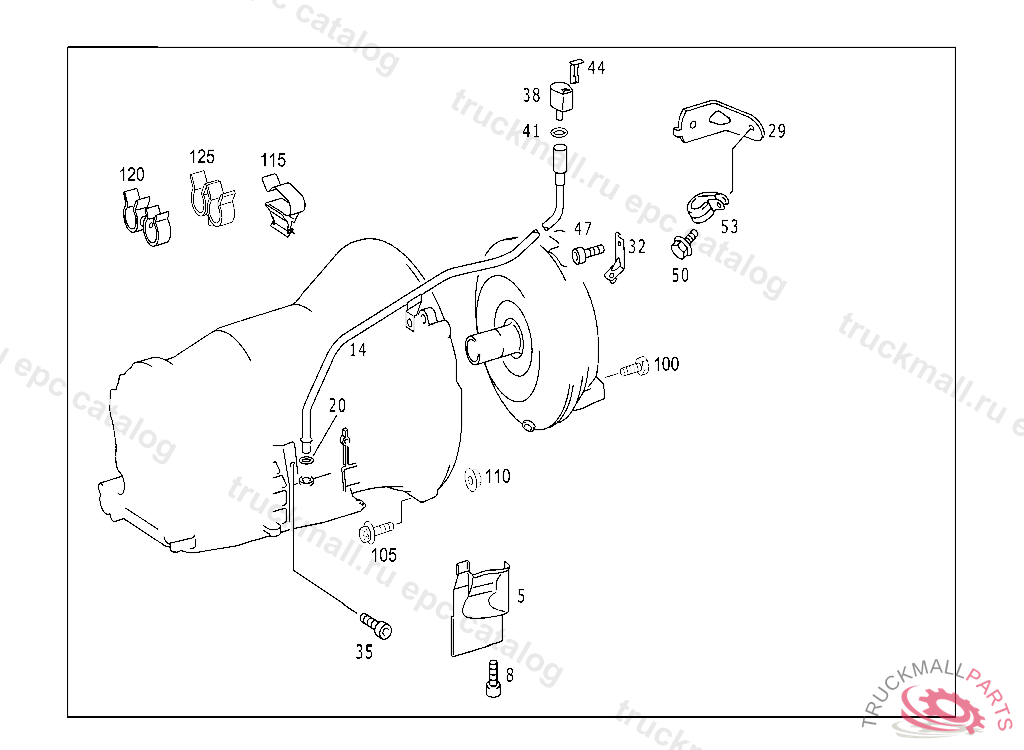

27 AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
5
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
8
A0039901712
BOLT HIGH-PRESSURE TO ENGINE OIL SUMP M6X15, Replaced By: A0019844329
8
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
14
A2022700784
OIL FILLER PIPE
20
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
29
A2022710540
BRACKET BRACKET TO ENGINE
35
A0019907922
SCREW STARTING CABLE TO ENGINE
38
A1402700091
COVER OIL FILLER PIPE
41
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
44
A1409910055
DOWEL PIN OIL FILLER PIPE
47
N007984008008
SCREW PLATE TO TRANSMISSION CASE
50
N910106006004
HEXAGON HEAD BOLT
53
N916016012200
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
100
A1249902201
SCREWM 8X18
105
N910143010000
SCREW PLATE TO FRAME M 10X45
105
N910105010044
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
110
N913023010000
NUT FUEL LINE ON BRAKE LINE M10
