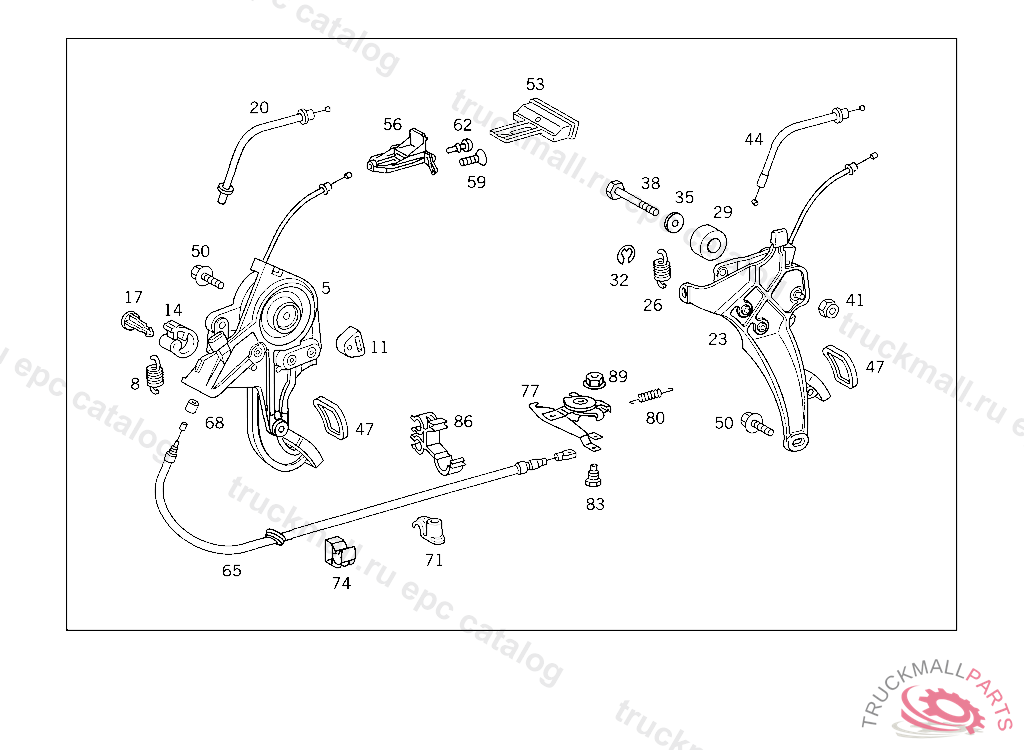

Поз.
Артикул
Описание
5
PARKING BRAKE , FROM MODEL YEAR'96
5
PARKING BRAKE , Replaced By: A1634200684
5
PARKING BRAKE , Replaced By: A2204201284
8
SPRING , FROM MODEL YEAR'96
11
STOP , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
14
DETENT , FROM MODEL YEAR'96
17
PIN , FROM MODEL YEAR'96
20
BRAKE CABLE , F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
23
PARKING BRAKE
26
SPRING
29
DAMPING RING
32
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
35
WASHER COMPRESSED AIR LINE TO BRACKET
38
SCREWM6 X 38
41
NUT OIL TANK TO BRACKET
41
NUT , Replaced By: N913002006009
44
BRAKE CABLE
47
PAD PEDAL
50
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
53
HANDLE FOOT OPERATED PARKING BRAKE,.......I .......I7167 I7167I7167I7167I .......I .......I .......I .......I I A 145273 X 707756 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 145272, X 707755 WITH CODE 800
56
GUIDE ON INSTRUMENT PANEL
59
SCREW COVER TO GLASS, LEFT C-PILLAR M4X12
62
STOP ARMREST
65
BRAKE CABLE FRONT
65
BRAKE CABLE FRONT
68
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
71
CLAMP
74
END PIECE (EXPANSION VALVE) 5 MM
77
ADJUSTER
80
SPRING
83
SCREW FRONT BRAKE CABLE TO BRAKE READJUSTMENT
86
LOCK FRONT BRAKE CABLE
89
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
89
NUT , Replaced By: N913023006001
