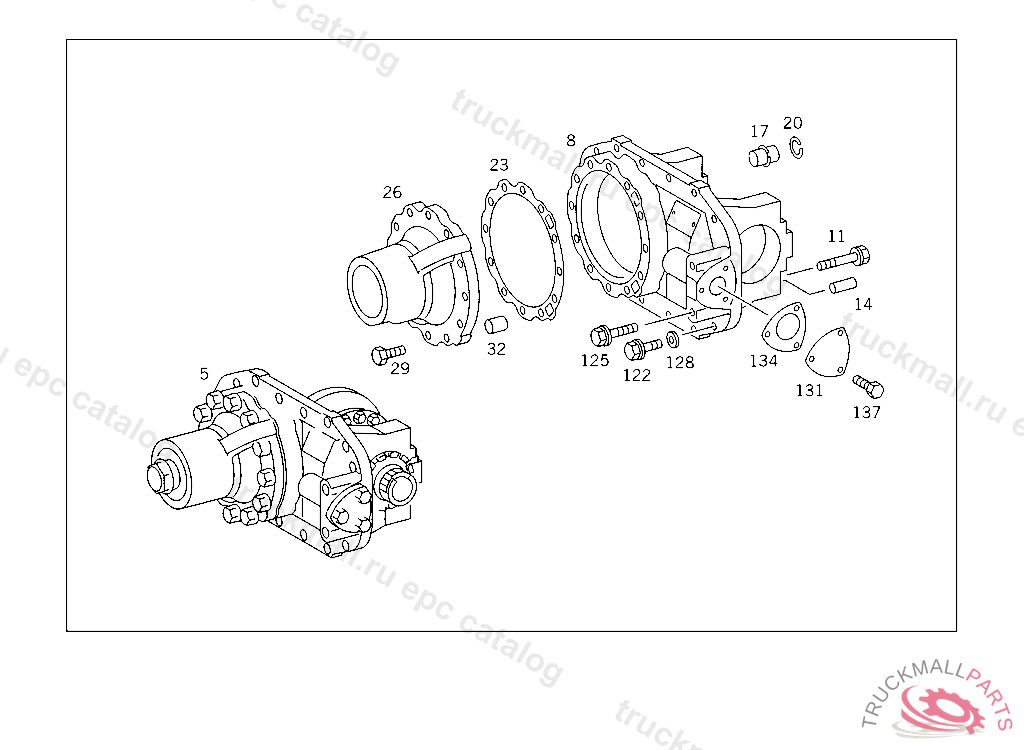

Поз.
Артикул
Описание
5
AXLE HOUSING. DIFFERENTIAL GEAR , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
AXLE HOUSING WITH BEARING CAP
8
AXLE HOUSING , Replaced By: A3953504620
11
SCREW DIFFERENTIAL GEAR BEARING
14
CYLINDRICAL PIN , Replaced By: N000007008101
14
CYLINDRICAL PIN
17
PIN AXLE HOUSING
20
SNAP RING
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.00 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.35 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.20 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.15 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.10 MM
26
HOUSING PINION HOUSING
26
HOUSING , Replaced By: A3463530807, +001N000906020003
29
SCREW , Replaced By: A9429901304
29
SCREW APPARATUS SUPPORT TO FRAME
32
SEAL RING PINION HOUSING TO AXLE HOUSING
122
SCREW BRACKET TO BRACKET
122
SCREW , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3559901704
125
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
125
SCREW PINION HOUSING TO AXLE HOUSING M12X1,5X85
128
SEAL RING STEERING ARM TO STEERING KNUCKLE
131
COVER
134
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
137
SCREW PIPE CLAMP
137
SCREW , Replaced By: N304017008021
999
DIFFERENTIAL PINION
999
SIDE GEAR LEFT AND RIGHT,809388
