Mercedes A1709900112 - Болт

SLK 200 KOMPRESSOR 170.444

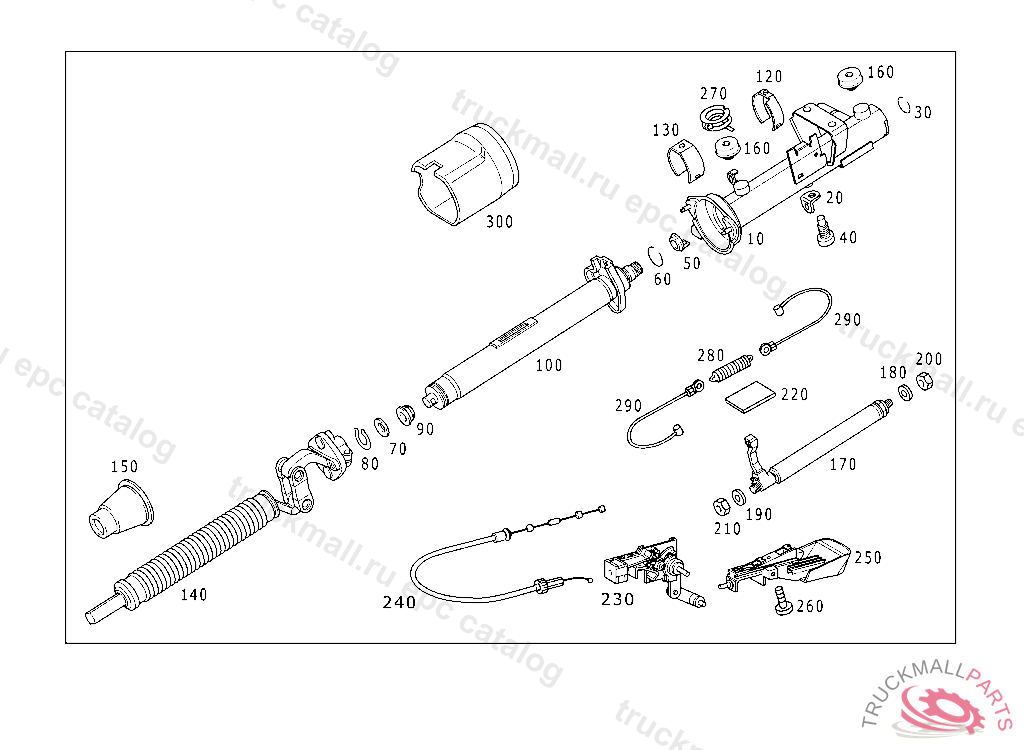

46 STEERING - 080 STEERING COLUMN JACKET TUBE AND STEERING SHAFT,MANUALLY ADJUSTABLE

Поз.
Артикул
Описание
10
A1704600416
STEER. COLUMN JACKET TUBE
20
A1704620239
BRACKET STEER. COLUMN JACKET TUBE
30
A0009946540
SNAP RING , F264121
40
A1404620070
STUD
50
A1404620751
RING , C 014018 J 016700
60
N912009025100
SNAP RING
70
A1269931326
DISC SPRING
80
N900055025401
LOCK RING
90
A1404620151
RING
100
A2024600716
STEER. COLUMN JACKET TUBE INSIDE, WITH STEERING SHAFT, A 519673 F 619720 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE FROM A 519674, F 619721 WITH CODE 807
120
A2024620051
RING
130
A1404620251
RING LOWER STEERING SHAFT TO UPPER STEERING SHAFT
140
A1704600709
STEERING SHAFT BOTTOM
150
A1704620096
BOOT
160
A1404600189
THRUST PIECE INSIDE STEERING COLUMN JACKET TUBE IN OUTSIDE STEERING COLUMN JACKET TUBE
170
A2024620282
CYLINDER
180
A1404620037
BALL CUP MOUNTING PARTS,A 123447
190
A1404620137
BALL CUP MOUNTING PARTS,A 123447
200
N304035008001
NUT
210
A1409900451
NUT MOUNTING PARTS
220
A1704620084
SHIM AT CYLINDER
230
A1704600146
LEVER , FROM MODEL YEAR 1998
240
A1704600030
CABLE , FROM MODEL YEAR 1998
250
A1704600069
HANDLE
260
A1709900112
SCREW
270
A1404620575
WASHER INSIDE STEERING COLUMN JACKET TUBE IN OUTSIDE STEERING COLUMN JACKET TUBE
280
A2029930610
SPRING
290
A2024620090
CABLE
300
A1704600395
COVERING WITH TEMPOMAT
