Mercedes A1684710579 - КОЛЬЦО УПЛОТНИТЕЛЬНОЕ

SLK 200 KOMPRESSOR 170.444

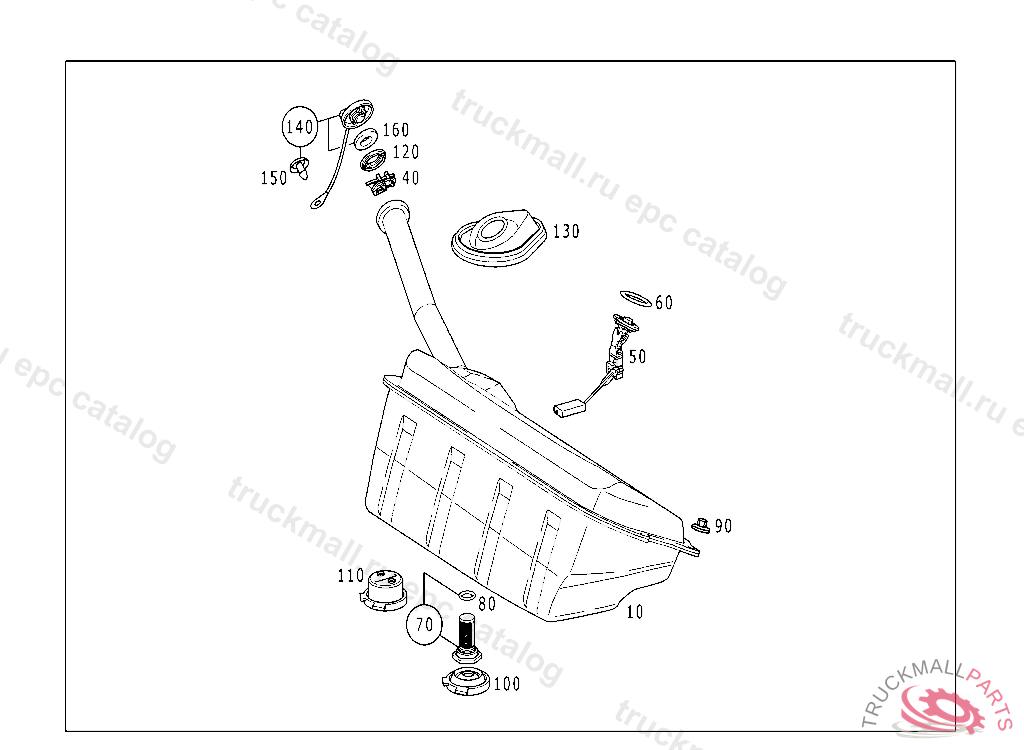

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
10
A1704701101
FUEL TANK
40
A1164700129
FUNNEL , Replaced By: A1694700029
50
A1705421317
SENDER UNIT
50
A1705420917
SENDER UNIT , Replaced By: A1705421317
60
A2104710079
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
70
A2104700106
FUEL STRAINER PARTS KIT
80
A0229970648
SEAL RING , ONLY FOR VEHICLES WITH VEGETABLE OIL METHYLESTER OPERATION (PME)
90
A0019905050
NUT
100
A1244710481
BOOT RIGHT
110
A2104710081
BOOT BODY SEAL LINE TERMINALS
120
A1409973981
GROMMET FILLER NECK
130
A1709970281
GROMMET AT OUTLET PIPE SOCKET VENT VALVE, NOT USED
140
A2204700005
FILLER CAP
150
A0019902392
EXPANSION RIVET. RIVET
160
A1684710579
SEAL RING FILLER CAP
