Поз.
Артикул
Описание
10

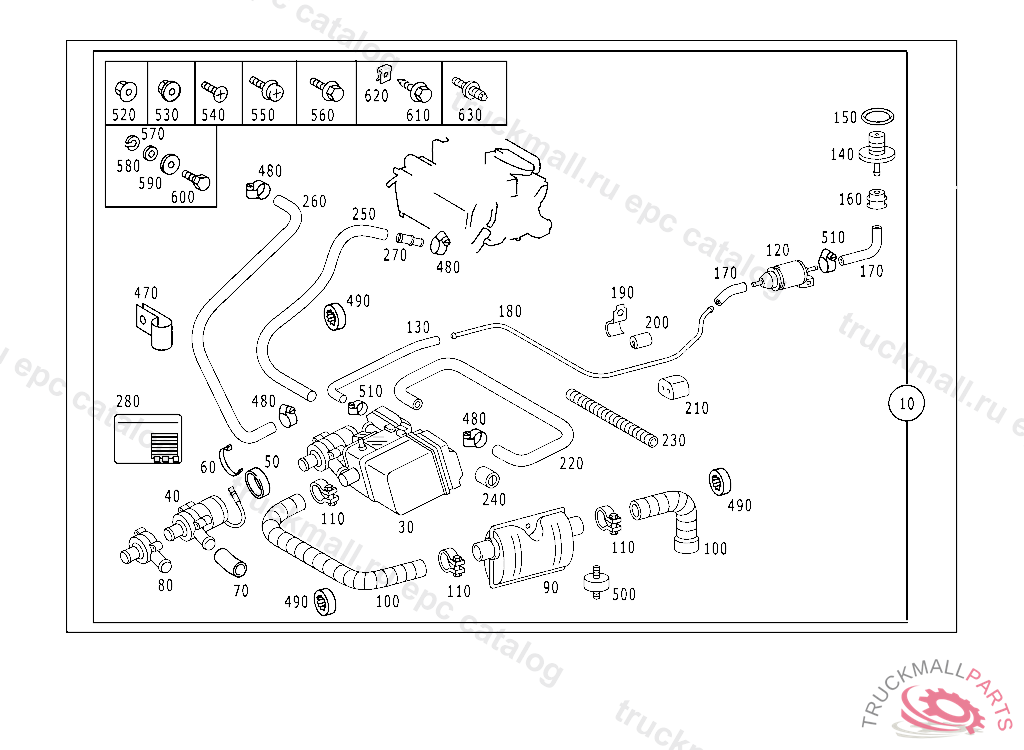

INDEPENDENT HEATING. NDEPENDENT HEATING
30
HEATER UNITBENZIN
40
RECIRCULATING PUMP , F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
50
HOSE CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
60
SPRING CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
70
HOSE CIRCULATION PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
80
LOCKING CAP. PLUG COVER FOR CIRCULATING PUMP
90
MUFFLER
90
MUFFLER
100
PIPELINE , TO BE ADAPTED DURING ASSEMBLY
110
CLAMP EXHAUST PIPE
120
AUXILIARY PUMP FUEL-OIL PUMP
130
HOSE FUEL HOSE
140
CONNECTOR
150
SEAL RING
160
GROMMET
170
HOSE
180
LINE (FUEL LINE)
190
CLAMP FORKED SUPPORT,TOP
200
BUFFER
210
DAMPING STRIP LINES UNDER CROSS MEMBER
220
HOSE20 MM
230
HOSE
240
CAP (INTAKE HOSE)
250
HOSE (INTAKE HOSE)
260
HOSE
270
CONNECTING PIPE18 X 20
270
CONNECTING PIPE20 X 20
270
CONNECTING PIPE17 X 20
280
STICKERBENZIN
470
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
470
CLAMP LINE MOUNTING
470
CLAMP CABLE HARNESS MOUNTING 48/20
470
CLAMP HOSE TO FLANGE AND TO VALVE
470
CLAMP LINE MOUNTING
480
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
480
CLAMP , Replaced By: N916026020001
490
RUBBER MOUNTING BETWEEN HEATER UNIT AND EXHAUST MUFFLER,B 377200
500
RUBBER MOUNTING HEATER UNIT TO WHEEL ARCH, A 209749 F 108104
510
CLAMP LINE MOUNTING
510
CLAMP RISING PIPE,5 4734955 909351
520
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
520
NUT SPRING-LOADED PUSH ROD
530
NUT COVERING TO CAB FIRE WALL
540
SCREW FUSE BOX TO BRACKET
550
SCREW PANELLING TO BUMPER
560
SCREW LICENSE PLATE TO BRACKET
560
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
560
SCREW CABLE HARNESS MOUNTING
570
SPRING WASHER ALTERNATOR CONNECTION D+
570
SPRING WASHER HEATER PLUG CABLE HARNESS
580
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
580
WASHER COMPRESSED AIR LINE TO BRACKET
590
WASHER COMPRESSED AIR LINE TO BRACKET
600
TAPPING SCREW BRACKET TO SUPPORT
610
COMBINATION BOLT BRACKET TO FRAME
620
LOCK NUT MOUNTING, COVER, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019900856
630
STUD30 MM
630
STUD45 MM
