Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

C 180 202.081

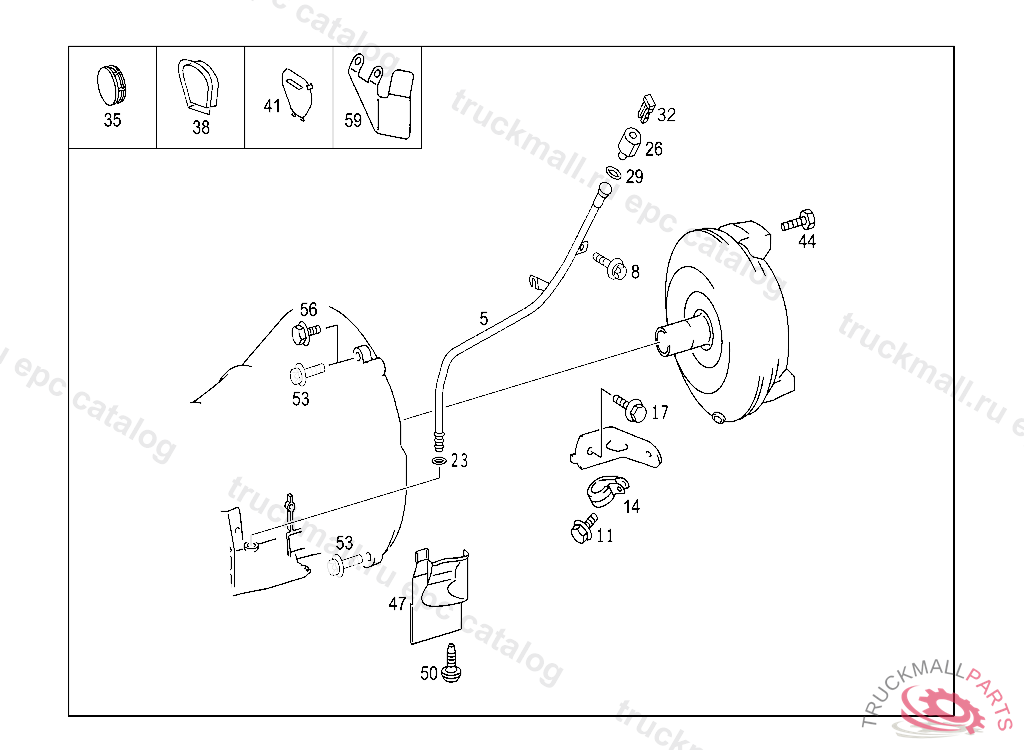

27 AUTOMATIC TRANSMISSION - 230 DETACHABLE TRANSMISSION COMPONENTS,OIL FILLER PIPE,C-CLASS

Поз.
Артикул
Описание
5
A2022700684
OIL FILLER PIPE
8
N910143008000
SCREW SPEED SENSOR TO REAR AXLE
17
N910106006004
HEXAGON HEAD BOLT
23
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
26
A1402700091
COVER OIL FILLER PIPE
29
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
32
A1409910055
DOWEL PIN OIL FILLER PIPE
35
A1110140133
COVER CONVERTER MOUNTING OPENING
38
A1020140033
COVER TO LOCK ASSEMBLY HOLE
44
A1249902201
SCREWM 8X18
47
A1402710288
COVER TRANSMISSION CASE AND OIL PAN
50
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
53
N910143010000
SCREW PLATE TO FRAME M 10X45
53
N000000001354
SCREW BRACKET TO TRANSMISSION CASE,BOTTOM
56
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
