Mercedes A2025010220 - Клипса

C 180 202.081

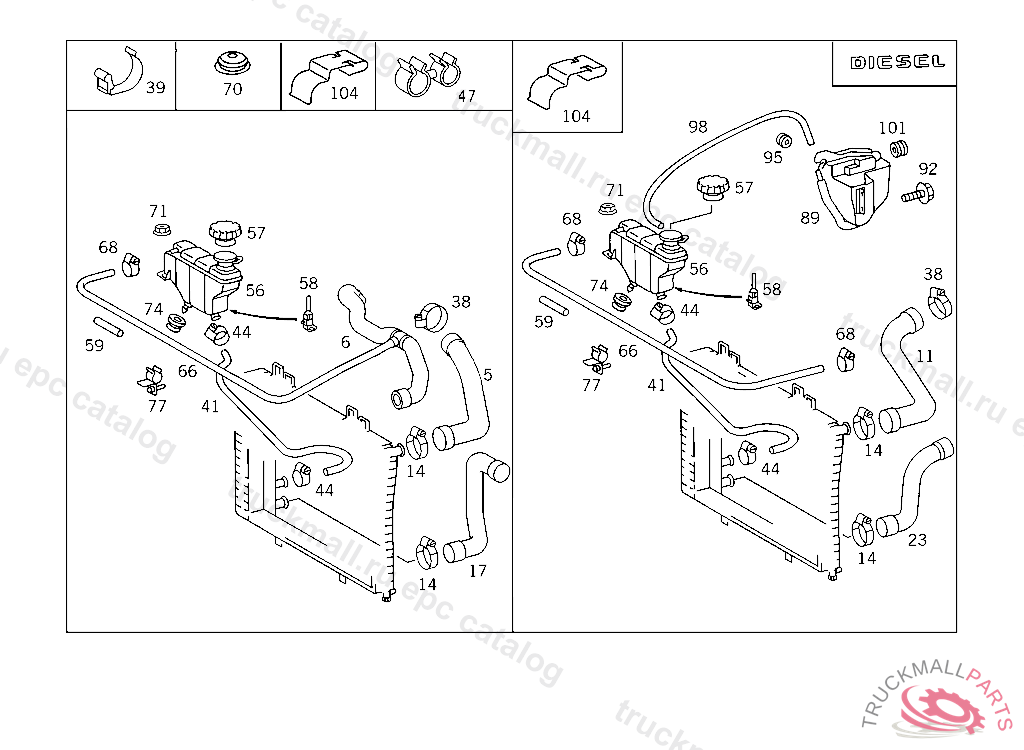

50 RADIATOR - 165 EXPANSION TANK,MOUNTING AND HOSES

Поз.
Артикул
Описание
5
A2025012482
HOSE TOP
14
A0069970590
LOOM TIE
17
A2025012782
HOSE BOTTOM
17
A2025016482
HOSE BOTTOM
41
A2025000075
HOSE
44
A0069970390
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
44
A0069974290
CLAMP HOSE FASTENING 28-35 MM,V 207570
56
A2025000649
TANK EXPANSION TANK
57
A2105010515
RADIATOR CAP
58
A2105450024
SWITCH,AUTOMATIC EXPANSION TANK, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
59
A0229972682
HOSE OVERFLOW 530 MM, ORDER BY THE METER
66
N000000000734
HOSE ENGINE BREATHING 8X15X2550MM, TO BE ADAPTED DURING ASSEMBLY
68
A0059970290
HOSE CLAMP8-16
68
A2029950110
CLAMP HOSE FASTENING 14-16 MM
71
A0019905850
NUT EXPANSION TANK TO WHEELHOUSE
74
A2015040112
RUBBER MOUNTING EXPANSION TANK TO WHEELHOUSE
77
A2025010120
BRACKET BREATHER LINE
104
A2025010220
BRACKET BREATHER LINE
