Mercedes N000094004051 - ШПЛИНТ КРЕПЛЕНИЯ ЦИЛИНДРА

NS 4/11 D-10 749.005

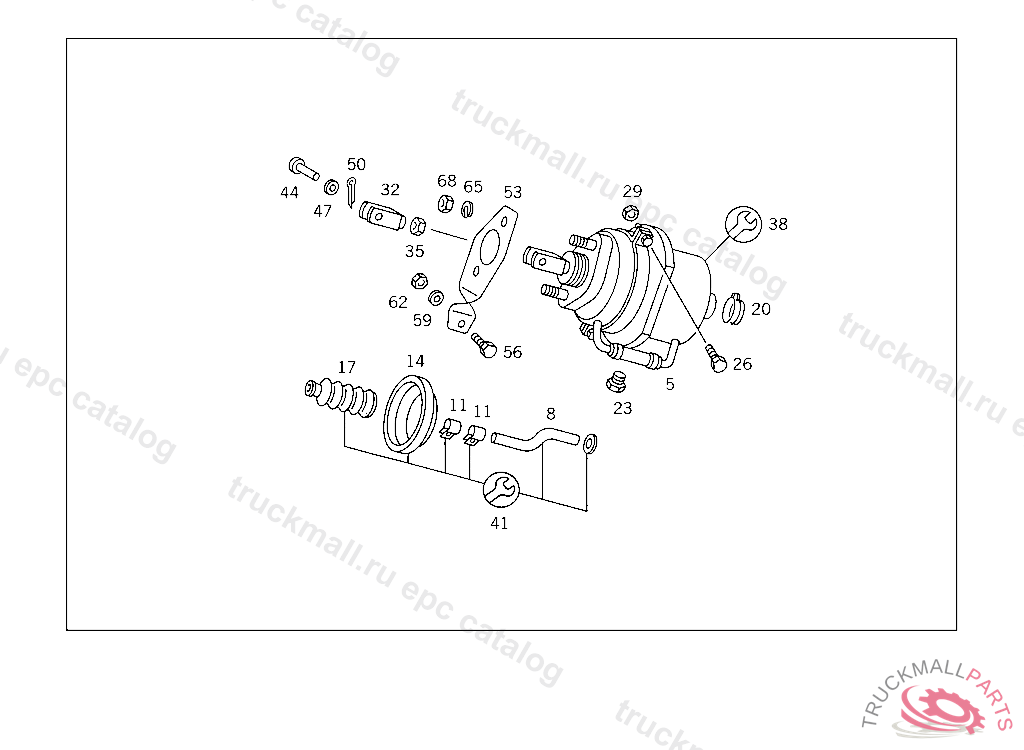

42 REAR BRAKE - 220 BRAKE CYLINDER,ATTACHMENT PARTS

Поз.
Артикул
Описание
5
A0014205924
BRAKE CYLINDERBOSCH
5
A0014201724
BRAKE CYLINDERKNORR
5
A0074202518
BRAKE CYLINDERWABCO
14
A0004311728
DIAPHRAGMWABCO
17
A0004212487
PROTECTIVE CAPWABCO
17
A0004213886
CUPTO 007 420 68 18,WABCO
23
A0004210011
PLUGTO 694 420 71 18/72 18
44
N001444014216
PIN WHEEL CYLINDER TO SLACK ADJUSTER
44
A3619910005
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
44
N001444014209
PIN , Replaced By: A3619910005
47
N000433015005
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
50
N000094004051
COTTER PIN STRAP TO SUPPORT
65
N912004012100
LOCK WASHER FITTING TO BRACKET
68
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
68
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
