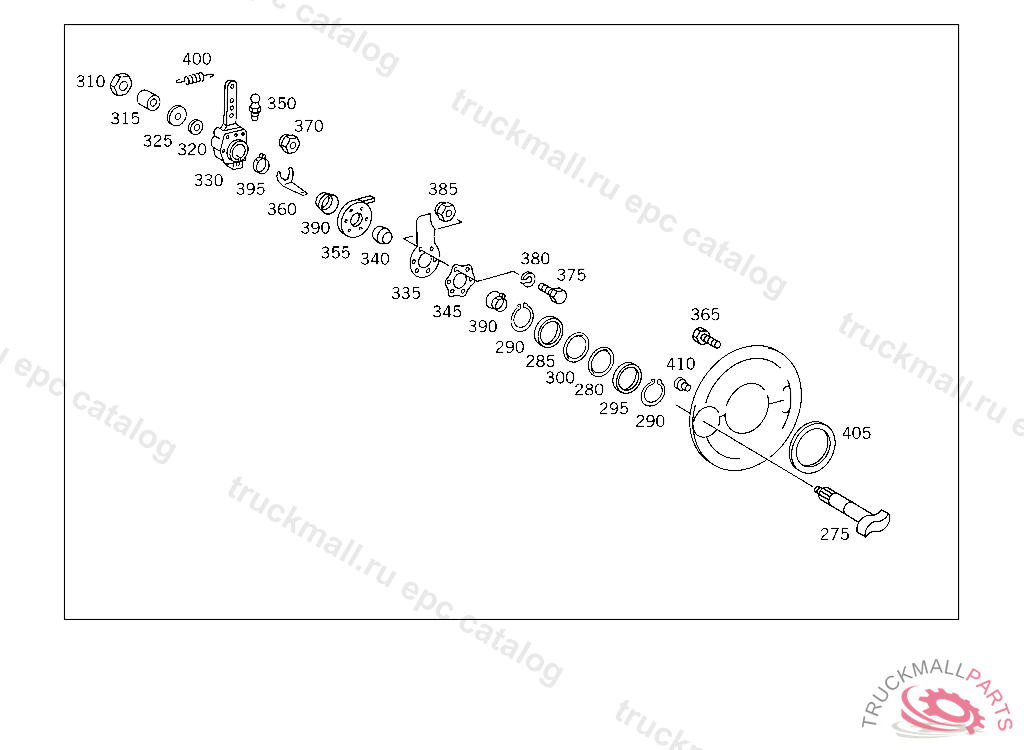

Поз.
Артикул
Описание
275
BRAKE CAMSHAFT LEFT
275
BRAKE CAMSHAFT RIGHT
280
SEAL RING LEFT AND RIGHT BRAKE CAMSHAFTS
280
SEAL RING LEFT AND RIGHT BRAKE CAMSHAFTS
285
SPACER RING LEFT AND RIGHT BRAKE CAMSHAFTS
290
LOCK LEFT AND RIGHT BRAKE CAMSHAFTS
295
SPACER RING LEFT AND RIGHT BRAKE CAMSHAFTS
300
SEAL RING LEFT AND RIGHT BRAKE CAMSHAFTS
310
NUT LEFT AND RIGHT BRAKE CAMSHAFTS
315
SPACER RING SLACK ADJUSTER TO BRACKET
320
WASHER LEFT AND RIGHT BRAKE CAMSHAFTS
325
SEAL RING SLACK ADJUSTER TO BRACKET
330
ADJUSTER LEFT AND RIGHT
335
STOP WASHER BRAKE CAMSHAFT BEARING
340
BUSHING BRAKE CAMSHAFT BEARING
345
BRACKET BRAKE CAMSHAFT BEARING
350
GREASE NIPPLE FROM GRASE NIPPLE TO BRAKE CAMSHAFT
355
BRACKET BRAKE CAMSHAFT BEARING
360
BRACKET SLACK ADJUSTER
365
SCREW PROTECTIVE PLATE TO BRAKE ANCHOR
370
NUT BRACKET TO BRAKE LINKAGE BRACKET
375
SCREW PIPE CLAMP
375
SCREW , Replaced By: N304017008021
380
SPRING WASHER , Replaced By: N000137008212
380
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
385
NUT , Replaced By: N304032008006
385
NUT
390
SEAL RING BRAKE CAMSHAFT BEARING
395
LOCK BRAKE CAMSHAFT BEARING
400
SPRING SLACK ADJUSTER
405
GASKET BRAKE COVER PLATE
410
PLUG READJUSTMENT INSPECTION HOLE
999
VALVE , Replaced By: A0005505355
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
999
TRAILING AXLE FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 749.005
