Mercedes
TRANSMISSION
VG 2400-3W/1,448
750.850 NOT FOR VEHICLE TYPE 949
28 TRANSTER CASE

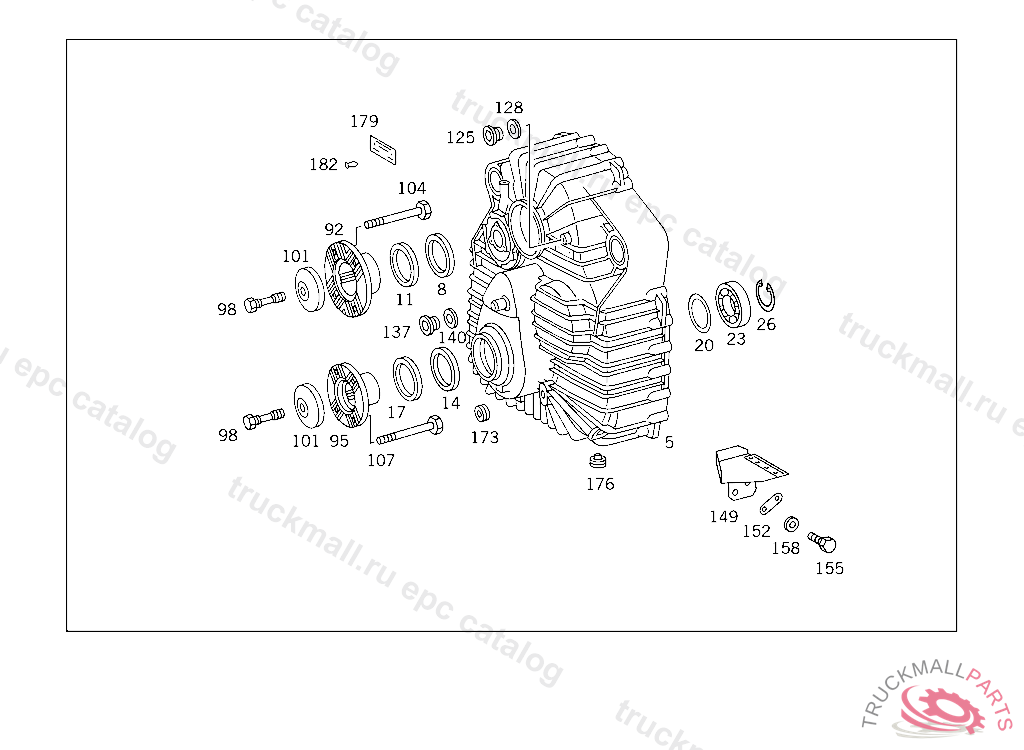

100 TRANSMISSION CASE AND COVER IL. 1

Mercedes N304017006016 - Винт M 6 X 16 8.8

VG 2400-3W/1,448 750.850 NOT FOR VEHICLE TYPE 949

28 TRANSTER CASE - 100 TRANSMISSION CASE AND COVER IL. 1

Поз.
Артикул
Описание
5
A6592810201
HOUSING TRANSFER CASE
5
A6592810001
HOUSING , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO TRANSFER CASE 003432, Replaced By: A6592810201
8
A0179978847
SEAL RING TRANSFER CASE
8
A0179977647
SEAL RING HOUSING,FRONT
11
A0209978747
SEAL RING HOUSING,FRONT
11
A0179977747
SEAL RING , Replaced By: A0209978747, +001A6592820545
11
A0179978547
SEAL RING TRANSFER CASE
11
A0219976047
SEAL RING OUTSIDE
14
A0179978747
SEAL RING , Replaced By: A0089977547
14
A0089977547
SEAL RING TRANSMISSION CASE REAR COVER
14
A0179972547
SEAL RING TRANSMISSION CASE REAR COVER,INSIDE 10MM
17
A0129974447
SEAL RING
17
A0179977947
SEAL RING
17
A0179978647
SEAL RING , Replaced By: A0129974447
23
A0059816725
BALL BEARING , Replaced By: A0039819925
23
A0059816825
BALL BEARING , Replaced By: A0059816725
23
A0059816925
BALL BEARING , Replaced By: A0059816725
23
A0039819925
BALL BEARING REAR PLANETARY CARRIER
26
N000472120000
LOCK RING DISC SUPPORT
92
A6592820545
COUPLING FLANGE
92
A6592820145
COUPLING FLANGE TRANSMISSION 180 MM, UP TO TRANSFER CASE 006681
95
A6592820645
COUPLING FLANGE FRONT AXLE OUTPUT 150 MM
95
A6592800044
COUPLING FLANGE , Replaced By: A6592820645
98
A0079908101
SCREW , Replaced By: A0099908601
98
A3899900219
SCREW , Replaced By: A3899902019
98
A3899902019
SCREW , Replaced By: A9459900019
98
N308676020014
SCREW , Replaced By: N308676020025
98
N308676020025
HEXAGON HEAD BOLT TRAILER COUPLING TO REAR CROSS MEMBER M20X1.5X80
98
N000000000963
HEXAGON HEAD BOLT FLANGE TO MAIN SHAFT M20X1.5X80
98
A0099908601
SCREW COUPLING FLANGE TO TRANSFER CASE M24X85
101
A9452620062
THRUST WASHER , Replaced By: A3892620362
101
A9762620362
THRUST WASHER FOLLOWER FLANGE TO PROPELLER SHAFT 15MM
101
A3892620362
THRUST WASHER FLANGE TO PLANETARY CARRIER
101
A3872621562
THRUST WASHER , Replaced By: A9762620162
104
A0079901401
SCREW , Replaced By: N308676014010
104
N308676014010
HEXAGON HEAD BOLT. SCREW PROPELLER SHAFT TO TRANSMISSION
107
A0079901301
SCREW PROPELLER SHAFT TO REAR AXLES I AND II
125
N000908016008
SCREW PLUG
125
N000908012009
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
125
N000908012003
SCREW PLUG , Replaced By: N000908012009
128
N007603012111
SEAL RING LINE CONNECTION
128
N007603016105
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
137
N000000000648
SCREW PLUG, FILLING HOUSING,BOTTOM
140
N007603010110
SEAL RING PNEUMATIC VALVE
149
A6592800163
OIL COLLECTOR TRANSFER CASE HOUSING
152
A6759940032
LOCK OIL BAFFLE TO INTERMEDIATE FLANGE
155
N304017006016
SCREW PUMP TO BRACKET
158
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
158
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
173
A1869970032
SCREW PLUG , Replaced By: A0009972632
176
A0009972632
SCREW PLUG HOUSING,BOTTOM,183596
176
A0009973432
SCREW PLUG HOUSING,BOTTOM,183596
179
A6755841024
UNIT IDENTIFICATION PLATE P.T.O.
179
A6755840024
UNIT IDENTIFICATION PLATE , Replaced By: A6755841024
182
N001476003007
GROOVED NAIL3X4,TO 000 431 94 14,000 431 96 14
999
A6592810240
BRACKET HOUSING,BOTTOM
