Mercedes A2024270073 - ПРЕДОХРАНИТЕЛЬ

C 250 TURBODIESEL 202.188

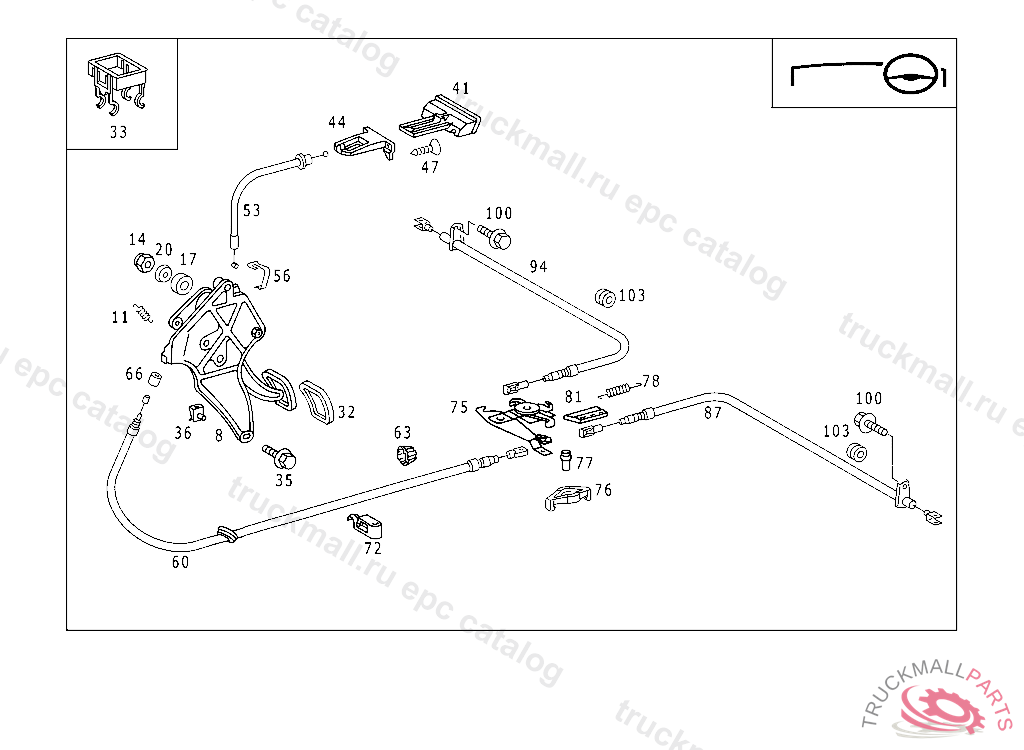

42 BRAKES - 145 FOOT OPERATED PARKING BRAKE IL. 2

Поз.
Артикул
Описание
8
A2024200184
PARKING BRAKE
11
A1249932810
SPRING
14
N913002006009
NUT OIL TANK TO BRACKET
17
A1244270386
DAMPING RING
20
A1244270276
WASHER
32
A1244270382
PAD PEDAL
33
A2024270073
FUSE. LOCK PARKING BRAKE SWITCH
35
N914130008104
SCREW FOOT OPERATED PARKING BRAKE TO FIRE WALL
36
A0019905891
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
41
A2024270620
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
41
A2024270520
HANDLE RELEASE FOR FOOT OPERATED PARKING BRAKE
44
A2024200077
GUIDE UNLOCKING FOOT OPERATED PARKING BRAKE
47
N914151005004
SCREW
53
A1244204185
BRAKE CABLE
56
A1249881278
CLIP
60
A2024203085
BRAKE CABLE FRONT
63
A1244270092
CLAMPING PIECE
66
A0009870232
HOSE FRONT BRAKE CABLE TO PARKING BRAKE 12 MM, ORDER BY THE METER
72
A0009955720
CLAMP FRONT BRAKE CABLE TO TUNNEL
72
A0009954920
CLAMP ,A 181986
75
A2024200338
ADJUSTER
76
A2029880578
CLIP
77
A2024270474
PIN
78
A2029930710
SPRING
81
A2024270212
GUIDE
87
A2024202785
BRAKE CABLE REAR LEFT
94
A2024202885
BRAKE CABLE REAR RIGHT
100
N914125008511
SCREW BRAKE CABLE TO REAR AXLE
103
A1159970681
GROMMET BRAKE CABLE TO REAR AXLE
