Mercedes A6062000023 - ВЕНТИЛЯТОР

C 250 TURBODIESEL 202.188

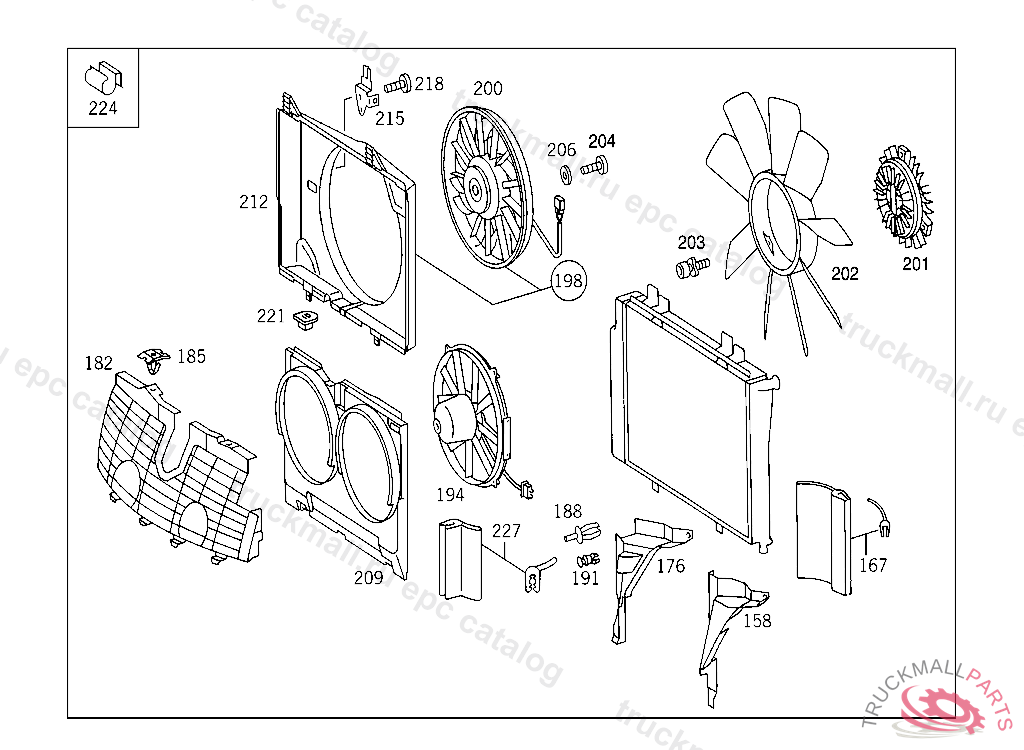

50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 4

Поз.
Артикул
Описание
167
A2025050886
BOOT710 MM
167
A2025052286
BOOT
182
A2025000718
RADIATOR COVERING
185
A2029880142
CATCH AIR INTAKE HOSE TO RADIATOR CROSSM.
191
A1239900092
RIVET
194
A0015001393
BLOWER RIGHT, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
194
A0015001293
BLOWER LEFT, A 436535 F 483847 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 436536, F 483848 WITH CODE 806
202
A6062000023
FAN PLASTIC VERSION TO 606 200 00 22
203
N000000004776
SCREW FAN TO FAN COUPLING M6X14
203
N914020006017
COMBINATION BOLT FAN TO FAN COUPLING M6X14, Replaced By: N000000004776
209
A2025053355
FAN SHROUD
227
A2025052586
BOOT , Replaced By: A2025051986
227
A2025050486
BOOT , Replaced By: A2025051786
227
A2025052786
BOOT406 MM, ORDER BY THE METER
227
A2025051986
BOOT407 MM, ORDER BY THE METER
