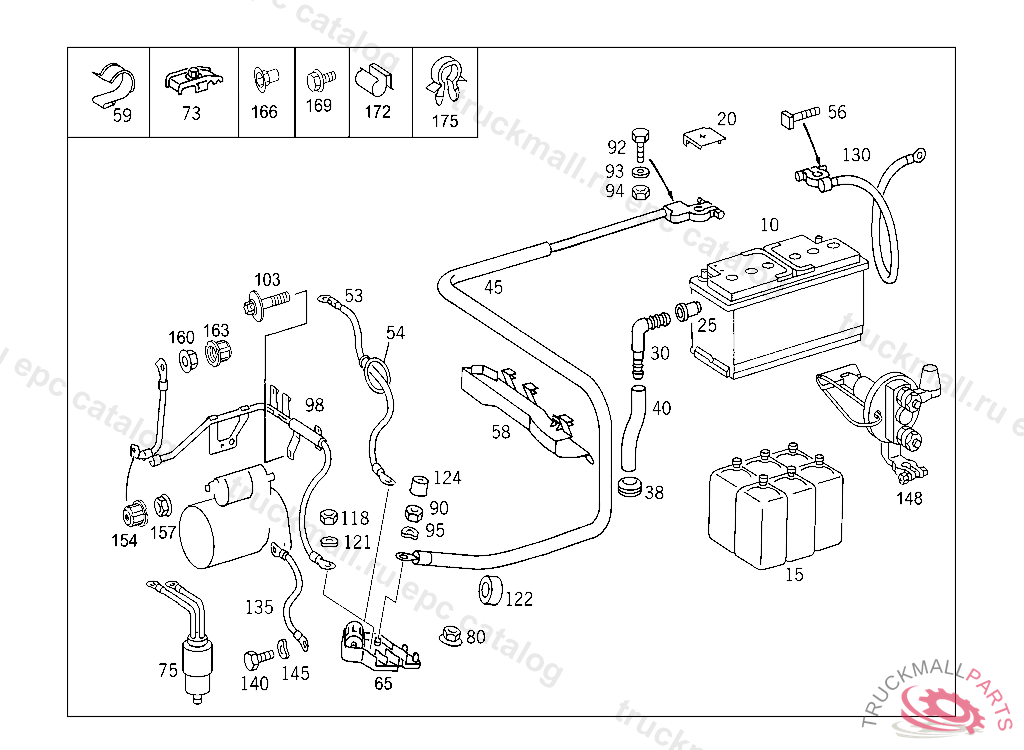

Поз.
Артикул
Описание
10
BATTERY
10
BATTERY FILLED 12V/100 AH
10
BATTERY FILLED 12V/95AH
10
BATTERY FILLED 12V/95AH, Replaced By: A0055411001
15
BATTERY ACID BOTTLE SETTO 001 541 79 01
15
BATTERY ACID BOTTLE SET
20
BOOT POS. POLE
25
STOP PLUG. PLUG ON BATTERY,LATERALLY
30
ELBOW FITTING. DISTRIBUTOR
38
GROMMET BREATHER LINE
40
HOSE , ORDER BY THE METER
45
POSITIVE CABLE FROM BATTERY TO CABLE CONNECTOR, F 894084 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO F 894083 WITH CODE 800
45
POSITIVE CABLE FROM BATTERY TO CABLE CONNECTOR, F 894083 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM F 894084 WITH CODE 809
53
ELECTRIC CABLE , A 809594 F 894083 EXCEPT CODE 800 ALSO INSTALLED IN VEHICLE FROM A 809595, F 894084 WITH CODE 809
54
BOOT POWER SUPPLY
56
SCREW
56
SCREW NEG.POLE
56
SCREW
58
CABLE GUIDE POSITIVE CABLE ON COMPONENT COMPARTMENT WALL
58
CABLE GUIDE , Replaced By: A2025462380
65
CABLE CONNECTOR
65
CABLE CONNECTOR WITH SUPPRESSOR CONDENSER, FOR BATTERY CABLE
73
BRACKET , A 278788 F 245608
80
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
90
NUT BALL PIVOT TO LEVER
90
NUT CABLE HARNESS TO CABLE CONNECTOR
92
SCREW IN CASE OF SUBSEQUENT INSTALLATION
93
WASHER , Replaced By: N000433005304
94
NUT TACHOGRAPH TO BRACKET
95
SPRING WASHER LICENSE PLATE TO BRACKET
98
POSITIVE CABLE STARTING MOTOR AND ALTERNATOR
118
NUT BRACKET TO RETARDER
121
SPRING WASHER STEERING COLUMN BRACKET TO CAB
122
INSULATING HOSE CABLE TO CABLE CONNECTOR, A 357221 F 334421
124
PROTECTIVE CAP. BOOT CABLE TO CABLE CONNECTOR
130
NEG. CABLE FROM BATTERY NEG. POLE TO GROUND
135
GROUND STRAP FROM ENGINE TO FRAME
135
NEG. CABLE , Replaced By: A9015400741
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
145
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
148
SWITCH BATTERY CUT-OFF, NOT USED
154
BOOT CABLE TO ALTERNATOR,TERMINAL 30
157
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
163
BOOT , Replaced By: N913018013201
169
HEXAGON HEAD BOLT
