Поз.
Артикул
Описание

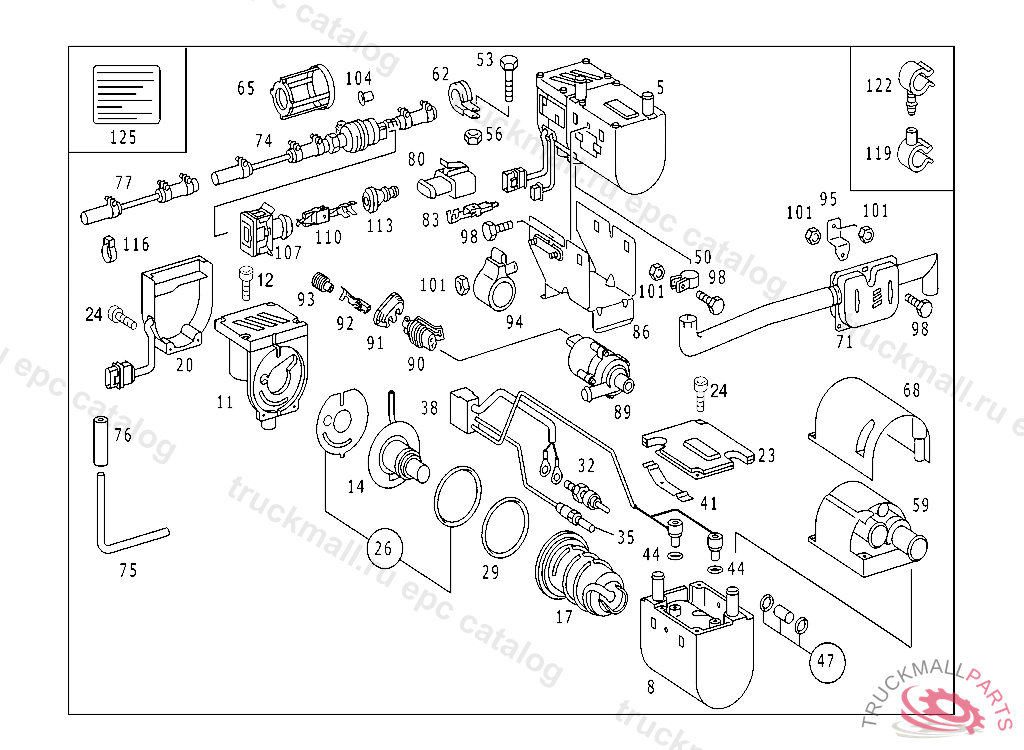

5
HEATER UNITOM601 / OM602
5
HEATER UNIT , Replaced By: A0028309961
5
HEATER UNIT , Replaced By: A0048301361
8
HOUSING
11
BLOWERTO 638 835 12 01
11
BLOWER , Replaced By: A0028303208
12
SCREW
14
PIPE LINE
17
HEAT EXCHANGER , Replaced By: A0038357101
17
HEAT EXCHANGER
20
ZHE ELECTRONICSTO 002 830 30 61
20
CONTROL UNIT
23
COVERTO 638 835 12 01,13 01
24
SCREW SOLENOID VALVE TO VALVE
26
SEAL
29
SEAL RING
32
HEATER PLUG
32
HEATER PLUG , Replaced By: A0008353426
35
TEMPERATURE SENSOR (FEELER),FLAME CONTROL
38
TEMPERATURE SENSOR HEAT EXCHANGER TEMPERATURE SENSOR
41
SPRING
44
SEAL RING
44
SEAL RING , Replaced By: A0169974548
50
CLAMP , Replaced By: A0003380563, +001N000960010023, +001N913004010010
50
CLAMP DRAG LINK END TO DRAG LINK
53
SCREW
56
NUT , Replaced By: N910113010002
71
MUFFLER
74
PUMP METERING PUMP
75
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
76
HOSE
77
PIPE LINE , Replaced By: A0004767326, +001A4639971782
77
HOSE
80
PIN BUSHING HOUSING 8-POLE
83
CONTACT SPRINGTO 657 540 50 10
86
BRACKET
89
RECIRCULATING PUMP"SWF",5/91
89
RECIRCULATING PUMP. PUMP , NOT FOR AUSTRALIA
89
PUMP
90
PIN BUSHING HOUSING
91
CAP
92
PIN BUSHING1.0-1.5 MM2
92
PIN BUSHING0.5-1.0 MM2
93
GASKET BLUE 5.75 MM
94
BRACKET CIRCULATION PUMP
95
BRACKET
98
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M6X10
101
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
101
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
104
STRAINER
107
PLUG INJECTION VALVE
110
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
113
CAP. BOOT ,126372
116
LOOM TIE
119
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
122
CLAMP. EXTENDABLE SPACER BREATHER LINE
122
BRACKET OIL LINES
125
OPERATING PLATE
