Поз.
Артикул
Описание

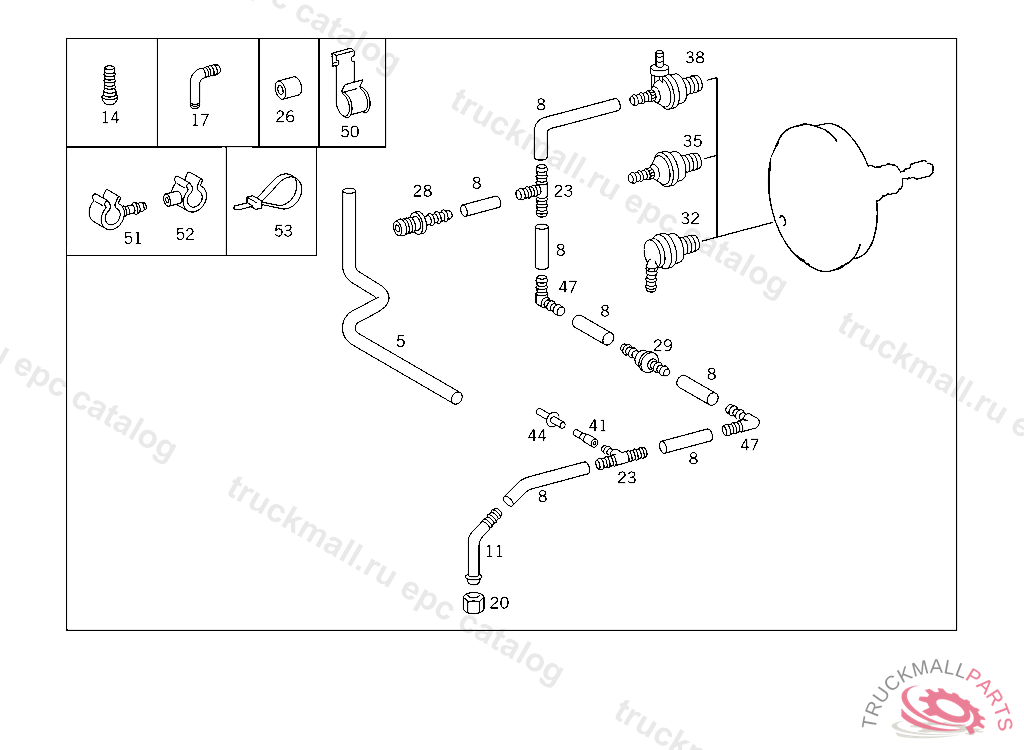

5
LINE VACUUM LINE OM 602
5
LINE VACUUM LINE OM 601 / OM 602
5
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
5
LINE , Replaced By: A0004358382
5
LINE , Replaced By: A0004358382
8
PLASTIC PIPE. HOSE (VACUUM LINE) FROM ENGINE TO BRAKE BOOSTER 440 MM
11
LINE VACUUM LINE, UP TO IDENT NO. 941505 EXCEPT FOR 899081-941503 ONLY WITH OM601/OM602 ENGINE
17
LINE VACUUM LINE, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
20
NUT
23
DISTRIBUTOR VACUUM LINE
23
T-FITTING
28
CONNECTOR BRAKE BOOSTER ASSEMBLY
29
VALVE (CHECK VALVE)
32
VALVE (CHECK VALVE), FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
35
VALVE BRAKE BOOSTER ASSEMBLY
38
VALVE CHECK VALVE WITH FILTER
41
HOSE VACUUM LINE
44
AIR FILTER
44
DASHPOT. STRAINER VACUUM LINE
47
ELBOW FITTING VACUUM LINE
50
CLIP TEMPERATURE-SENSOR AIR-GUIDE HOSE TO FRONT ROOF RAIL
50
CLIP , Replaced By: A0059889178
51
CLAMP
52
BRACKET LINE MOUNTING 11 MM
52
CLAMP , Replaced By: A0004760436
53
LOOM TIE LINE MOUNTING 280 MM
