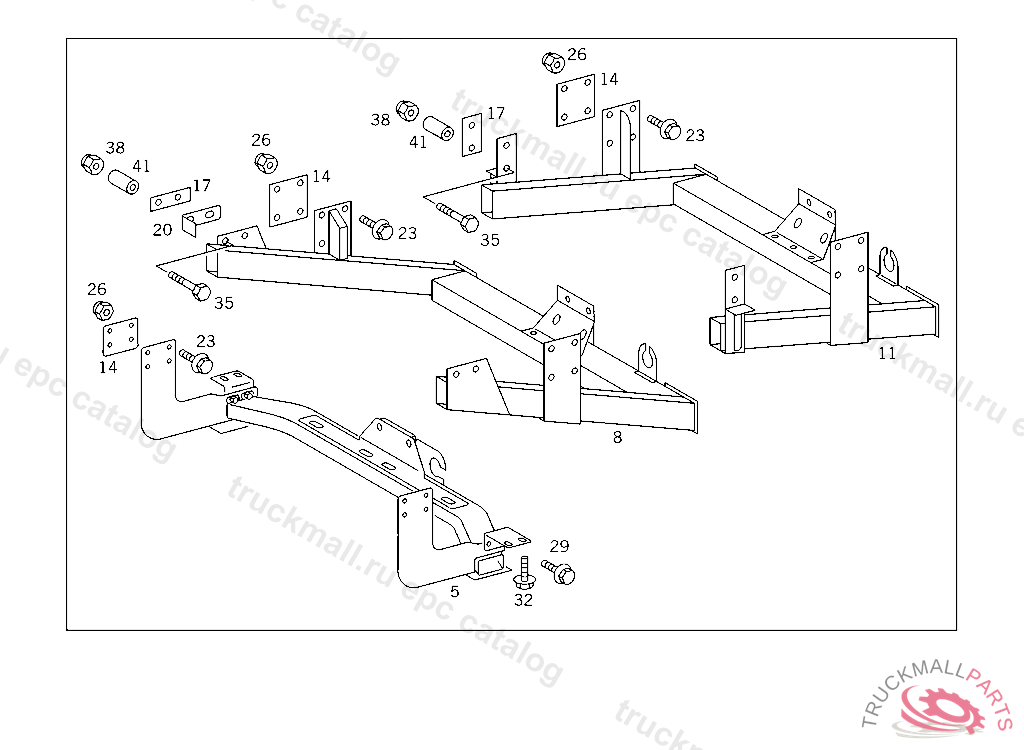

420 TRAILER COUPLING IL. 1
Mercedes A9033150343 - Траверса
SPRINTER 310 D,312 D 903.461
31 FRAME - 420 TRAILER COUPLING IL. 1
Поз.
Артикул
Описание
5
A0003100246
CROSS MEMBER (PARTS KIT) TRAILER COUPLING
8
A9033150343
CROSS STRUT TRAILER COUPLING
14
A9013150021
PLATE 0
17
A9033150038
BASE PLATE AT BRACKET
20
A9033150021
PLATE HITCHING MECHANISM TO SIDE MEMBER
23
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
26
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
29
N910106010008
SCREW. HEXAGON HEAD BOLTM10X25
32
N910105010001
HEXAGON HEAD BOLT RESONATOR TO TRANSMISSION CASE,K 138633
35
N910105010004
SCREW AT FRAME
38
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
41
A9033110088
SLEEVE HITCHING MECHANISM TO SIDE MEMBER
