Поз.
Артикул
Описание

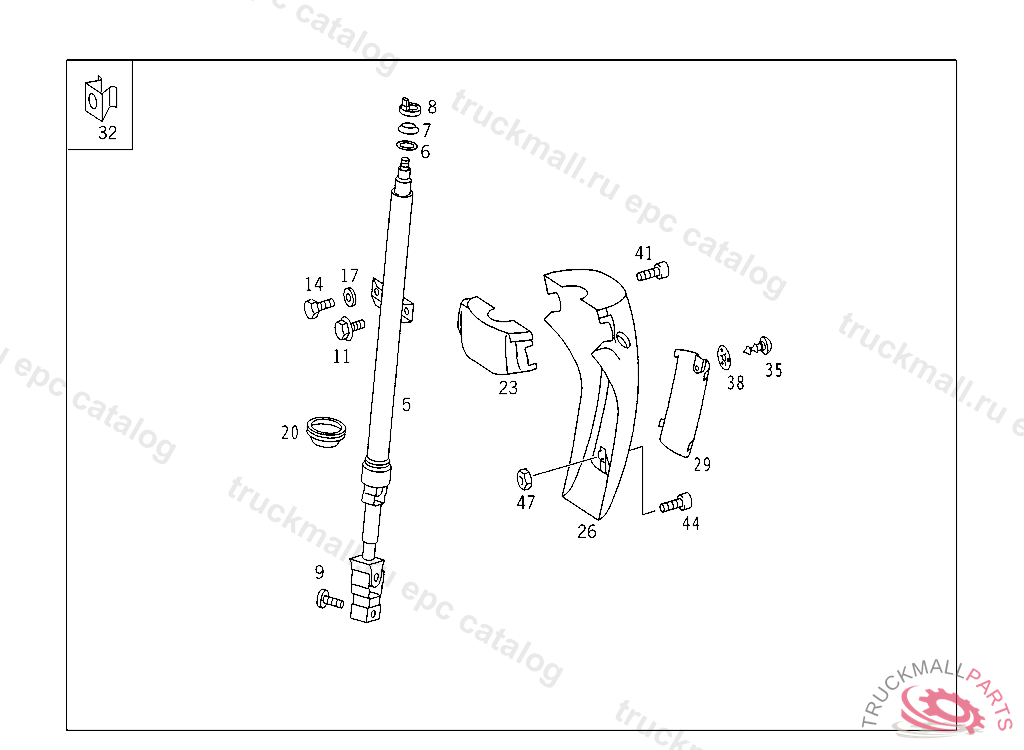

5
STEERING COLUMN
5
STEERING COLUMN
5
STEERING COLUMN
5
5
5
5
5
5
5
6
THRUST WASHER
7
SPACER RING
8
SUPPORTING RING
9
SCREW
11
SCREW , Replaced By: A0004622271
11
SCREW (BREAKAWAY SCREW) STEERING SHAFT BEARING TO CAB
14
SCREW PIPE CLAMP
17
WASHER EXHAUST MUFFLER TO STRAP
20
SEAL RING STEERING COLUMN TO FRONT PANEL AND TO PEDAL BEARING BRACKET
23
SHELL STEERING COLUMN, STATE COLOR WHEN ORDERING: RED60, BLUE61
26
SHELL
29
SHELL , STATE COLOR WHEN ORDERING: RED60, BLUE61
32
CLIP CABLE DUCT COVER TO 001 988 47 42
35
FASTENER
38
WASHER CABLE DUCT COVER
41
BOLT. SCREW LINE MOUNTING
41
SCREW PANELLING TO STEERING COLUMN 4,2X9,5
44
SCREW , Replaced By: N007985005532
44
SCREW CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP. M 5X35
47
NUT BRACKET TO FIRE WALL
47
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
