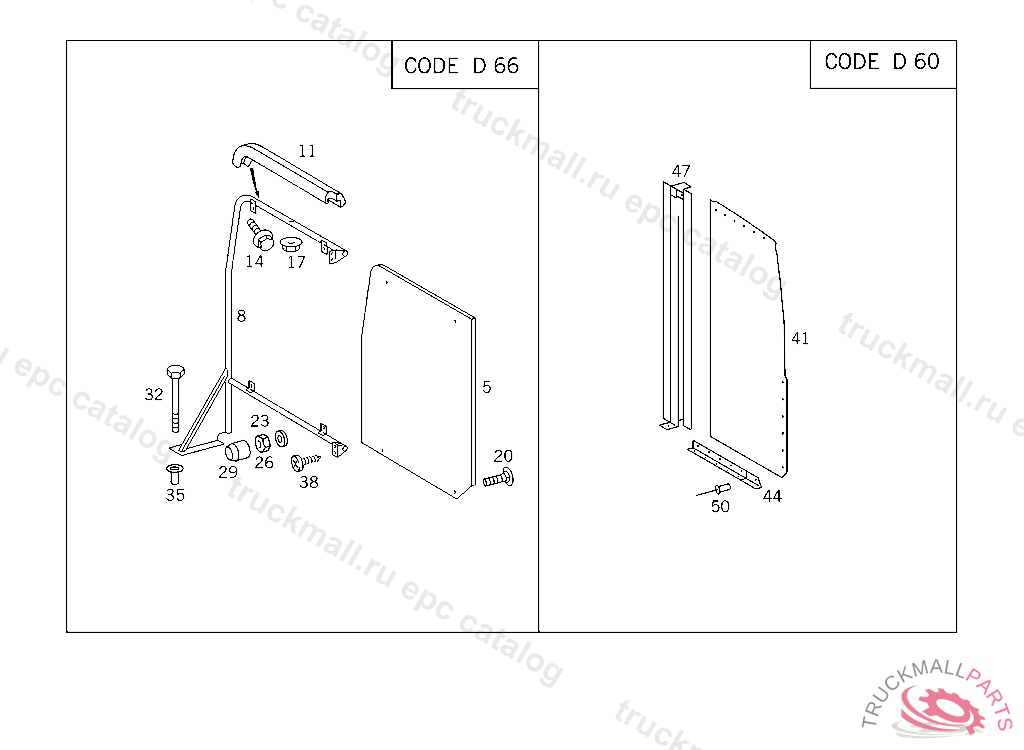

Поз.
Артикул
Описание
5
PARTITION PANEL SEMI-HIGH WITH CENTER PASSAGE
8
GRIP RAIL LEFT
8
GRIP RAIL RIGHT
11
PAD LEFT
11
PAD RIGHT
14
SCREW , Replaced By: N910105005000
14
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
17
NUT BOOT
20
SCREW HOUSING TO INSTRUMENT PANEL
23
WASHER COMPRESSED AIR LINE TO BRACKET
23
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
26
NUT OIL TANK TO BRACKET
29
PROTECTIVE CAP. PROTECTION CAP PARTITION PANEL TO GRIP RAIL
32
SCREW
35
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
38
SHEET METAL SCREW BRACKET TO CAB,5 906887
38
TAPPING SCREW PARTITION PANEL TO BODY
41
PARTITION PANEL , Replaced By: A9017110401
41
PARTITION PANEL , Replaced By: A9017110501
41
PARTITION PANEL , Replaced By: A9017111301
41
PARTITION PANEL , Replaced By: A9017111401
41
PARTITION PANEL MID-LEFT/RIGHT, HIGH ROOF, TO BE ADAPTED DURING ASSEMBLY
41
PARTITION PANEL MID LEFT/RIGHT,HIGH ROOF IN CASE OF SLIDING-TYPE LOADING DOOR
41
PARTITION PANEL MID LEFT/RIGHT,HIGH ROOF IN CASE OF SLIDING-TYPE LOADING DOOR, TO BE ADAPTED DURING ASSEMBLY
41
PARTITION PANEL MID-LEFT/RIGHT, LOW ROOF
44
ANGLE RIGHT
44
ANGLE LEFT
47
STIFFENING LEFT, LOW ROOF
47
STIFFENING RIGHT, HIGH ROOF
47
STIFFENING LEFT, HIGH ROOF
47
STIFFENING RIGHT, LOW ROOF
50
RIVET BINDING RAIL TO PLATFORM SIDE PANEL 4.8 X 9.5 MM
50
RIVET , Replaced By: A0029906297
50
RIVET , Replaced By: A0039903897
50
RIVET PARTITION PANEL TO BODY 4.8X6,5 MM
50
RIVET ,4 876244
50
RIVET GRIP RAIL MOUNTING
50
RIVET PARTITION PANEL TO BODY 4.8X10 MM
