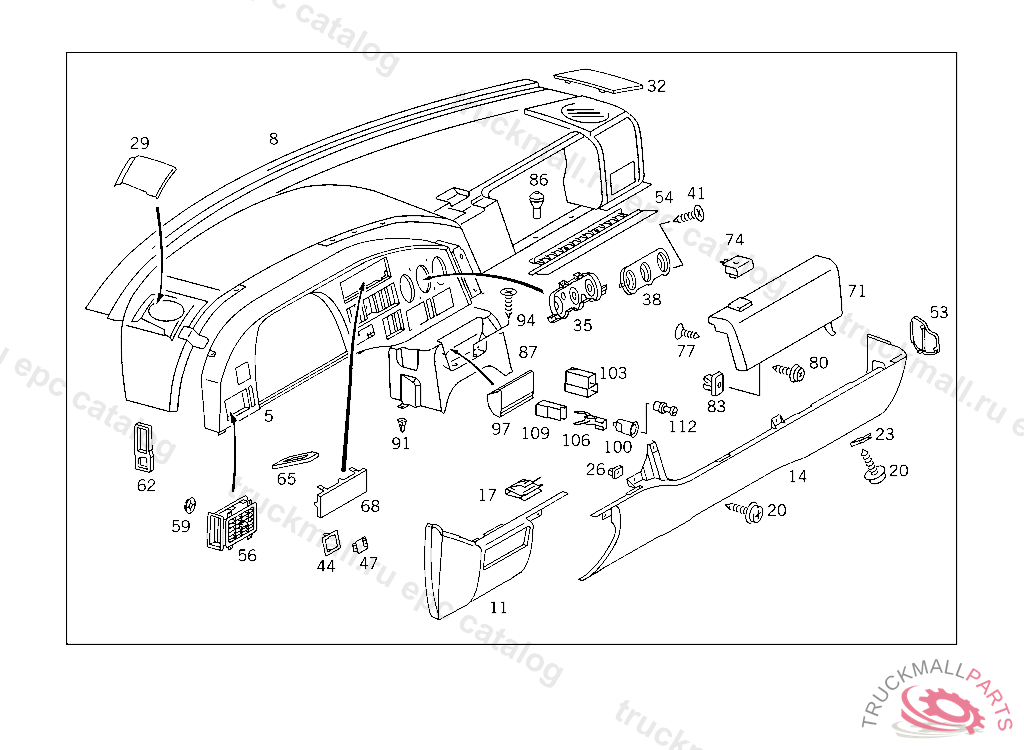

Поз.
Артикул
Описание
5
COVER INSTRUMENT PANEL
5
8
8
8
COVERING INSTRUMENT PANEL,TOP
8
11
PANELLING INSTRUMENT PANEL,BOTTOM LEFT
11
14
PANELLING INSTRUMENT PANEL,BOTTOM RIGHT
14
17
CLIP AT COVERING, E 05743220081014
17
CLIP INSTRUMENT PANEL ORNAMENTAL COVER
20
SHEET METAL SCREW TRANSMISSION TUNNEL
20
COMBINATION BOLT
23
LOCK , Replaced By: A0049944545
23
LOCK , Replaced By: A1299940845
23
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
26
CLIP PANELLING TO INSTRUMENT PANEL
29
29
COVERING LOUDSPEAKER OPENING,LEFT
32
COVERING LOUDSPEAKER OPENING,RIGHT
32
35
COVERING HEATING AND VENTILATION CABLE CONTROL
38
PLATE HEATING AND VENTILATION CABLE CONTROL
41
SCREW COVERING TO INSTRUMENT PANEL
44
FRAME REARVIEW MIRROR OPERATION
47
COVER REARVIEW MIRROR OPERATION
53
53
COVERING LOWER PANELLING
54
54
56
56
NOZZLE LEFT AND RIGHT
56
NOZZLE RIGHT
56
NOZZLE CENTRAL
56
59
LOCK , Replaced By: A0009945845
59
LOCK , Replaced By: N912010005000
62
SEAL LEFT HEATING DUCT
62
SEAL RIGHT HEATING DUCT
65
SEAL FOOT NOZZLE
68
COVERING APERTURE FOR RADIO
71
GLOVE COMPARTMENT LID
71
GLOVE COMPARTMENT LID KEY LOCKING
71
71
74
KNOB
74
KNOB
77
SCREW COVERING TO INSTRUMENT PANEL
80
COMBINATION BOLT
83
LOCK , Replaced By: A0049944545
83
LOCK , Replaced By: A1299940845
83
CLIP-TYPE NUT BRACKET TO RELAY PLATE, A 994528 F 110300
86
RUBBER BUMPER , V 00000120040402
87
PANELLING WINDOW SILL,CENTRAL
91
TREENAIL PLUG HOUSING TO FIRE WALL
91
TREENAIL BRACKET TO FIRE WALL, Replaced By: A6399980185
91
TREENAIL BRACKET TO FIRE WALL
94
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
97
ASHTRAY FRONT
100
FITTING MOLD CIGAR LIGHTER
103
PIN BUSHING HOUSING BIPOLAR
106
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
106
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
106
PIN BUSHING , Replaced By: A0075458226
109
BOOT PIN BUSHING
112
CIGAR LIGHTER AT INSTRUMENT PANEL 12V
