Mercedes A9043320402 - Кулак поворотный

SPRINTER 410 D,412 D 904.462

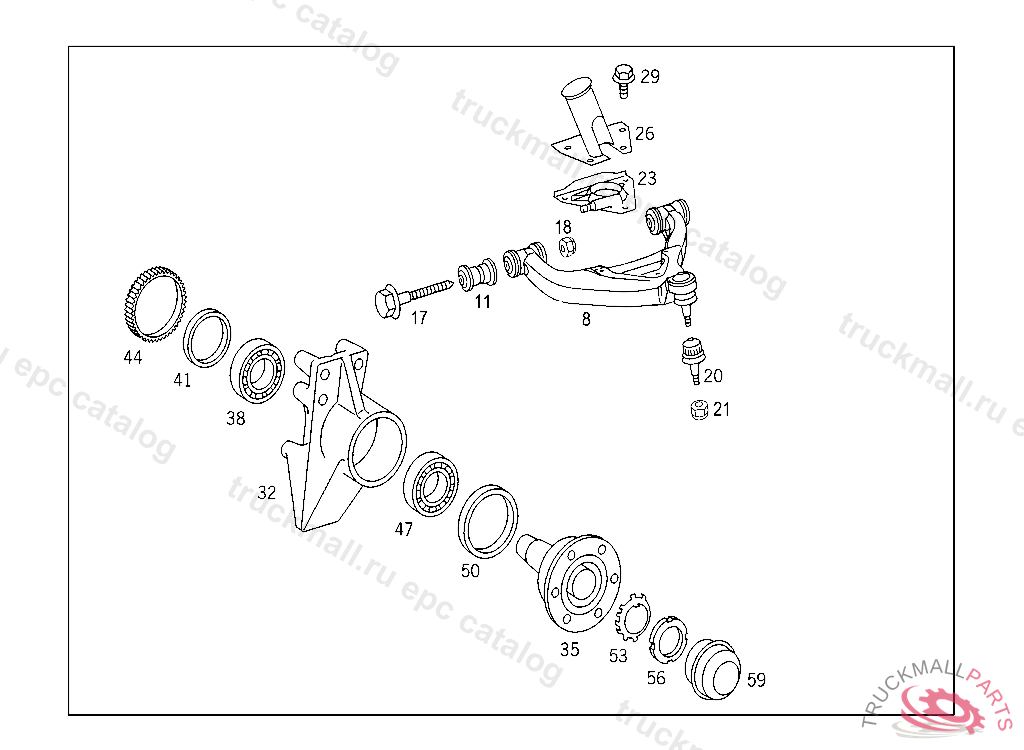

33 FRONT AXLE - 032 STEERING KNUCKLE AND CONTROL ARM

Поз.
Артикул
Описание
8
A9043301307
TRANSVERSE CONTROL ARM RIGHT
8
A9043301207
TRANSVERSE CONTROL ARM
11
A9013330214
BEARING TRANSVERSE CONTROL ARM
17
A9019900312
SCREW CONTROL ARM TO FRONT AXLE
18
N913023014003
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
18
N000000005662
NUT SUPPORT TO FRAME
20
A9013331027
JOINT , Replaced By: A9013331327
20
A9013331327
JOINT
21
A0019900050
HEXAGON NUT LOWER JOINT TO STEERING KNUCKLE
23
A9013220109
PLATE SPRING STOP,LEFT
23
A9013220209
PLATE SPRING STOP,RIGHT
26
A9013310046
STOP SPRING STOP
29
N000000000265
HEXAGON HEAD BOLT FRONT SUPPORT, AT TRANSMISSION M10 X 30
29
N910106010039
HEXAGON HEAD BOLT. SCREW , Replaced By: N000000000265
32
A9043320302
32
A9043320501
32
A9043320402
STEERING KNUCKLE RIGHT
32
A9043320601
STEERING KNUCKLE LEFT
35
A9023340201
WHEEL HUB
38
A0069814505
TAPERED ROLLER BEARING DRIVE SHAFT
41
A0159970147
SEAL RING , 309.000-026 003058-004733 309.070-091 000635-000939 309.100-126 048632-078583 309.107-191 005153-010916 FROM IDENT NO.,SEE STANDARD EQUIPMENT
44
A9023340115
RING ANTI-LOCK BRAKING SYSTEM
47
A0099814805
TAPERED ROLLER BEARING OUTSIDE
50
A0159977947
SEAL RING OUTSIDE
53
A4609940112
LOCK
56
N070852030000
NUT OIL FILLER NECK
59
A1083340025
HUB CAP
