Mercedes A0229972248 - Кольцо уплотнительное щупа АКПП

SLK 350 171.458

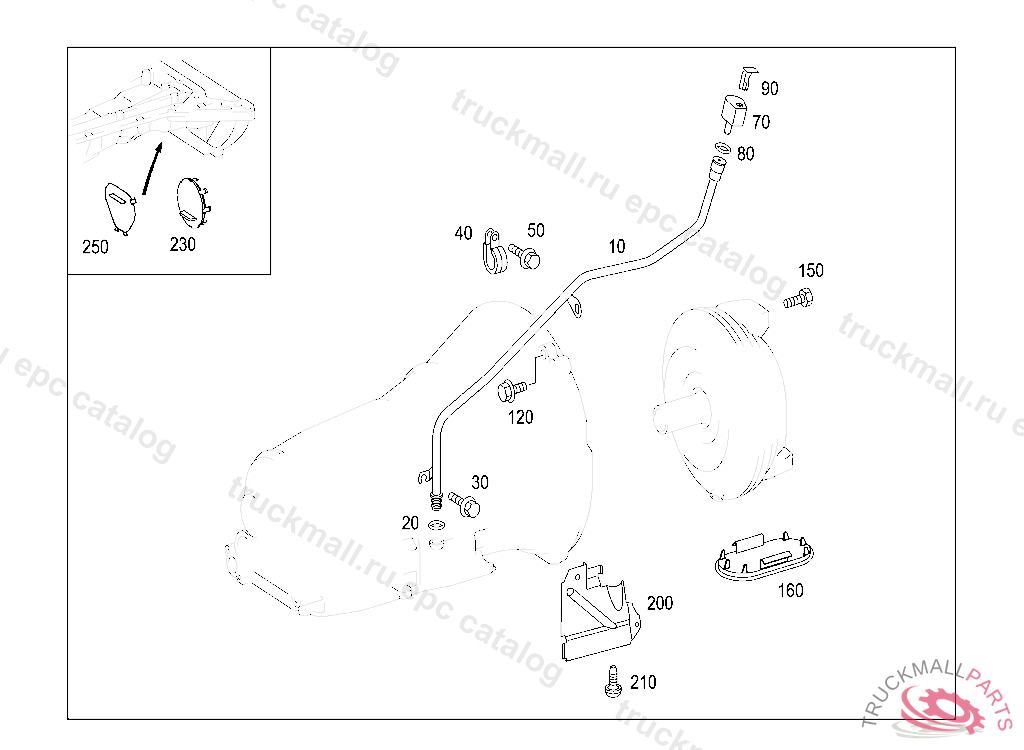

27 MERCEDES-BENZ AUTOMATIC TRANSMISSION - 125 ATTACHED PARTS FOR TRANSMISSION, OIL FILLER PIPE

Поз.
Артикул
Описание
20
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
30
N910106006004
HEXAGON HEAD BOLT
70
A1402700091
COVER OIL FILLER PIPE
80
A0229972248
SEAL RING COVER OIL FILLER PIPE 11.5X2.5
90
A1409910055
DOWEL PIN OIL FILLER PIPE
120
N910143010000
SCREW PLATE TO FRAME M 10X45
150
A0109904904
CAPSCREW W HEXAL. DRIVE DRIVE CONNECTION, ENGINE TO CONVERTER M10X34
160
A0009983121
CAP CAP ASSEMBLY OPENING IN OIL PAN
200
A2202710188
COVER AT TRANSMISSION CASE, F 45787220091213
210
N000000001114
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
210
A0019844329
BOLT. SCREW CAN NEUTRAL POINT ON EQUIPMENT PLATE M 6X15/10
230
A2720110032
COVER ACCESS COVER OF CRANKCASE FOR CONVERTER
